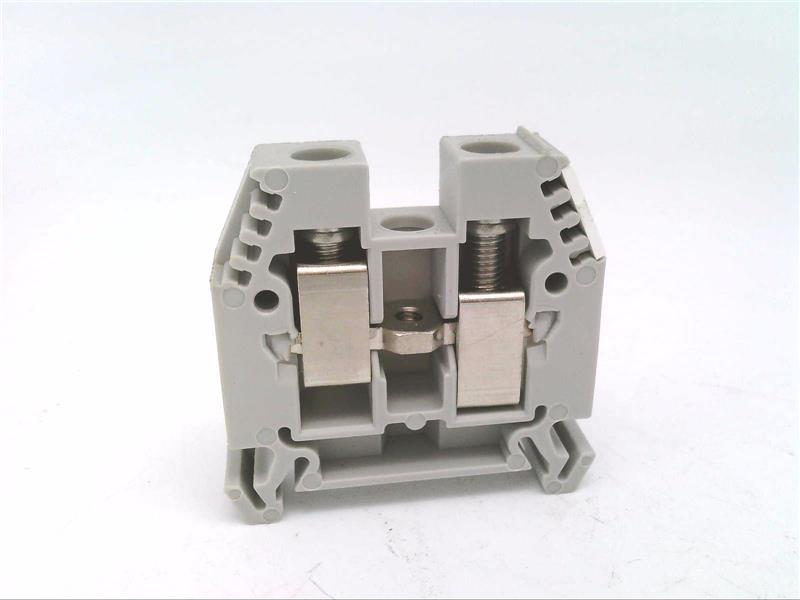

Sprecher and Schuh V7-W16S Feed-through Terminal Block 76 A 800 V (16 mm)

Product Description

Sprecher and Schuh V7-W16S is a feed-through terminal block rated 76 A and 800 V for DIN rail mounting. It is a single-level terminal with two conductor/clamp positions, accepts conductors from 2.5 to 16 mm, and requires a 13 mm wire strip length. The block mounts on a 35 mm top hat DIN rail, has a nominal tightening torque of 2.1 Nm, and an operating temperature range of -40 to 90 C.

• Single-level feed-through terminal with two clamp positions and screw connection
• Rated 76 A and 800 V; conductor size 2.5–16 mm, wire strip length 13 mm; nominal torque 2.1 Nm
• DIN rail (35 mm top hat) mounting; dimensions 11 mm x 47.6 mm x 41 mm; operating/insulation range -40 to 90 C

Product Highlights

Single-level screw feed-through terminal block for 35 mm DIN rail with 16 mm conductor capacity.

Product Information

Standard Information

• Brand: SPRECHER & SCHUH
• Manufacturer Part Number: V7-W16S
• Country of Origin: Dominican Republic

Technical Specifications

• Brand: Sprecher and Schuh
• Manufacturer: Sprecher and Schuh
• Manufacturer Part Number: V7-W16S
• Product Range: V7
• Component Type: Feed-through terminal block
• Connection Type: Screw connection
• Rated Current: 76 A
• Rated Voltage: 800 V
• Number of Levels: 1
• Clamp Positions per Level: 2
• Conductor Size: 2.5-16 mm (note: likely mm²; see notes)
• Wire Strip Length: 13 mm
• Nominal Tightening Torque: 2.1 Nm
• Mounting Type: DIN rail (35 mm top hat)
• Width: 11 mm
• Height: 47.6 mm
• Depth: 41 mm
• Operating Temperature: -40 to 90 C
• Insulation Temperature: -40 to 90 C
• Package Quantity: 50
• Weight: 0.06 lbs
• Colour: Grey
• Country of Origin: Dominican Republic
