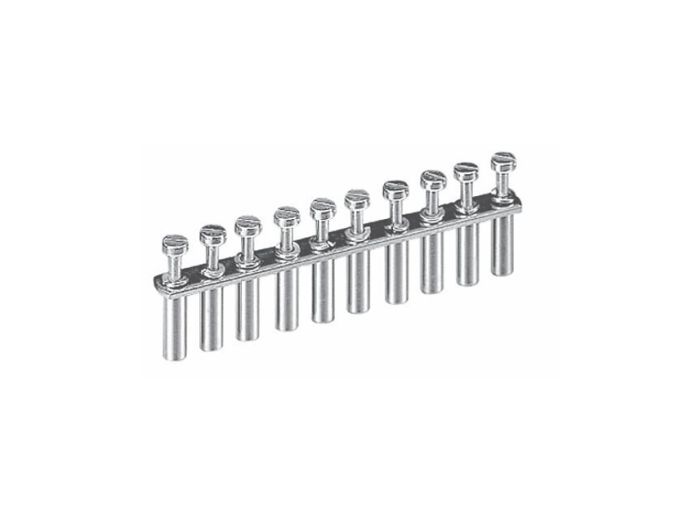

Sprecher and Schuh V7-CJ5-10 Center Jumper 10 Pos (Straight)

Product Description

Sprecher and Schuh V7-CJ5-10 is a center jumper for the V7 series terminal block system. The V7-CJ5-10 provides a 10-position male screw-terminal link with a 2.5 mm pitch and 2.5 mm2 conductor capacity; it mounts by screwing into the threaded center hole of V7-W feed-through blocks. The jumper is uninsulated, straight-bodied and RoHS compliant for electrical distribution across adjacent terminals.

• 10-position center jumper, male configuration, screws into threaded center hole
• Screw termination with 2.5 mm pitch and 2.5 mm2 conductor capacity
• Uninsulated straight body; compatible with V7-W series; RoHS compliant; approvals include CE, CSA, cUR, IEC, UR

Product Highlights

10-position uninsulated center jumper for V7-W series; screw terminals; 2.5 mm pitch, 2.5 mm2 capacity

Product Information

Standard Information

• Brand: SPRECHER & SCHUH
• Manufacturer Part Number: V7-CJ5-10
• Country of Origin: Dominican Republic

Technical Specifications

• Brand: Sprecher and Schuh
• Manufacturer Part Number: V7-CJ5-10
• Description: Center jumper for V7 series terminal blocks
• Type: Center jumper, uninsulated
• Number of Positions: 10
• Pitch: 2.5 mm
• Conductor Capacity: 2.5 mm2
• Termination Type: Screw terminal
• Body Orientation: Straight
• Configuration: Male
• Compatibility: V7-W series feed-through terminal blocks
• Mounting: Screws into threaded hole in center of block
• RoHS Compliance: Yes
• Approvals: CE; CSA; cUR; IEC; UR
• Unit of Measure: Each
• Country of Origin: Dominican Republic
