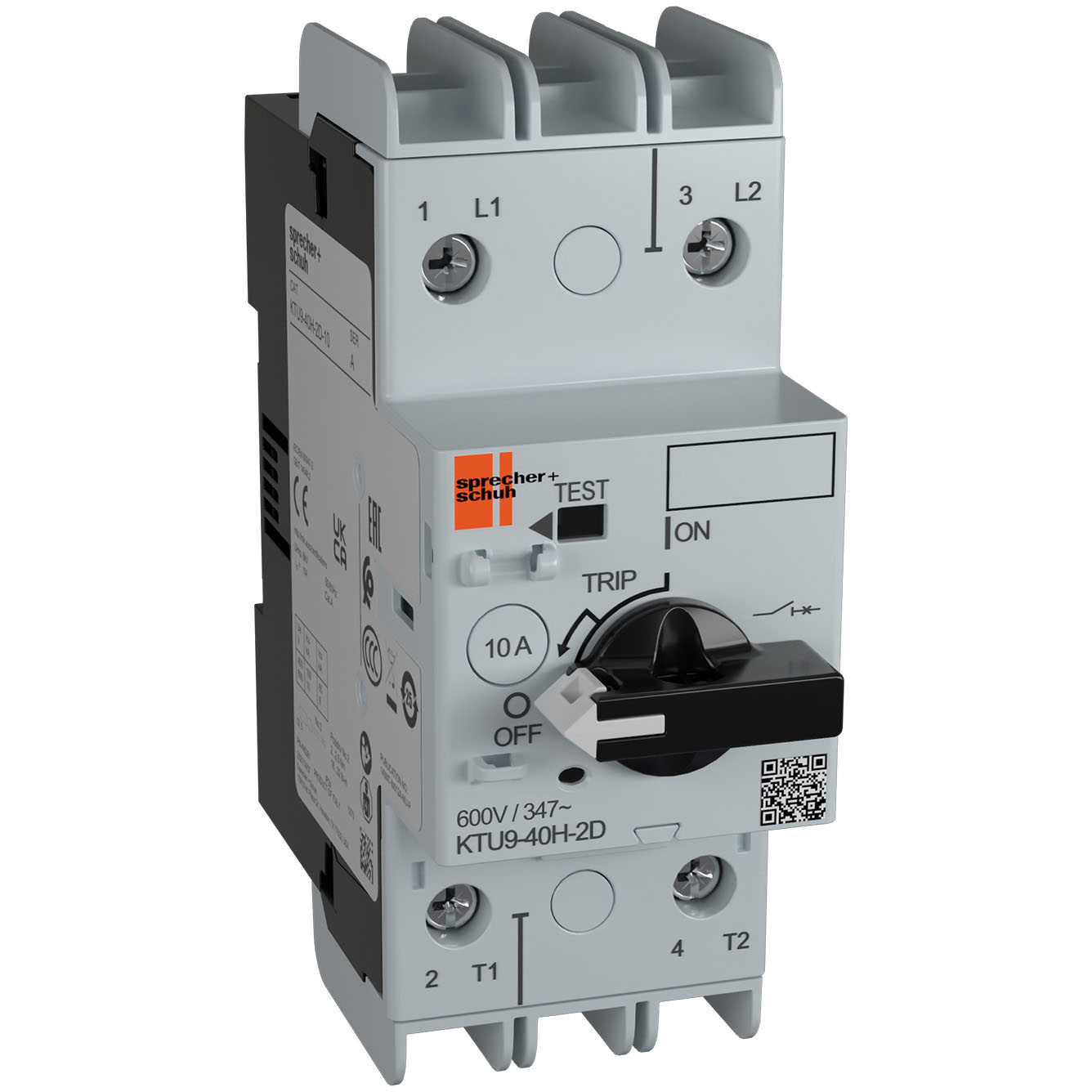

Sprecher and Schuh KTU9-40H-2D-10 circuit breaker 10 A (2-pole) KTU9-40H-2D-10

Product Description

The Sprecher and Schuh KTU9-40H-2D-10 is a thermal-magnetic molded case circuit breaker rated 10 A, intended for industrial circuit protection and motor starter/control applications. The 2-pole device features a D trip curve for high inrush currents, screw terminals, DIN rail mounting, a 600 VAC maximum rating, and is 100 percent rated to UL 489 with CE and cULus approvals.

• 10 A current rating, 2-pole configuration with D trip curve for motor inrush protection
• Thermal-magnetic trip unit, 600 VAC maximum rating, 100 percent rated to UL 489
• DIN rail mounting with screw terminals; approvals include CE and cULus

Product Highlights

Thermal-magnetic 2-pole 10 A DIN rail circuit breaker, D trip curve, UL 489, CE, cULus

Product Information

Standard Information

• Brand: SPRECHER & SCHUH
• Manufacturer Part Number: KTU9-40H-2D-10

Technical Specifications

• Manufacturer: Sprecher and Schuh
• Manufacturer Part Number: KTU9-40H-2D-10
• Product Series: KTU9
• Product Family: Sprecher and Schuh Circuit Breakers, KTU9 Series
• Description: 10 A 2-pole Circuit Breaker
• Poles: 2
• Current Rating: 10 A
• Max Voltage: 600 VAC
• Trip Curve: D
• Trip Unit: Thermal magnetic
• Mounting: DIN rail
• Terminal Type: Screw
• Neutral Pole: No
• GFCI: No
• Neutral Protection: No
• 100% Rated: Yes
• Auxiliary Switch: No
• Shunt Trip: No
• Undervoltage Release: No
• Alarm Switch: No
• UL Standard: 489
• Approvals: CE, cULus
• Product Status: Commercialized
