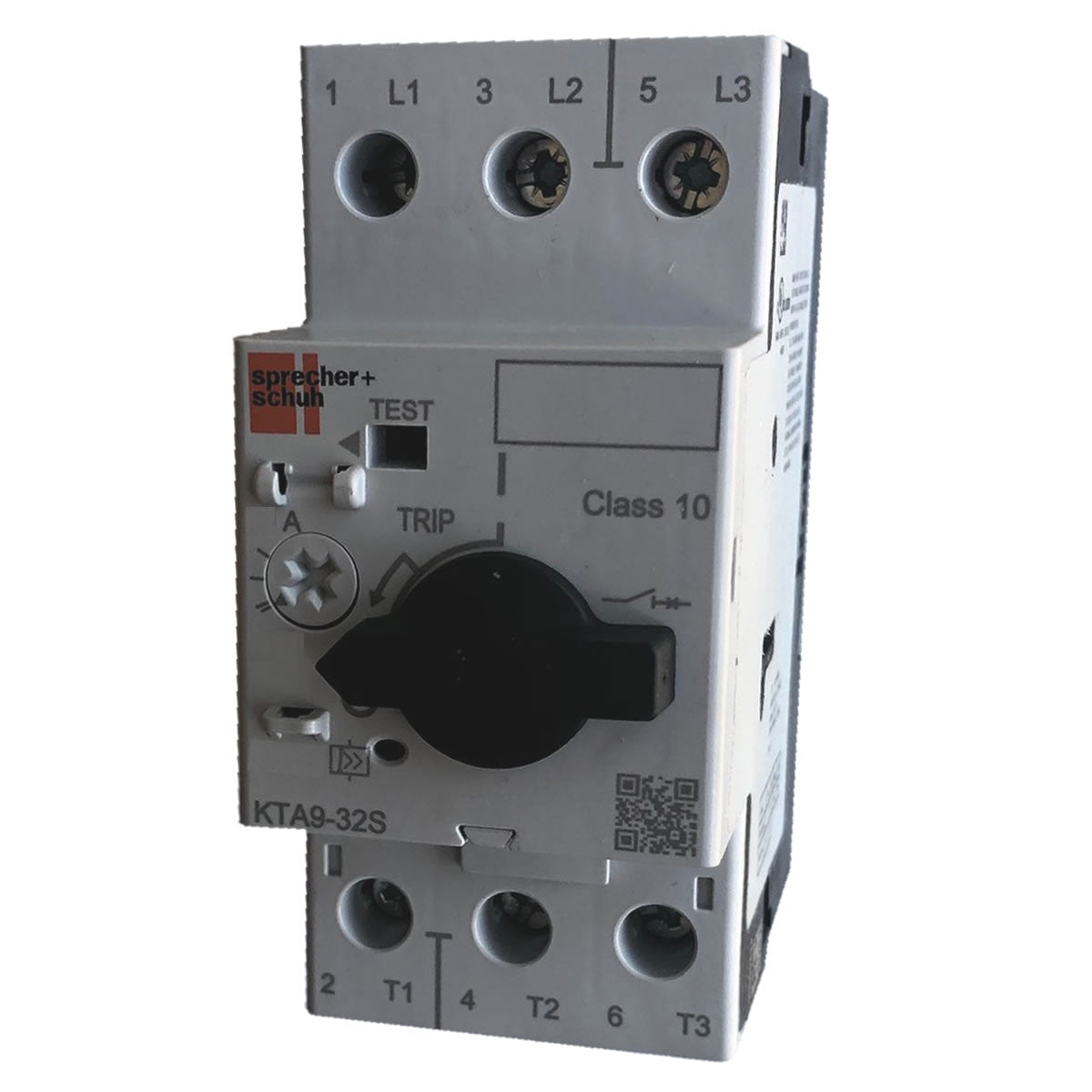

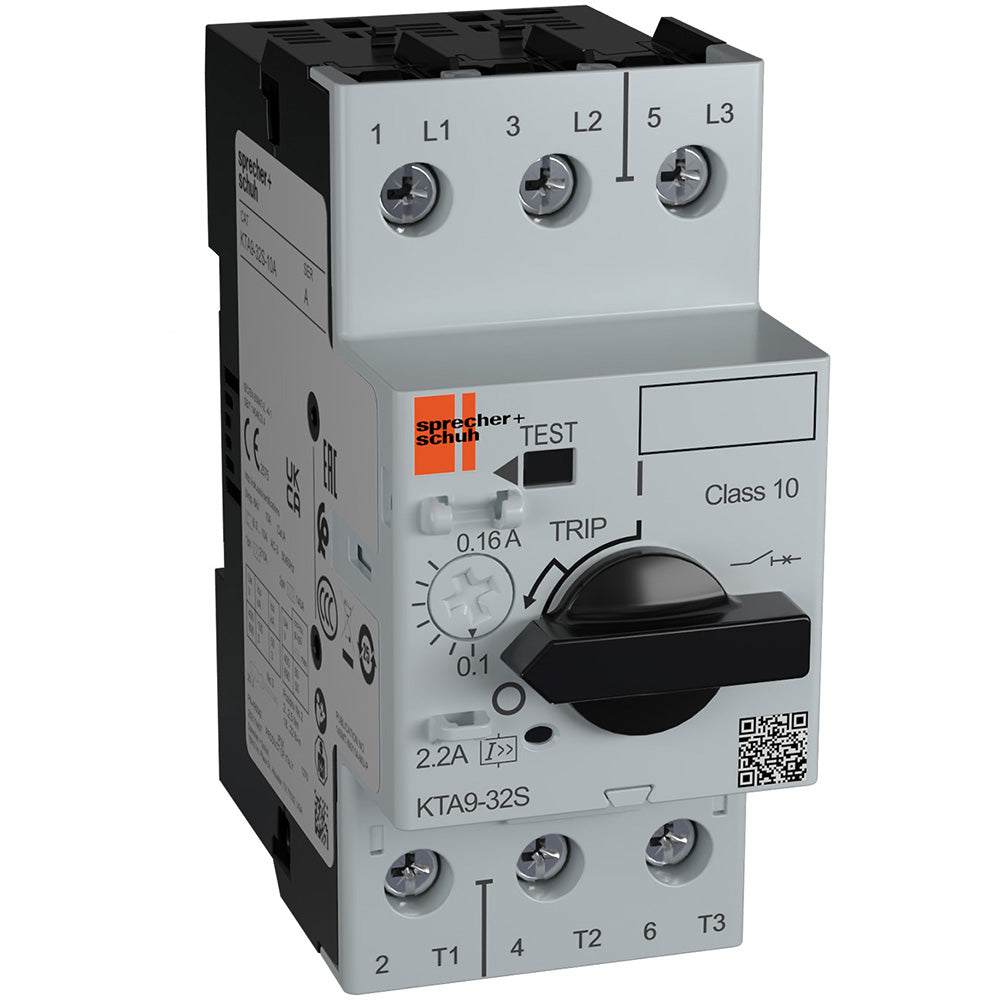

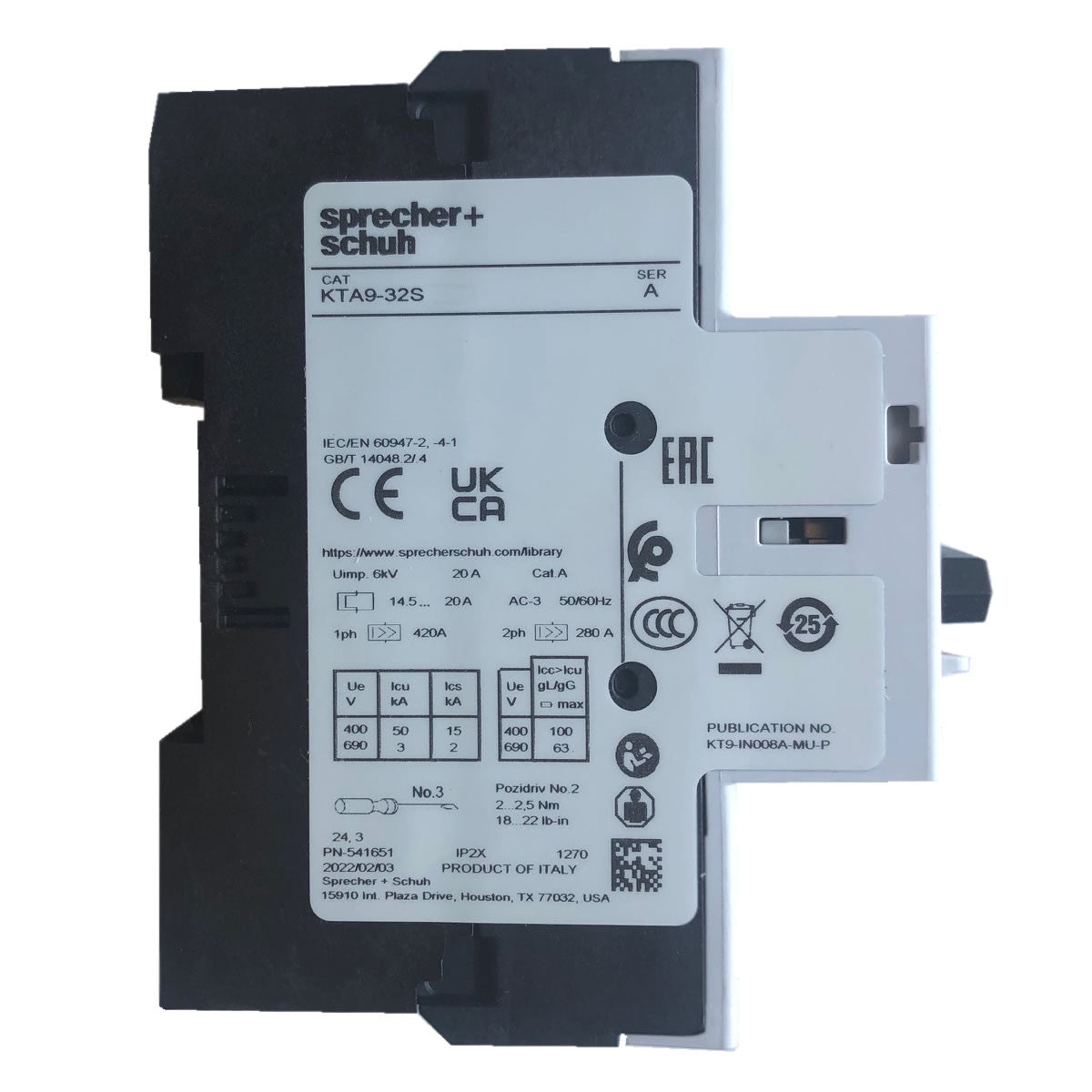

Sprecher and Schuh KTA9-32S-0.63A KTA9 motor protection circuit breaker frame C 0.40-0.63 A (3 pole)

Product Description

The Sprecher and Schuh KTA9-32S-0.63A is a KTA9 series motor protection circuit breaker that provides manual motor controller and self-protected combination motor controller (Type E) functions. It offers adjustable thermal overload protection settable from 0.4 to 0.63 A, magnetic short-circuit protection with an 8.8 A magnetic trip, and three-pole motor branch circuit disconnect capability. The device is UL and CSA listed and supports DIN rail mounting.

• Adjustable current range 0.4–0.63 A with thermal overload protection
• Magnetic short-circuit protection with 8.8 A magnetic trip and rotary ON/OFF handle
• Three-pole KTA9 series design, DIN rail mountable with screw terminals; UL and CSA listed

Product Highlights

3 pole motor protector, adjustable 0.4–0.63 A, Class 10 tripping, 8.8 A magnetic short-circuit protection

Product Information

Standard Information

• Brand: SPRECHER & SCHUH
• Manufacturer Part Number: KTA9-32S-0.63A

Technical Specifications

• Brand: Sprecher and Schuh
• Manufacturer Part Number: KTA9-32S-0.63A
• Series: KTA9 Series
• Product Type: Manual motor protector / motor circuit protector
• Number of Poles: 3
• Frame: Frame C
• Adjustable Current Range: 0.4 - 0.63 A
• Magnetic Trip: 8.8 A
• Protection: Thermal overload and current-limiting magnetic short-circuit protection
• Tripping Class: Class 10
• Terminals: Screw terminals
• Handle: Rotary ON/OFF handle
• Mounting Type: Standard 35 mm DIN rail
• Certifications: UL listed, CSA listed
• RoHS Compliant: Yes
