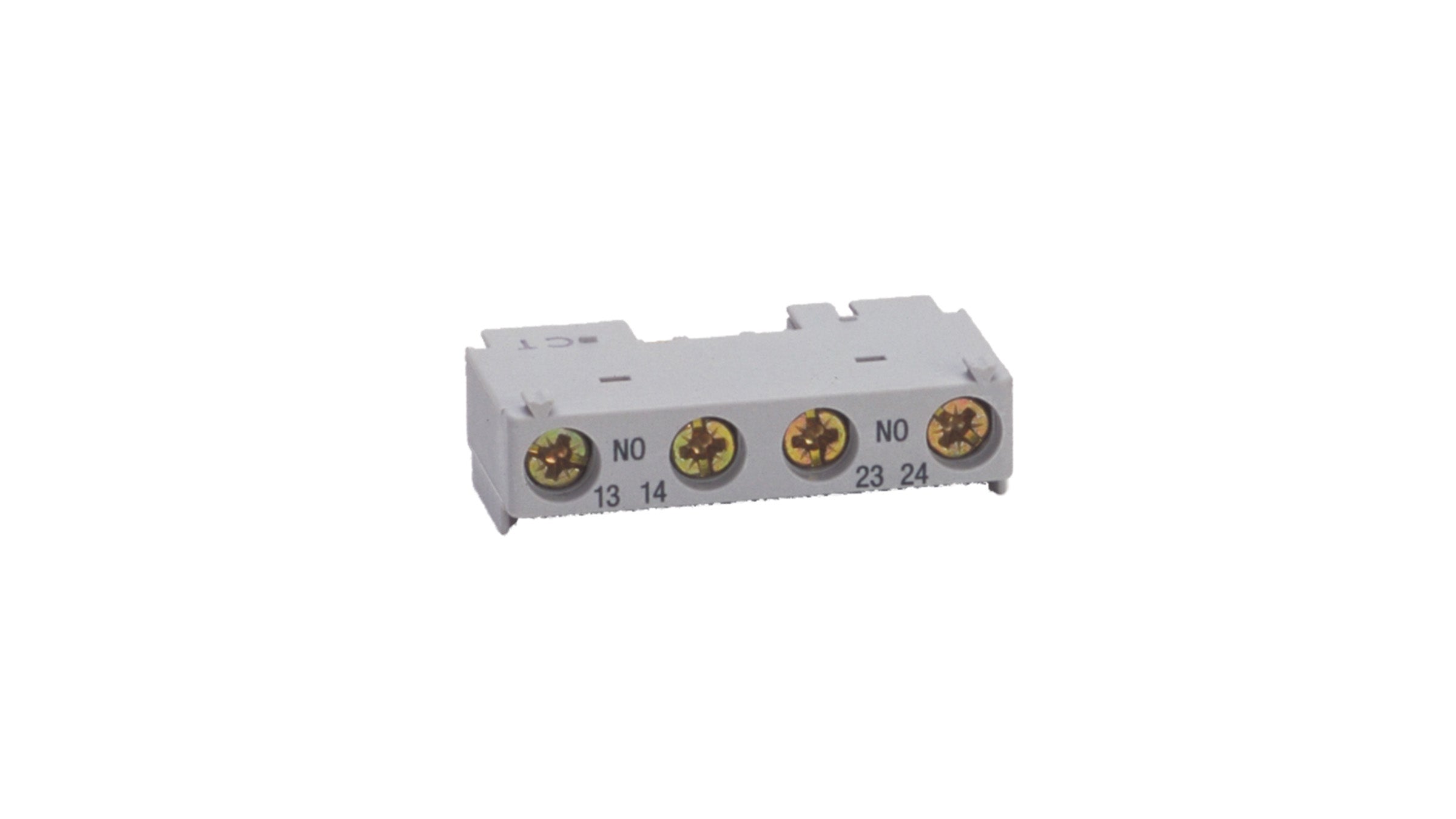

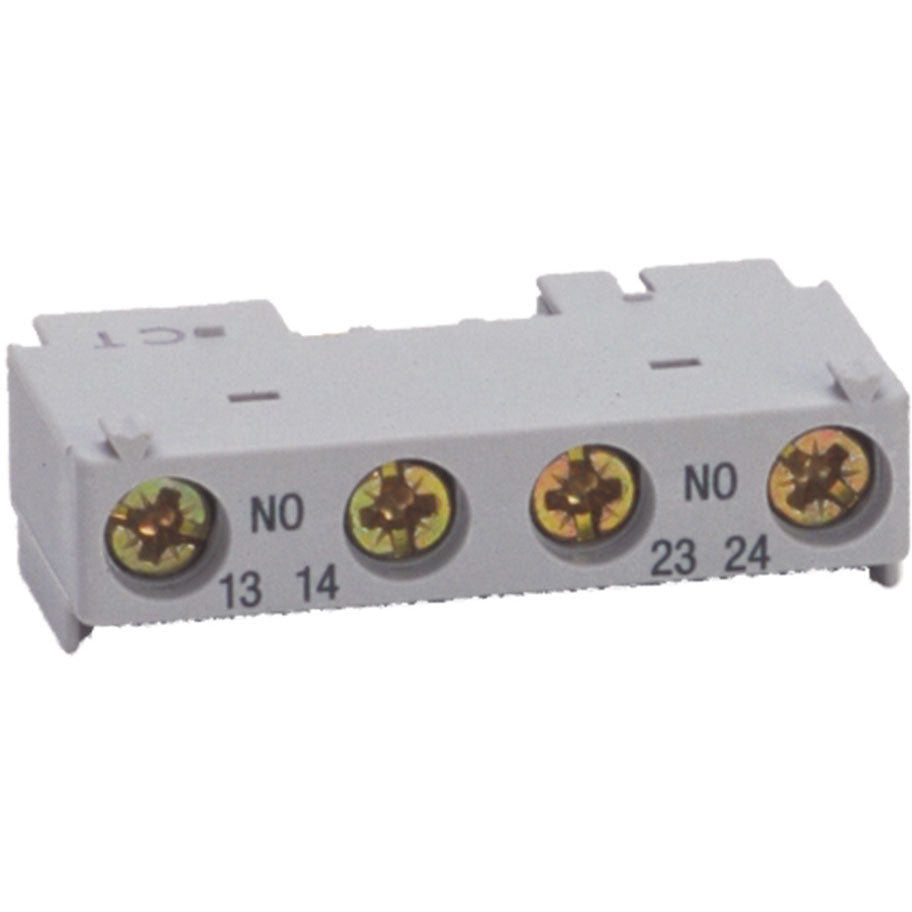

Sprecher and Schuh KT9-PE1-11 Auxiliary Contact 4 A 250 VAC (Front Mount)

Product Description

Sprecher and Schuh KT9-PE1-11 is a front-mount auxiliary contact for the KT9 series, providing one normally open (NO) and one normally closed (NC) contact in a single-pole configuration. The accessory is rated 4 A at a maximum of 250 VAC and is intended for use with KT series motor controllers and enclosed motor starters. Approvals include CCC, CE, and cULus, and the unit is lightweight for front-panel mounting.

• Front-mount auxiliary contact block with 1 NO and 1 NC in a 1-pole configuration
• Rated 4 A output current, maximum 250 VAC; approvals: CCC, CE, cULus
• Compatible with KT-932S, KT-9-40H, KTU9 and other KT9 series motor circuit controls

Product Highlights

Front-mount 1NO/1NC auxiliary contact for KT9 series; 4 A at 250 VAC; CCC, CE, cULus approved.

Product Information

Standard Information

• Brand: SPRECHER & SCHUH
• Manufacturer Part Number: KT9-PE1-11
• Country of Origin: China

Technical Specifications

• Brand: Sprecher and Schuh
• Manufacturer: Sprecher and Schuh
• Manufacturer Part Number: KT9-PE1-11
• Catalog Number: KT9-PE1-11
• Series: KT9
• Accessory Type: Auxiliary Contact
• Contact Configuration: 1NO/1NC
• Poles: 1
• Mounting Type: Front Mount
• Current Rating: 4 A
• Maximum Voltage: 250 VAC
• Compatible With: KT-932S, KT-9-40H, KTU9
• Approvals: CCC, CE, cULus
• Country of Origin: China
• Family: Motor Circuit Controls
• Package Quantity: 1
• Weight: 0.045 lbs (net)
• UPC: 00191326882668
