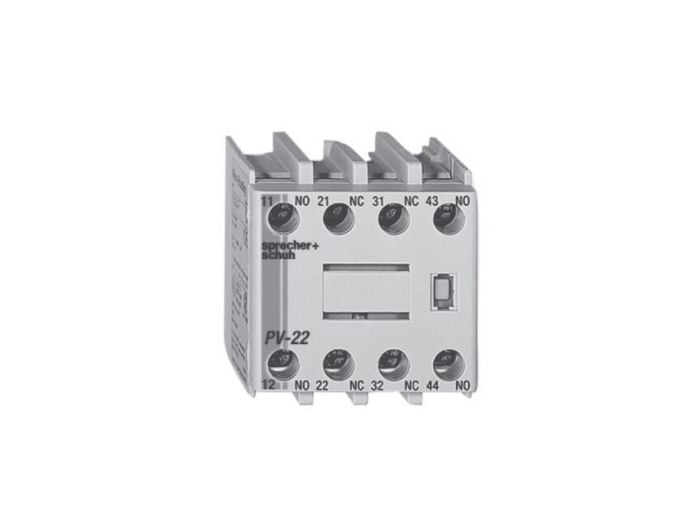

Sprecher and Schuh CS7-PV-22 Auxiliary Contact Block 10 Amp 690 V (4-pole) CS3-P-20

Product Description

Sprecher and Schuh CS7-PV-22 is an auxiliary contact block that provides two normally open and two normally closed contacts for contactor signaling and control. The module is rated 10 Amp at 690 V, mounts front or top with a snap-on design, and is configured as a 4-pole assembly compatible with CA7 contactors. Contacts are electronic-compatible with mutual positive guidance; late break/early make (L) and multiple terminal numbering options are available.

• Contact configuration: 2 NO / 2 NC, 4-pole; contact rating 10 Amp, voltage rating 690 V.
• Mounting and design: front or top mount with snap-on tool-free installation; top mount positions 53-54, 61-62, 71-72, 83-84.
• Contact features and compatibility: electronic-compatible contacts with mutual positive guidance (excluding L types); suitable for CA7 contactors; replaces CS3-P-20; approvals CCC, CE, cULus.

Product Highlights

4-pole auxiliary contact block, 2 NO/2 NC, 10 Amp/690 V, snap-on front/top mount for CA7 contactors

Product Information

Standard Information

• Brand: SPRECHER & SCHUH
• Manufacturer Part Number: CS7-PV-22
• Country of Origin: United States

Technical Specifications

• Brand: Sprecher and Schuh
• Manufacturer: Sprecher + Schuh
• Part Number: CS7-PV-22
• SKU: 2219931
• UPC: 00028672189083
• Contact Configuration: 2 NO / 2 NC (2NO-2NC)
• Contact Rating: 10 Amp
• Voltage Rating: 690 V
• Poles: 4-pole
• Mounting Type: Front mount / Top mount
• Design: Snap-on design, mounts without tools
• Contacts: Electronic-compatible contacts; mutual positive guidance to main contactor poles (excluding L types)
• Contact Positions: 53-54, 61-62, 71-72, 83-84
• Terminal Options: Several terminal numbering choices; late break/early make (L) available
• Suitable For Use With: CA7 contactor
• Replaces: CS3-P-20
• Approvals: CCC, CE, cULus
• Net Weight: 0.13 lbs
• Dimensions: 2 x 2 x 2 inches
• Catalog Description: CS7 Auxiliary Contact Front Mount 2NO 2NC 4-Pole
