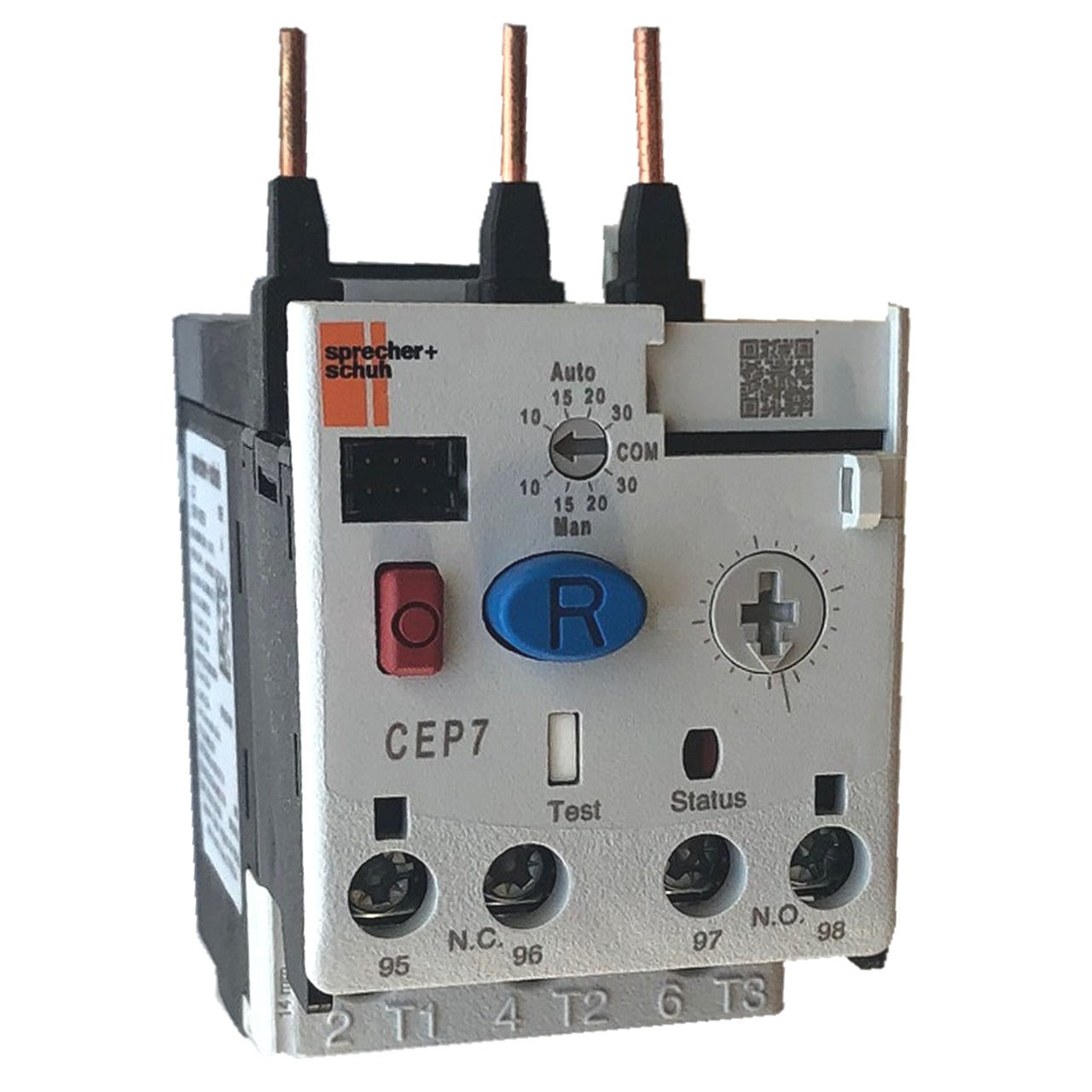

Sprecher and Schuh CEP7-EECB Electronic Overload Relay 1-100 A Range (CA7 Mount)

Product Description

Sprecher and Schuh CEP7-EECB is a solid-state electronic overload relay that provides adjustable current protection and direct mounting to CA7 series contactors. The unit offers adjustable amp ranges (model-dependent up to 1 to 100 A), phase-loss protection, selectable trip class from Class 10 to Class 30, and manual or automatic reset with remote reset capability. It is available in multiple physical sizes to match CA7 contactor frames.

• Solid-state electronic overload with phase-loss protection and selectable trip class (Class 10 to Class 30).
• Adjustable current range (model-dependent up to 1 to 100 A) and wide adjustment ratio (up to 5× minimum setting); direct mount to CA7-9 through CA7-85 contactors.
• Manual or automatic reset with remote reset capability; available in three physical sizes to cover different amp ranges.

Product Highlights

Electronic overload relay for CA7 contactor frames with selectable trip classes, phase-loss protection, and remote reset capability.

Product Information

Standard Information

• Brand: SPRECHER & SCHUH
• Manufacturer Part Number: CEP7-EECB
