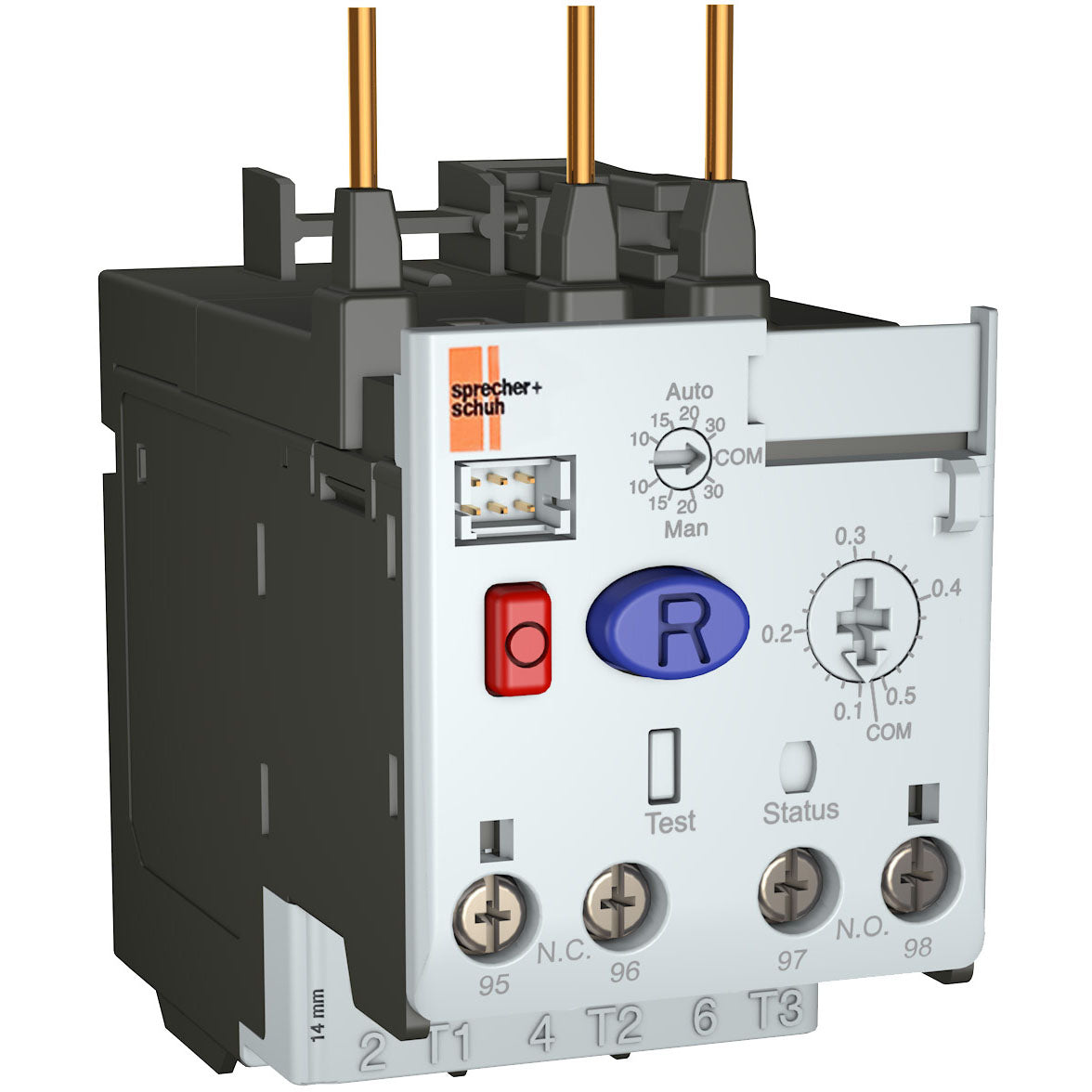

Sprecher and Schuh CEP7-1EFBB Electronic Overload Relay 0.2-1 A (Direct Mount for CA7-09, CA7-12, CA7-16, CA7-23)

Product Description

The Sprecher and Schuh CEP7-1EFBB is an IEC-rated electronic overload relay that protects three-phase motors and mounts directly to CA7 series contactors. It provides an adjustable current range of 0.2 to 1 A, selectable trip classes (10, 15, 20, 30) and automatic or manual reset. The device uses a bipolar latching relay with normally closed trip and normally open alarm contacts and is rated for -20 to 60 °C operation with vibration and shock resistance.

• Adjustable current range 0.2–1 A with selectable trip classes 10, 15, 20, 30
• Automatic or manual reset; bipolar latching relay with NC trip and NO alarm contacts (self-enclosed)
• Direct mount for CA7 contactors (CA7-09, CA7-12, CA7-16, CA7-23); tested to -20 to 60 °C, 3G vibration, 30G shock, up to 2000 m altitude and 95% humidity

Product Highlights

IEC-rated electronic overload relay, 0.2–1 A, direct mount for CA7 contactors, selectable trip classes, automatic/manual reset

Product Information

Standard Information

• Brand: SPRECHER & SCHUH
• Manufacturer Part Number: CEP7-1EFBB

Technical Specifications

• Brand: Sprecher and Schuh
• Manufacturer Part Number: CEP7-1EFBB
• Product Type: Electronic overload relay
• Standards: IEC-rated
• Application: Protection of three-phase motors
• Trip Class: 10, 15, 20, 30
• Reset Type: Automatic or manual
• Current Range: 0.2 - 1 A
• Mounting Type: Direct mount for CA7-09, CA7-12, CA7-16, CA7-23
• Compatible Contactors: CA7-09, CA7-12, CA7-16, CA7-23
• Relay Type: Bipolar latching relay
• Contacts: Normally closed trip contacts; normally open alarm contacts (self-enclosed)
• Operating Temperature: -20 to 60 °C
• Vibration Resistance: 3G
• Shock Resistance: 30G
• Maximum Altitude: 2000 m
• Humidity: Up to 95% relative humidity
• Series: CEP7 series
• Catalog/Line: CEP7-1E overload relays
