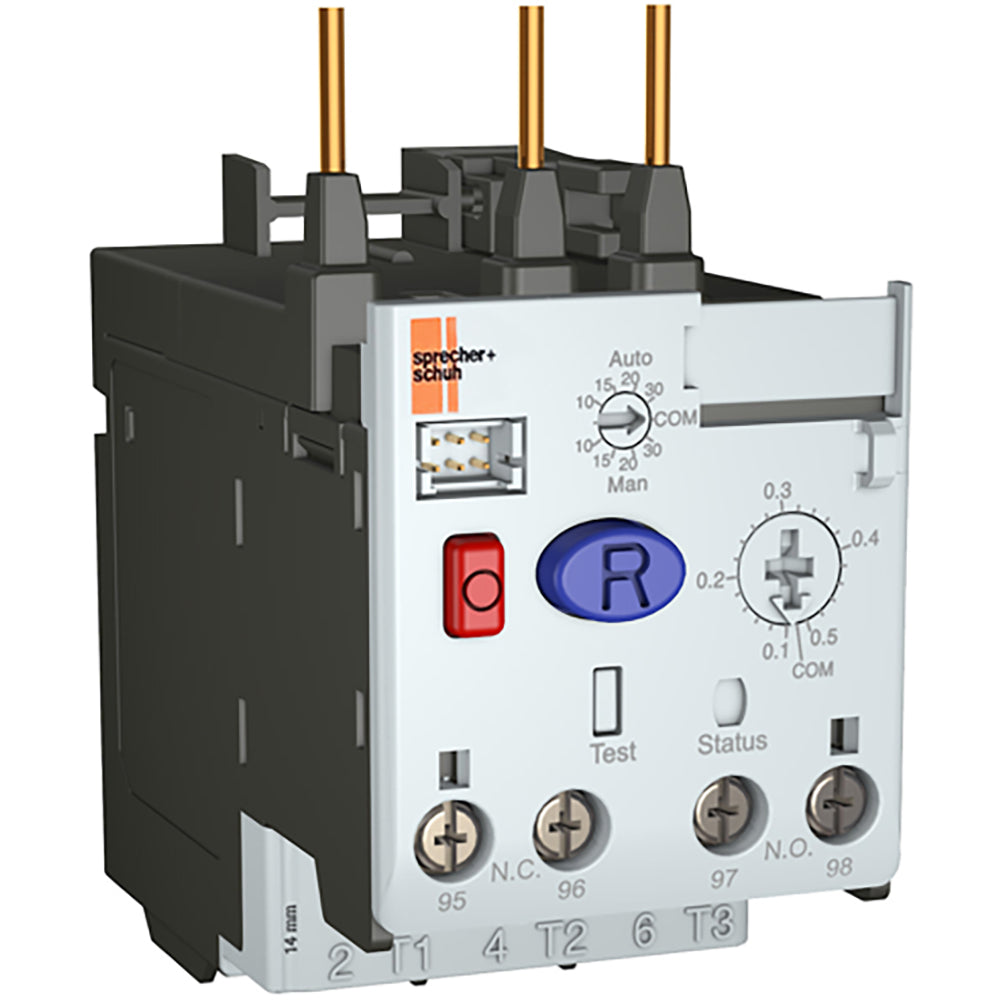

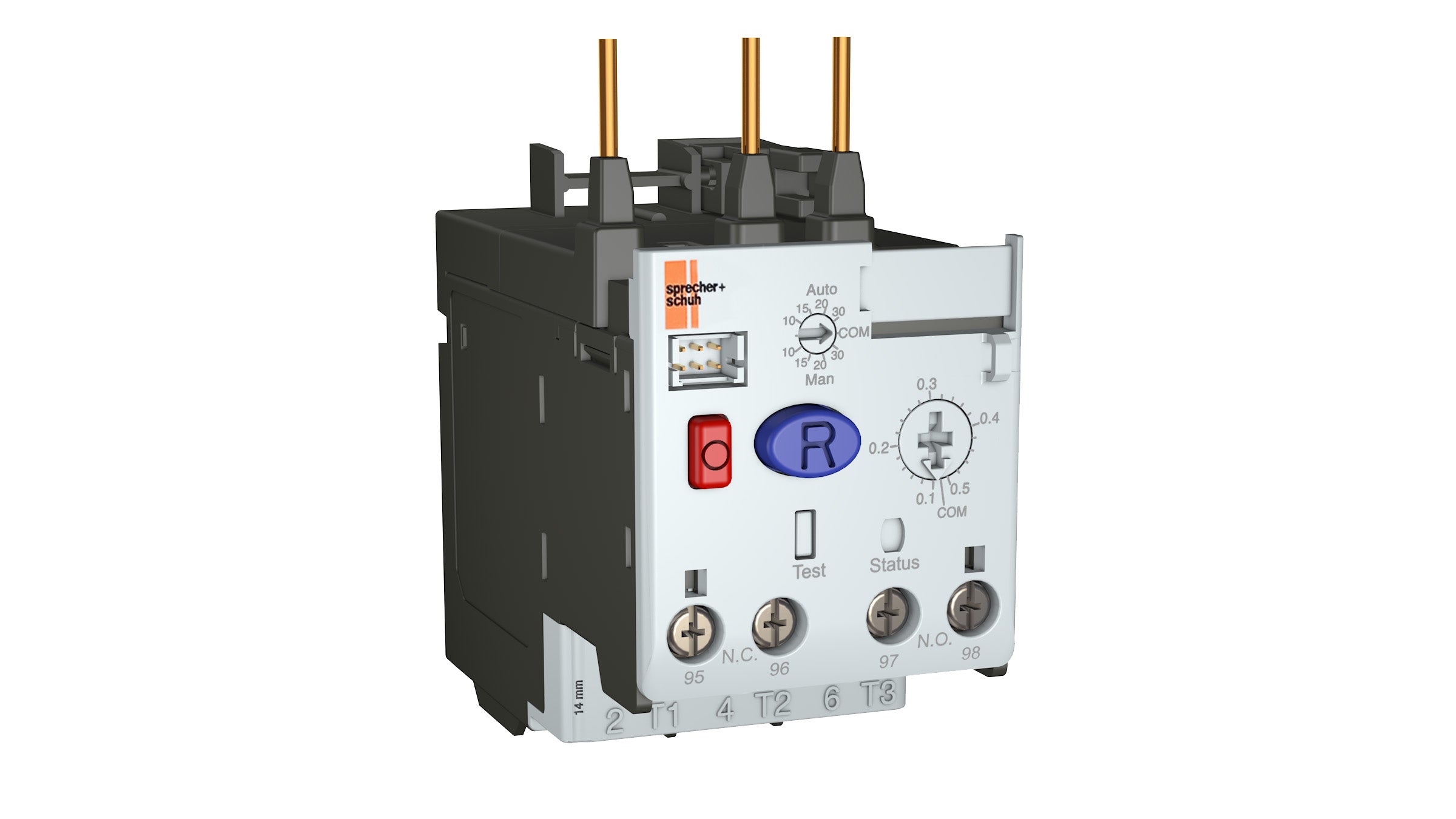

Sprecher and Schuh CEP7-1EFAB Solid state overload relay 0.1-0.5 A (Direct mount for CA7-9 to 16) PN-433609

Product Description

Sprecher and Schuh CEP7-1EFAB is a CEP7 series solid state overload relay with an adjustable overload current range of 0.1 to 0.5 A for electronic motor overload protection. It supports 1- or 3-phase operation, offers selectable trip classes (10/15/20/30) and provides auto or manual reset. The unit direct mounts to CA7 contactors (CA7-9 to CA7-16) and is compatible with CA7 and CAN7 contactors; approvals include CCC, CE, cULus, and TUV.

• Adjustable overload current 0.1–0.5 A; supports 1 or 3 phase operation
• Selectable trip classes 10, 15, 20, 30; auto or manual reset
• Direct mount for CA7-9 to CA7-16; compatible with CA7 and CAN7 contactors; approvals: CCC, CE, cULus, TUV

Product Highlights

Electronic motor overload protection, adjustable 0.1–0.5 A, direct mount for CA7/CAN7 contactors

Product Information

Standard Information

• Brand: SPRECHER & SCHUH
• Manufacturer Part Number: CEP7-1EFAB

Technical Specifications

• Manufacturer: Sprecher and Schuh
• Manufacturer Part Number: CEP7-1EFAB
• Alternate Part Number: PN-433609
• Series: CEP7
• Type: Solid state overload relay
• Phase: 1 or 3 Phase
• Overload Current: 0.1-0.5 A
• Trip Class: Class 10/15/20/30
• Mounting: Direct mount for CA7-9 to CA7-16
• Reset Type: Auto or manual reset
• For Use With: CA7, CAN7 contactors
• Approvals: CCC, CE, cULus, TUV
• Weight: 726 g
