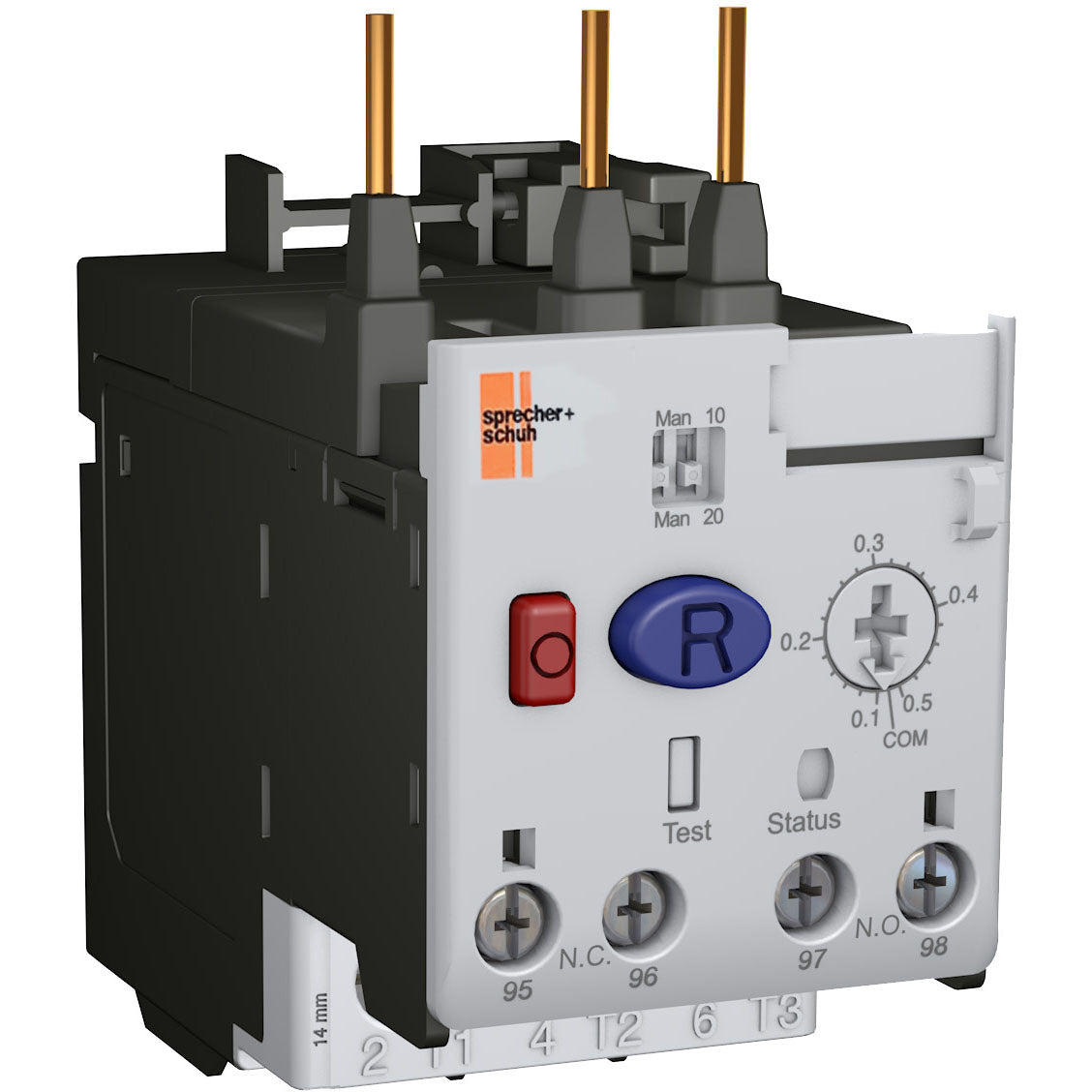

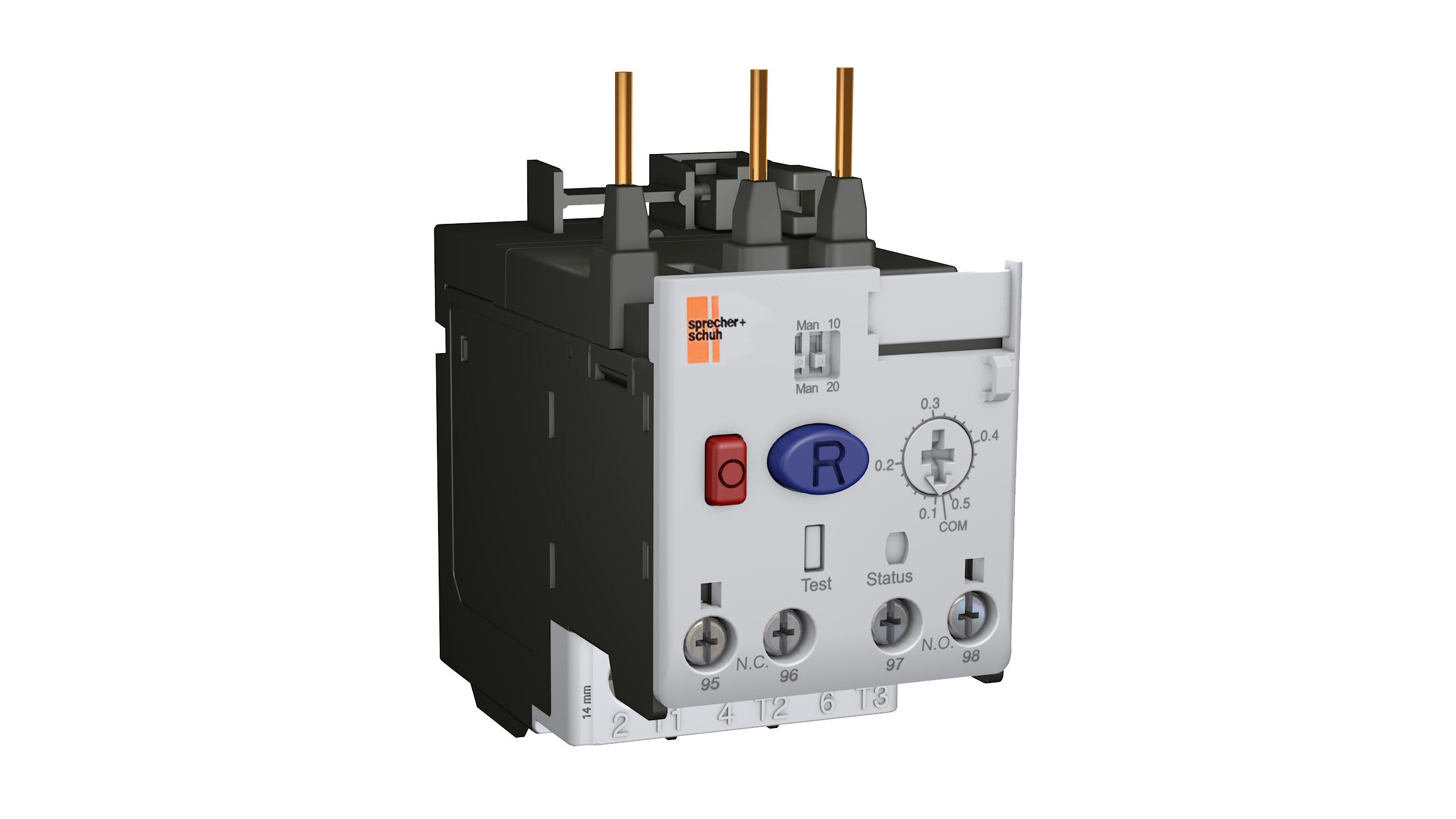

Sprecher and Schuh CEP7-1EEDB CEP7 3.2-16.0 A Direct Mount Overload Relay (Direct Mount) PN-433594

Product Description

The Sprecher and Schuh CEP7-1EEDB is a solid state direct-mount overload relay providing adjustable motor protection from 3.2 to 16.0 A. It is designed for direct mounting on CA7 and CAN7 contactors (including CA7-9..23) and implements Class 10/20 trip characteristics for motor overload protection. Approvals include CCC, CE, cULus and TUV. Net weight is approximately 0.445 lb.

• Adjustable current range: 3.2 to 16.0 A for motor overload protection
• Direct mount design compatible with CA7 and CAN7 contactors (CA7-9..23)
• Solid state/electronic overload relay with Class 10/20 trip characteristics and CCC, CE, cULus, TUV approvals

Product Highlights

Direct-mount solid state overload relay, adjustable 3.2–16.0 A, Class 10/20 trip characteristics

Product Information

Standard Information

• Brand: SPRECHER & SCHUH
• Manufacturer Part Number: CEP7-1EEDB
• Country of Origin: United Mexican States

Technical Specifications

• Brand: Sprecher and Schuh
• Manufacturer: Sprecher and Schuh
• Manufacturer Part Number: CEP7-1EEDB
• Product Series: CEP7
• Product Type: Solid state overload relay
• Current Range: 3.2-16.0 A
• Mounting Type: Direct mount
• Compatible Contactors: CA7, CAN7 (including CA7-9..23)
• Trip Class: Class 10/20
• Approvals: CCC, CE, cULus, TUV
• Net Weight: 0.445 lb
• Country of Origin: United Mexican States
• Catalog Description: CEP7 Solid State Overload Relay Direct Mount for CA7-9..23 3.2-16.0 A
