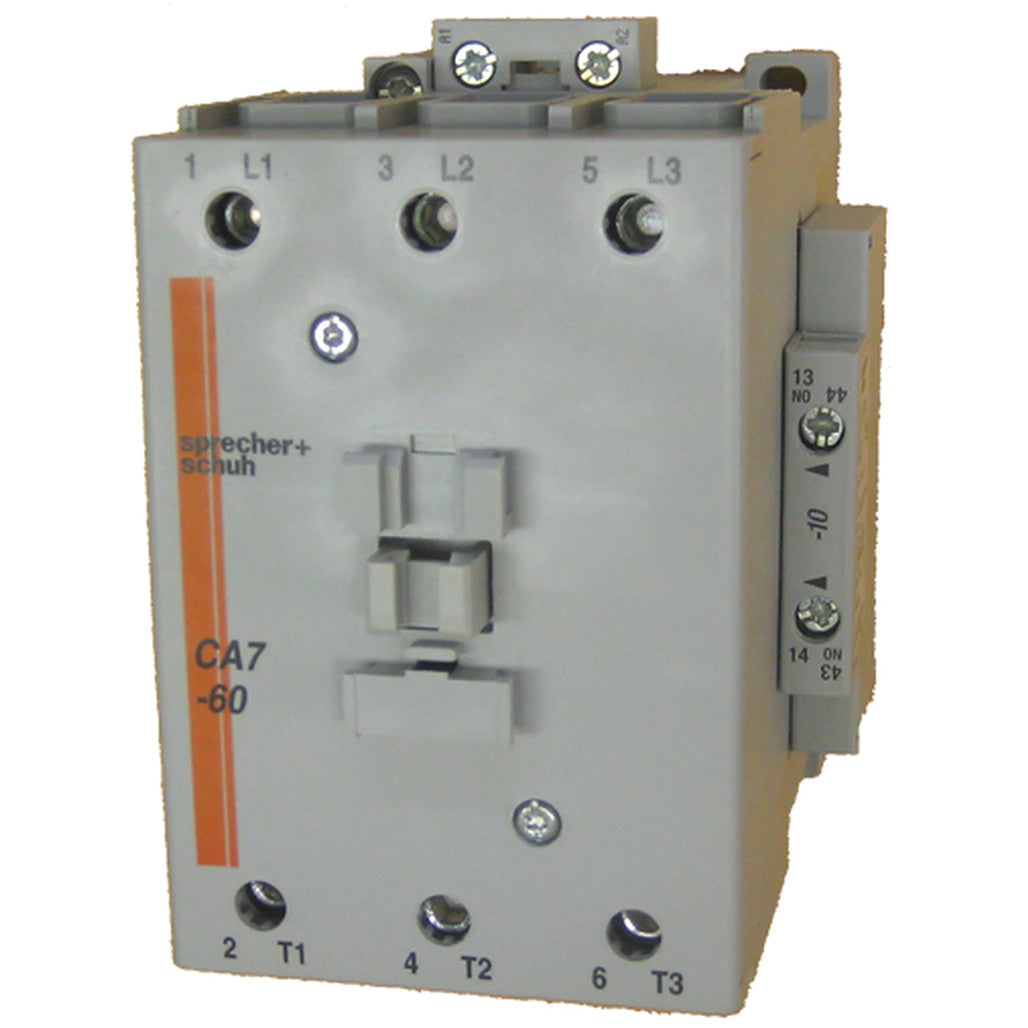

Sprecher and Schuh CA7-60-10-220W 3-Pole Contactor 60 A AC-3 (208-240 V Coil)

Product Description

The Sprecher and Schuh CA7-60-10-220W is a 3-pole IEC contactor with a 208-240 V AC, 60 Hz coil and ratings of 60 A (AC-3) and 100 A (AC-1). It includes one normally open side-mounted auxiliary contact, screw terminals, 35 mm DIN rail mounting, and arc chutes to reduce electrical arcing. The device supports up to 20 HP at 230 V and 40 HP at 460 V (three-phase) and is compatible with CEP7 overload relays.

• 3-pole IEC contactor with 60 A AC-3 and 100 A AC-1 current ratings
• 208-240 V AC, 60 Hz coil; screw terminals and 35 mm DIN rail mounting
• Includes one normally open side-mounted auxiliary contact; arc chutes to reduce arcing

Product Highlights

3-pole contactor, 60 A AC-3 rating, 208-240 V coil, DIN rail mount, UL/CSA/CE

Product Information

Standard Information

• Brand: SPRECHER & SCHUH
• Manufacturer Part Number: CA7-60-10-220W

Technical Specifications

• Brand: Sprecher and Schuh
• Manufacturer Part Number: CA7-60-10-220W
• Poles: 3 pole
• Coil Voltage: 208-240 V AC, 60 Hz
• Rated Current (AC-3): 60 A
• Rated Current (AC-1): 100 A
• Horsepower Rating: 20 HP @ 230 V (3-phase); 40 HP @ 460 V (3-phase)
• Auxiliary Contact: 1 normally open (N.O.) side-mounted
• Terminals: Screw terminals
• Mounting: 35 mm DIN rail
• Arc Control: Arc chutes to reduce electrical arcing
• Compatibility: Compatible with 2- and 4-pole top-mount and 2-pole side-mount auxiliaries; CEP7 electronic overload relays
• Certifications: UL Listed; CSA Approved; CE marked; meets IEC 60947-1
