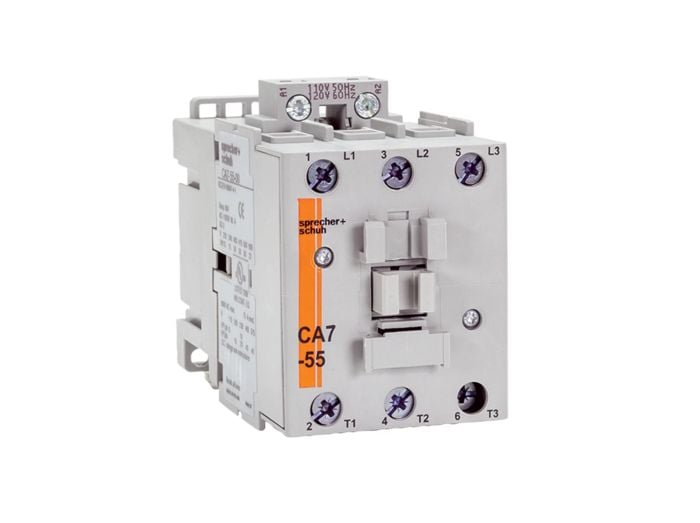

Sprecher and Schuh CA7-55-10-220W Contactor 55 A (CA7 Frame)

Product Description

Sprecher and Schuh CA7-55-10-220W is an IEC contactor rated 55 A with a 3-pole configuration for motor switching and control. It has a 208–240 VAC coil (nominal 208 VAC, 240 VAC), a non-latching coil type, one normally open auxiliary contact, and screw terminations. Part of the CA7 series, it includes mechanically linked force-guided contacts meeting IEC 60947-5-1 clearance requirements for safety and compact frame options for panel installation.

• Rated current: 55 A (AC3 motor switching) and AC1 general purpose rating 85 A
• Coil: 208–240 VAC nominal; non-latching coil, 3 poles, 1 NO auxiliary contact, screw termination
• CA7 series features mechanically linked (force-guided) contacts and compact frame options for reduced panel footprint

Product Highlights

IEC 3-pole contactor, 55 A rating, 208–240 VAC coil; mechanically linked contacts

Product Information

Standard Information

• Brand: SPRECHER & SCHUH
• Manufacturer Part Number: CA7-55-10-220W
• Country of Origin: United States

Technical Specifications

• Brand: Sprecher and Schuh
• Manufacturer Part Number: CA7-55-10-220W
• Alternate Manufacturer Part Number: PN-225109
• Product Series: CA7
• Description: IEC contactor 55 A
• Type: AC Non-Reversing IEC
• Rated Current: 55 A
• AC1 Rating (General Purpose): 85 A
• AC3 Rating (UL Motor Switching): 55 A
• Nominal Coil Voltage: 208 VAC, 240 VAC
• Coil Voltage: 208-240 VAC
• Coil Type: Non latching
• Poles: 3
• Frame Size: CA7
• Auxiliary Contact: 1 NO
• Termination: Screw
• Approvals: CCC, CSA, cULus
• Condition: New
• Family Series: Sprecher and Schuh Contactors, CA7 Series
