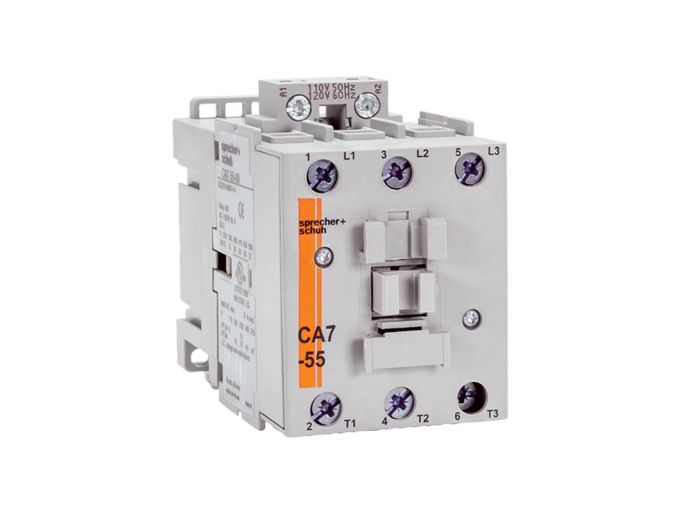

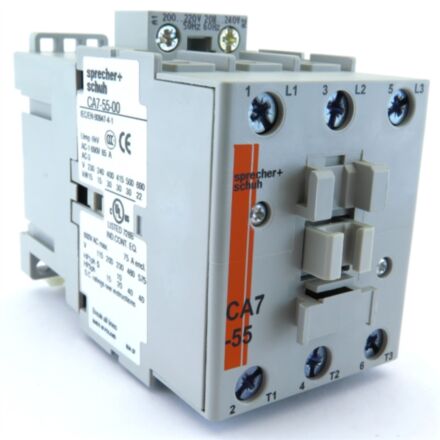

Sprecher and Schuh CA7-55-10-120 Iec contactor 55 A (3 pole)

Product Description

Sprecher and Schuh CA7-55-10-120 is an IEC contactor rated for 55 A with a 120 V AC coil. It is a three-pole device with a 1 normally open auxiliary contact and screw terminal connections, designed for motor switching and general-purpose AC applications. The CA7 series features mechanically linked (force guided) contacts that meet safety clearance requirements per IEC 60947-5-1. Country of origin: Republic of Poland.

• Rated current: 55 A; three poles with 1 normally open auxiliary contact (1NO).
• Coil: 120 V AC, non-latching; screw terminal connections for wiring.
• Mechanically linked (force guided) contacts meeting IEC 60947-5-1 safety clearance; approvals include CCC, CSA, cULus.

Product Highlights

IEC contactor, CA7 series, 55 A, 120 V AC coil, 3-pole, 1NO, screw terminals.

Product Information

Standard Information

• Brand: SPRECHER & SCHUH
• Manufacturer Part Number: CA7-55-10-120
• Country of Origin: Republic of Poland

Technical Specifications

• Brand: Sprecher and Schuh
• Manufacturer Part Number: CA7-55-10-120
• Manufacturer Description: CA7-55-10-120 IEC contactor 55 A
• Product Type: IEC contactor
• Series: CA7
• Rated Current: 55 A
• Coil Voltage: 120 V AC
• Coil Type: Non latching
• Contact Configuration: 3 main poles + 1 NO auxiliary (1NO)
• Poles: 3
• Terminal Type: Screw
• Frame Size: CA7
• General Purpose (AC1) Rating: 85 A
• UL Motor Switching (AC3) Rating: 55 A
• Approvals: CCC, CSA, cULus
• Net Weight: 1.35 lbs
• Country of Origin: Republic of Poland
