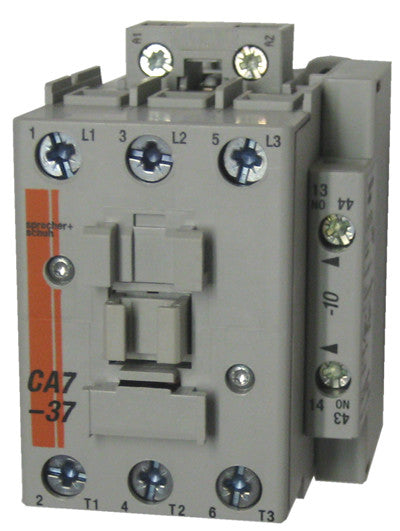

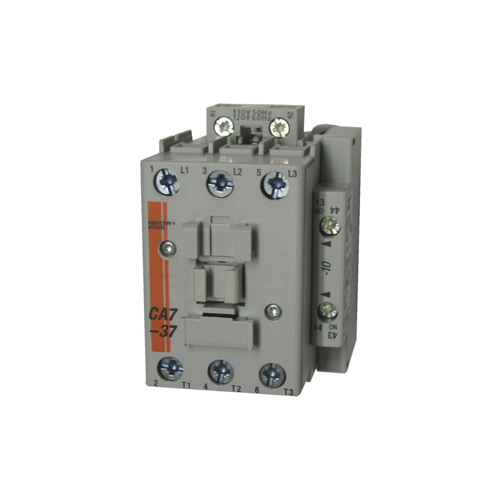

Sprecher and Schuh CA7-37-10-24Z 3-pole 37 A contactor (DIN rail)

Product Description

Sprecher and Schuh CA7-37-10-24Z is a 3-pole IEC power contactor with a 24 V AC coil designed for industrial motor control. It is rated 37 A (AC-3) and 65 A (AC-1), supports 10 HP at 230 V and 25 HP at 460 V three-phase, and is rated to 600 V primary. The unit includes one normally open auxiliary contact, screw and dual power terminals, arc chutes, and 35 mm DIN rail mounting.

• Coil voltage: 24 V AC (50/60 Hz); 3-pole power contactor rated 37 A (AC-3) / 65 A (AC-1)
• Motor ratings: 10 HP @ 230 V and 25 HP @ 460 V (three-phase); primary voltage up to 600 V
• Physical and wiring: 35 mm DIN rail mounting, screw terminals with dual power terminals, 1 N.O. side-mounted auxiliary contact

Product Highlights

IEC power contactor with arc chutes, modular accessory compatibility, and UL, CSA, CE approvals

Product Information

Standard Information

• Brand: SPRECHER & SCHUH
• Manufacturer Part Number: CA7-37-10-24Z
• Country of Origin: Swiss Confederation

Technical Specifications

• Brand: Sprecher and Schuh
• Manufacturer: Sprecher and Schuh
• Model/MPN: CA7-37-10-24Z
• Product Type: IEC power contactor
• Poles: 3-pole
• Coil Voltage: 24 V AC (50/60 Hz)
• Rated Current (AC-3): 37 A
• Rated Current (AC-1): 65 A
• Horsepower Ratings: 10 HP @ 230 V (3-phase); 25 HP @ 460 V (3-phase)
• Rated Primary Voltage: Up to 600 V
• Auxiliary Contacts: 1 normally open (side-mounted)
• Terminals: Screw terminals; dual power terminals for each pole
• Mounting Type: 35 mm DIN rail
• Accessories Compatibility: Supports 2- and 4-pole top-mount and 2-pole side-mount auxiliaries; compatible with CEP7 electronic overload relays; modular accessories interchangeable across CA7 and CS7 series
• Arc Suppression: Arc chutes to reduce electrical arcing
• Enclosure/Protection: IP2X
• Approvals/Standards: UL Listed, CSA Approved, CE Marked, meets IEC 60947-1
• Frame: 3P
