Sprecher and Schuh CA7-30-10-220W IEC Contactor 30 A (3 Pole) 22-361-107-37

Product Description

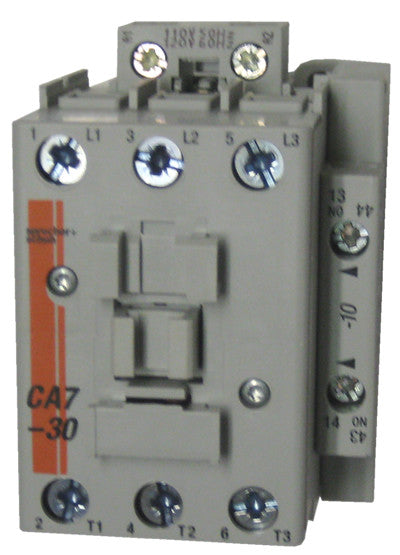

The Sprecher and Schuh CA7-30-10-220W is an IEC three-pole contactor with a 208-240 V AC coil (60 Hz) intended for motor switching and starter assemblies. It is rated 30 A for AC-3 motor duty and 65 A for AC-1 general purpose service, with 10 HP at 230 V and 20 HP at 460 V (three-phase). The unit includes one side-mounted normally open auxiliary contact, screw terminals, 35 mm DIN-rail mounting, arc chutes, and IEC 60947-1 compliance with UL and CSA approvals.

• Coil: 208-240 V AC, 60 Hz; rated 30 A (AC-3) and 65 A (AC-1); 10 HP @ 230 V, 20 HP @ 460 V
• Mechanical and electrical: three poles, one side-mounted normally open auxiliary contact, screw terminals, arc chutes
• Mounting and compatibility: 35 mm DIN-rail mounting; accepts 2- and 4-pole top-mount and 2-pole side-mount auxiliaries; compatible with CEP7 overload relays

Product Highlights

IEC three-pole contactor, 208-240 V AC coil, 30 A AC-3 / 65 A AC-1, 1 NO auxiliary, 35 mm DIN-rail mount

Product Information

Standard Information

• Brand: SPRECHER & SCHUH
• Manufacturer Part Number: CA7-30-10-220W
• Country of Origin: United States

Technical Specifications

• Brand: Sprecher and Schuh
• Model / MPN: CA7-30-10-220W
• Alternate Manufacturer Part Number: 22-361-107-37
• Product Series: CA7
• Type: IEC Contactor (AC non-reversing)
• Poles: 3
• Coil Voltage: 208-240 V AC
• Coil Frequency: 60 Hz
• Coil Type: Non latching
• Rated Current (AC-3): 30 A
• Rated Current (AC-1): 65 A
• Horsepower Ratings: 10 HP @ 230 V; 20 HP @ 460 V (three-phase)
• Auxiliary Contacts: 1 normally open (1 NO), side-mounted
• Termination: Screw terminals
• Mounting Type: DIN-rail (35 mm)
• Compatible Auxiliaries: Accepts 2- and 4-pole top-mount and 2-pole side-mount auxiliaries
• Compatible Overload Relay: CEP7 electronic overload relays
• Approvals and Certifications: UL Listed; CSA Approved; CE marked; CCC; cULus
• Standards Compliance: IEC 60947-1
• Safety Features: Arc chutes
