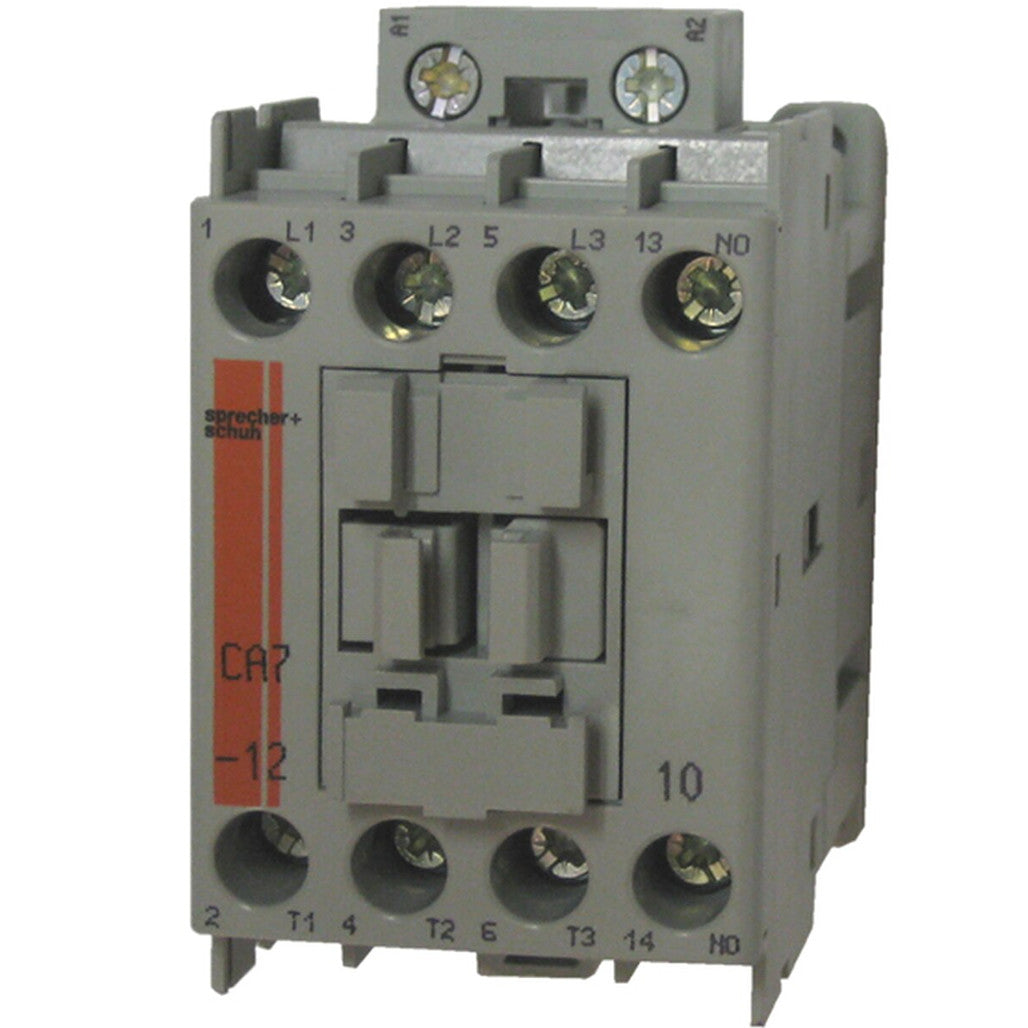

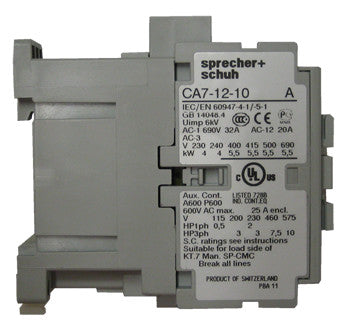

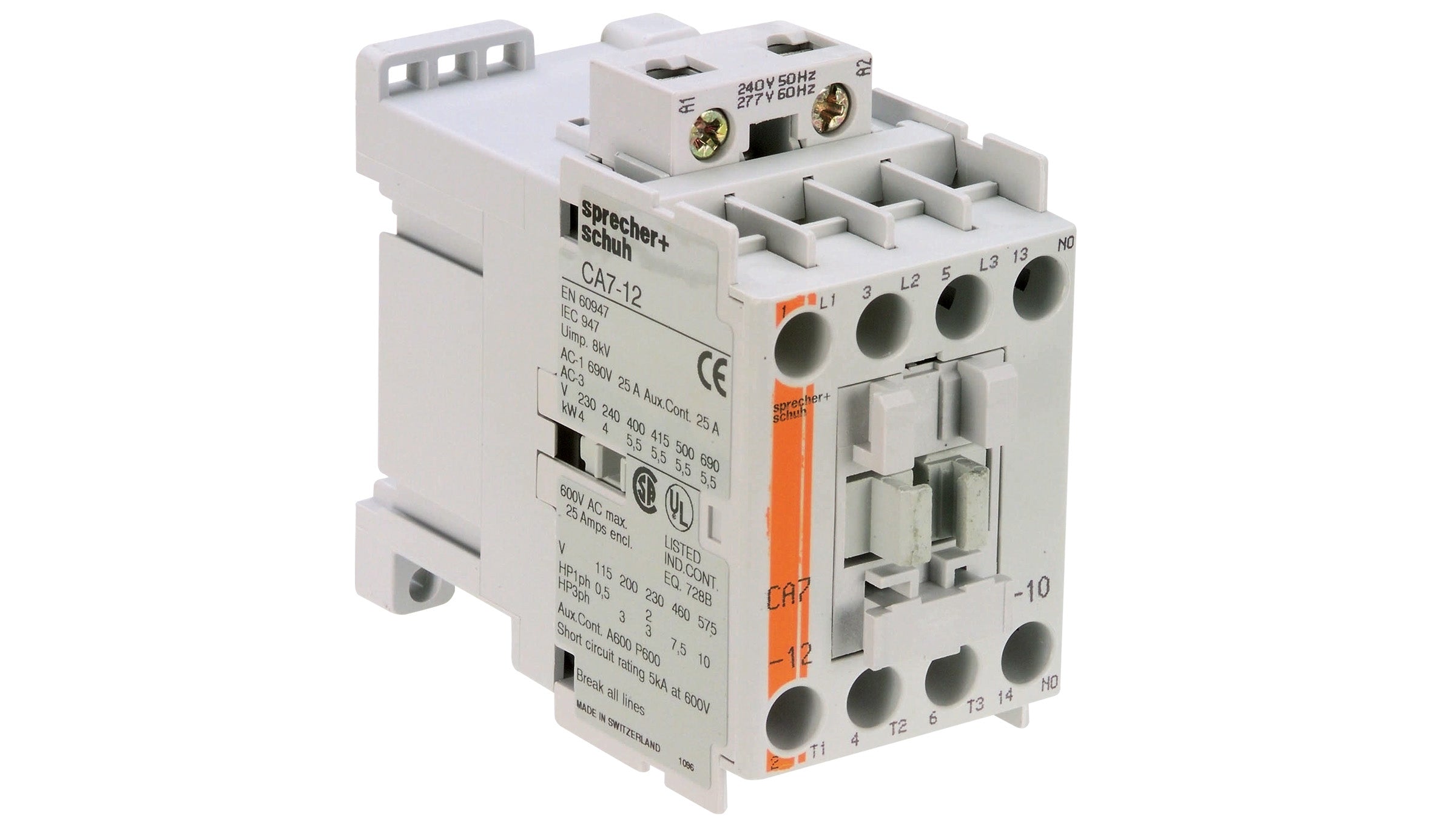

Sprecher and Schuh CA7-12-10-220W IEC contactor 12A (3 Pole)

Product Description

The Sprecher and Schuh CA7-12-10-220W is a CA7 series 3-pole IEC contactor with a 208 to 240 V AC, 60 Hz coil and a 12 A AC-3 (32 A AC-1) current rating. It includes one normally open auxiliary contact, screw terminals, and 35 mm DIN rail mounting. The contactor is rated for 3 HP at 230 V and 7.5 HP at 460 V (three-phase) and meets IEC 60947-1 with UL, CSA, and CE approvals.

• 3-pole design with 12 A AC-3 and 32 A AC-1 ratings; 3 HP @ 230 V, 7.5 HP @ 460 V (three-phase)
• Coil voltage 208 to 240 V AC, 60 Hz; includes one normally open (1 NO) auxiliary contact
• Screw terminals, 35 mm DIN rail mounting, arc chutes for reduced arcing; UL Listed, CSA Approved, CE marked

Product Highlights

3-pole IEC contactor, 12 A AC-3 rating, 208 to 240 V AC coil, one normally open auxiliary contact, DIN rail mount

Product Information

Standard Information

• Brand: SPRECHER & SCHUH
• Manufacturer Part Number: CA7-12-10-220W
• Country of Origin: United States

Technical Specifications

• Brand: Sprecher and Schuh
• Manufacturer Part Number: CA7-12-10-220W
• Series: CA7
• Coil Voltage: 208 to 240 V AC, 60 Hz
• Poles: 3
• Current Rating: 12 A (AC-3); 32 A (AC-1)
• Horsepower Rating: 3 HP @ 230 V; 7.5 HP @ 460 V (3-phase)
• Auxiliary Contacts: 1 normally open (1 NO)
• Terminal Type: Screw
• Mounting Type: 35 mm DIN rail
• Compatible Accessories: Top and side mount auxiliaries; CEP7 electronic overload relays
• Arc Control: Arc chutes to reduce arcing
• Approvals/Certifications: UL Listed; CSA Approved; CE Mark
• Standards: Meets IEC 60947-1
• Contact Configuration: 3 poles
• SKU: 2359070
• UPC: 00886739446971
• Condition: New
