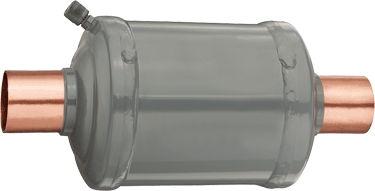

Sporlan Valves 400436 Catch-All Filter-Drier 3/8 inch ODF Suction Line C-083-S-T-HH

Product Description

The Sporlan Valves Catch-All Filter-Drier, model 400436, ensures effective moisture and acid removal in refrigeration systems, enhancing system efficiency and protection. Specially designed to handle all commercially available HCFC and HFC refrigerant/lubricant combinations, this component is crucial for maintaining purity in the system.

• Leak-proof shell and solid copper sweat fittings ensure durability and a secure fit.
• Equipped with a Schrader type pressure tap for monitoring and service convenience.
• Molded porous core of compounded desiccants for superior containment of contaminants.

Product Highlights

This Filter-Drier features advanced moisture and acid removal capabilities, with a UL listing for safety and reliability. Its design filters out scale, solder particles, carbon, sludge, and dirt, allowing minimal pressure drop across the system.

Technical Specifications

• Dimensions: 7.1 inches length x 2.8 inches width x 2.8 inches height
• Connection Ends: 3/8 inch ODF
• Capacity: 9 cu in
• Diameter: 2.62 inches
• Max Containment: Can handle various contaminants including moisture, acid, dirt, and sludge
• Item Class: SML SUC C-A or JP
• Product Group: Sealed Filter-Driers
• Vendor: Sporlan Valves
