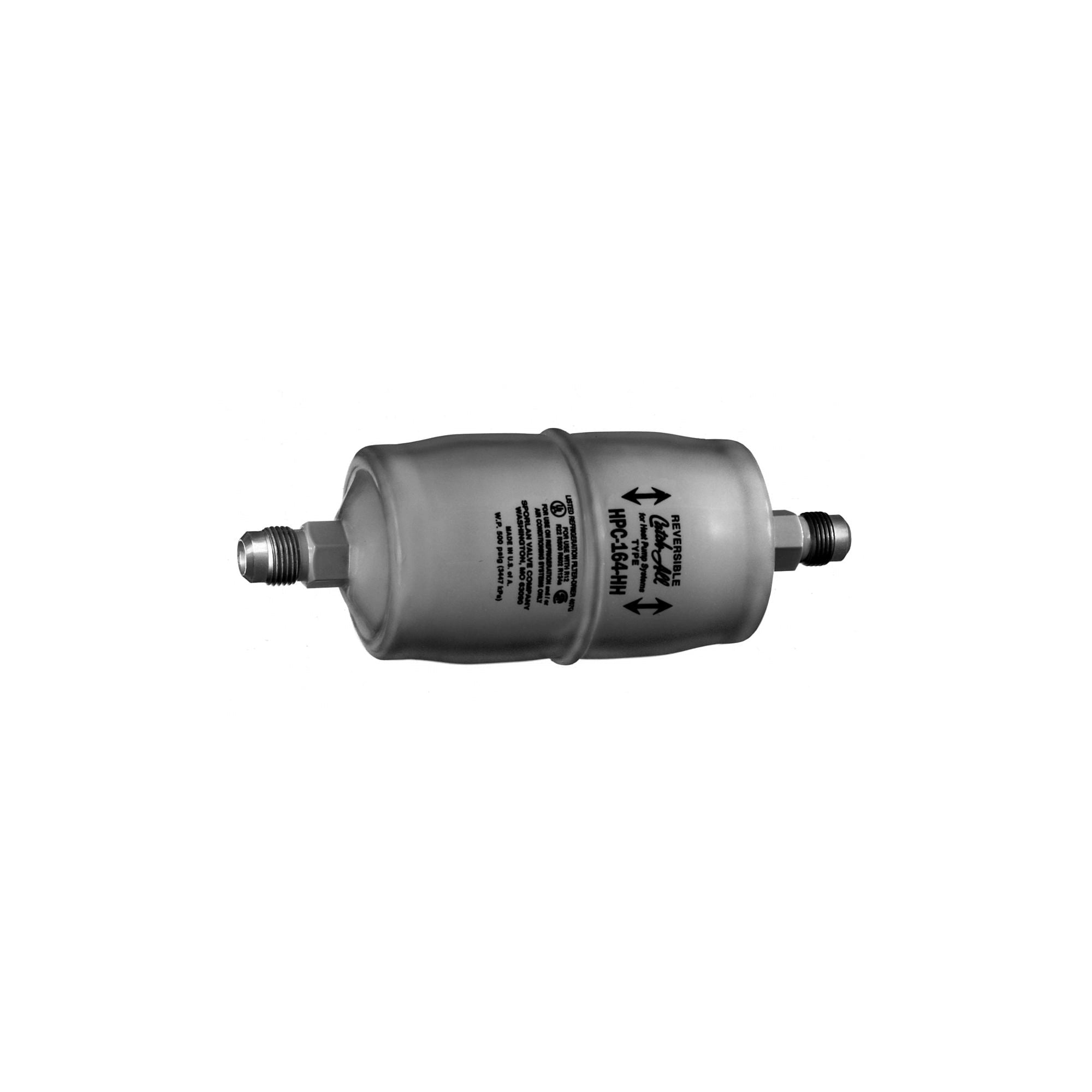

Sporlan Valve Company 404220 HPC-164-HH 1/2 SAE Liquid Line Reversible Heat Pump Filter-Drier

Product Description

The Sporlan Valve Company 404220 HPC-164-HH filter-drier is designed for refrigeration and air conditioning systems. This Catch-All filter-drier utilizes a molded porous core featuring blended desiccants for efficient moisture, acid, and foreign matter removal. The design supports bi-directional flow, making it suitable for both liquid and suction lines. It is compatible with HCFC and HFC refrigerants, providing versatility in applications.

• Removes moisture and acid from refrigerant efficiently.
• Filters out scale, solder particles, and other foreign materials.
• Designed for reversible heat pump applications.

Product Highlights

Ideal for ensuring refrigerant purity and system efficiency.

Product Information

Standard Information

• Brand: Sporlan Valve Company
• MPN: 404220

Technical Specifications

• Model: HPC-164-HH-1/2 SAE
• Line Drier Type: Liquid Line Bi-Flo
• Refrigerant Compatibility: R-22, R-407C, R-410A
• Connection Type: Flare
• Inlet Connection Size: 1/2 inch
• Outlet Connection Size: 1/2 inch
• Capacity: 14 cu in
• Length: 9.0 inches
• Width: 3.3 inches
• Height: 3.3 inches
• Weight: 2.04 lbs
• Country of Origin: USA
