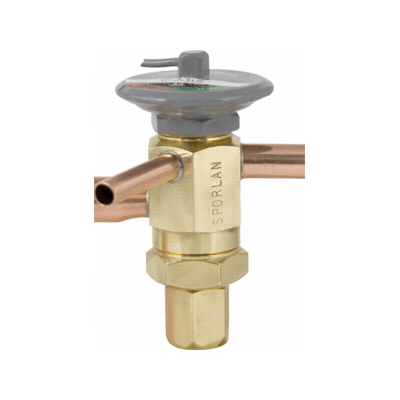

Sporlan Valve Company 20083-002 Thermostatic Expansion Valve

Product Description

The Sporlan Valve Company 20083-002 is a thermostatic expansion valve ideal for air conditioning and heat pump systems utilizing R-22 refrigerant. This valve is engineered with a balanced port construction to ensure precise flow regulation based on cooling requirements. The straight-thru body design with an adapter allows for efficient refrigerant flow management. It features internal check valves to support reverse flow in heat pump operations and is externally equalized for enhanced performance.

• Balanced port construction
• Includes internal check valves for reverse flow
• Externally equalized with a straight-thru body and adapter

Product Highlights

This thermostatic expansion valve is a suitable replacement for CBI and CBBI type valves, making it a versatile choice for HVAC professionals.

Product Information

Standard Information

• Brand: Sporlan Valve Company
• MPN: 20083-002

Technical Specifications

• Application: A/C
• Capillary Tube Length: 30 inches
• Connection Ends: ODF
• Element Size: 43
• Equalizer: External
• Inlet x Outlet Connections: 1/2 x 1/2 x 1/4 ODF
• Model: RCVE-5-GA
• Nominal Capacity: 5 Tons
• Port Size: 1/4
• Refrigerant: R-22
• Refrigerant Code: GA
• Size: 1/2 x 1/2 x 1/4
• Sporlan Number: 20083-002
• Manufacturer: Sporlan
• Part Number: 20083-002
