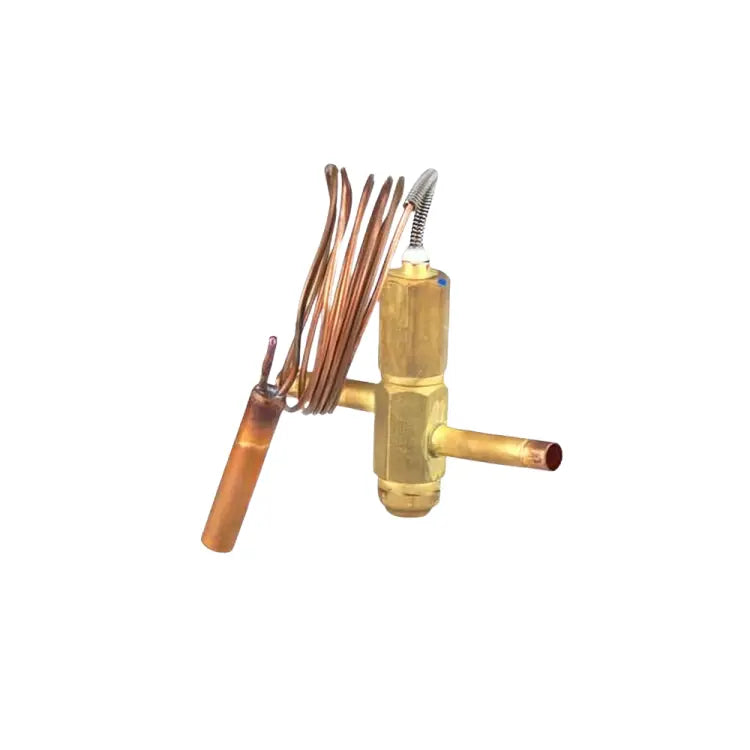

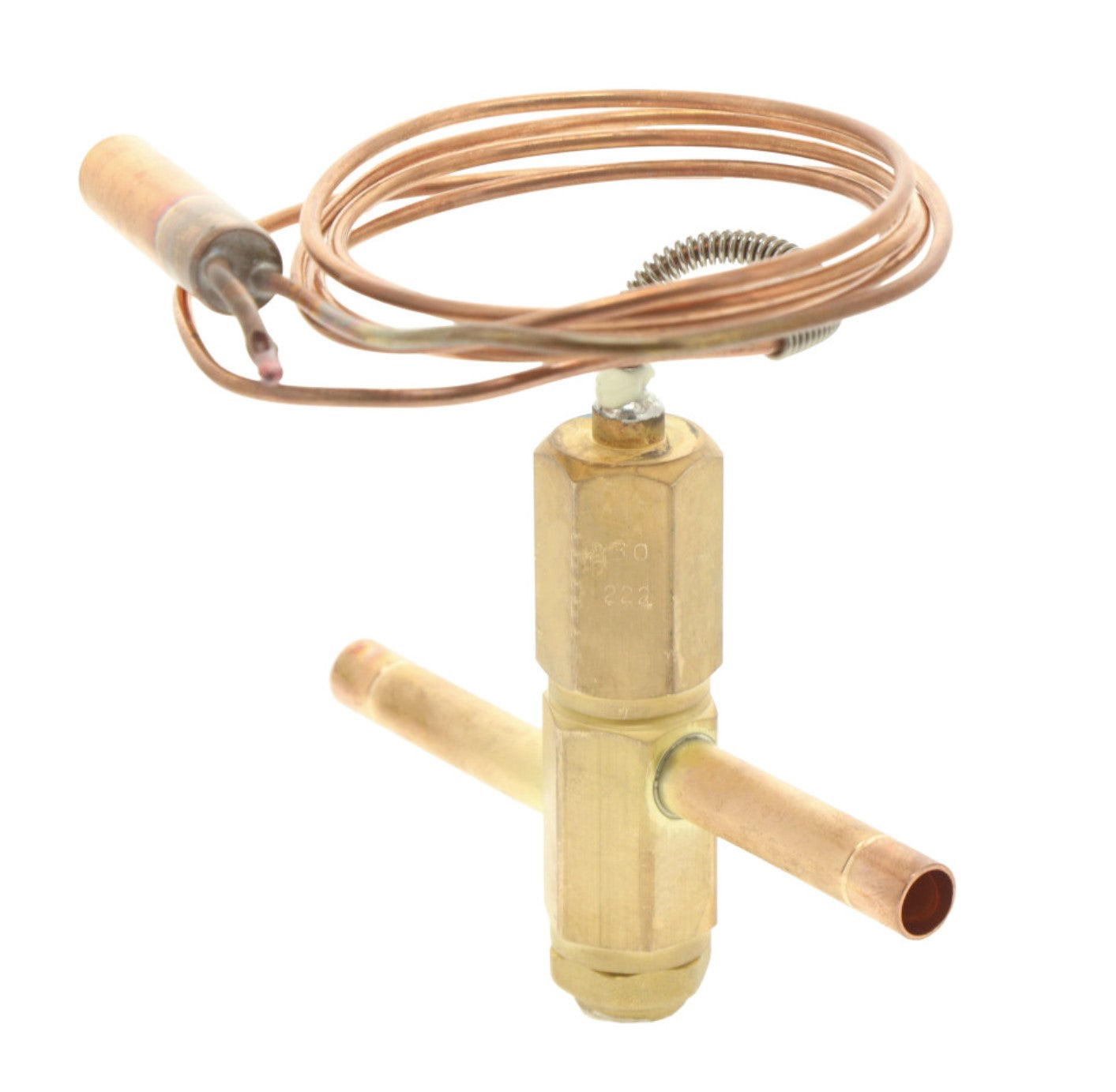

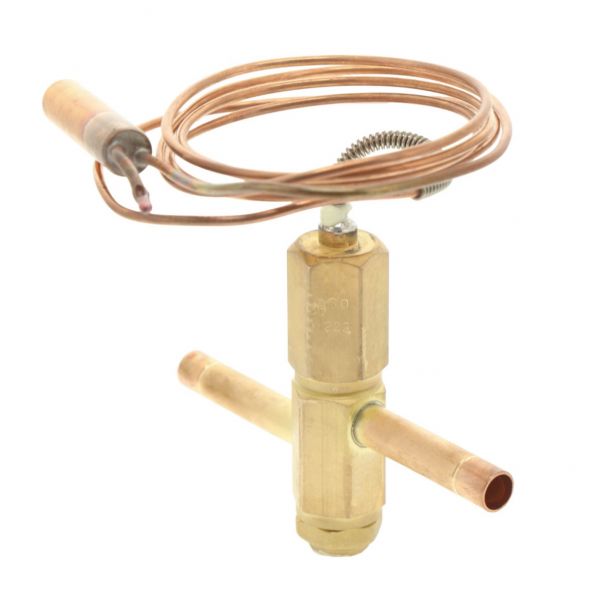

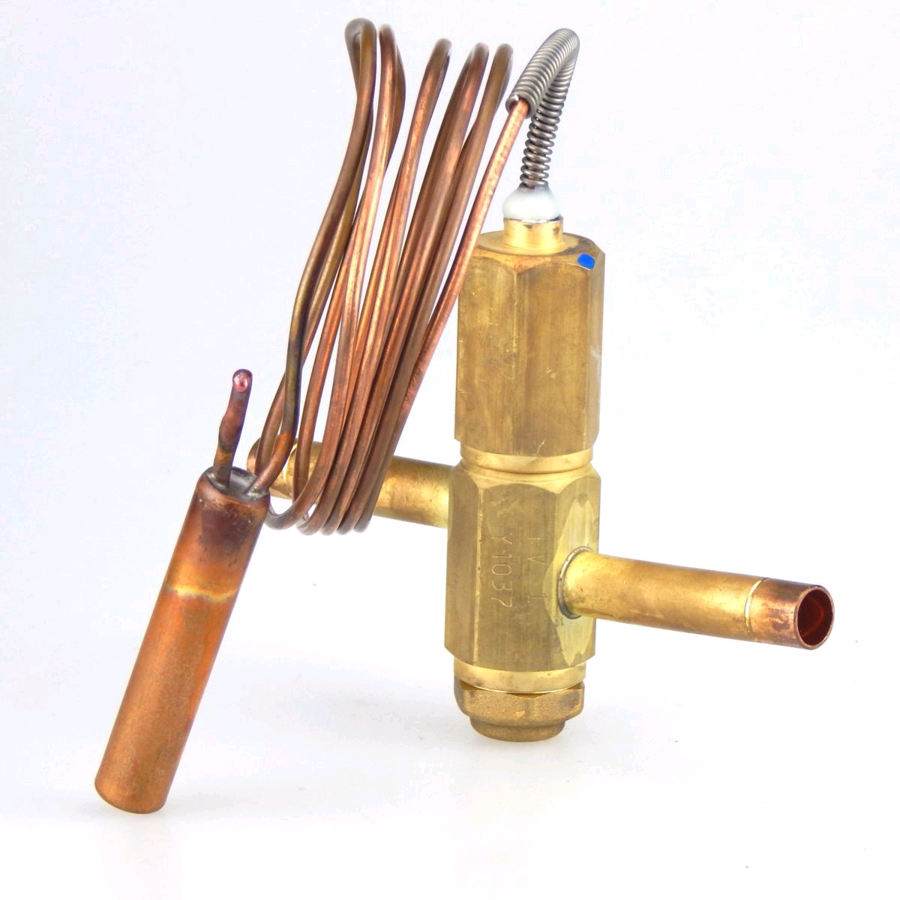

Sporlan Valve Company 154594 Thermostatic Expansion Valve

Product Description

The Sporlan Valve Company 154594 is a thermostatic expansion valve that controls refrigerant flow in response to temperature changes. It utilizes a Type F body with a built-in thermostatic element that includes a sensing bulb and bellows assembly. The hydraulic fluid within the element expands when temperatures rise, allowing for precise modulation of refrigerant. This valve is particularly suited for systems using R22 refrigerant and helps to maintain optimal compressor performance by limiting discharge temperatures.

• Constructed with a 5-foot capillary tube.
• Compatible with R22 refrigerant for effective cooling.
• Automatically adjusts refrigerant flow based on sensor temperature.

Product Highlights

This thermostatic expansion valve is critical for ensuring efficient refrigeration cycles, providing reliable operation for both residential and commercial systems.

Product Information

Standard Information

• Manufacturer: Sporlan
• Part Number: 154594

Technical Specifications

• Model: Y1037-FV-1/2-230
• Connection Ends: ODF
• Connection Size: 3/8 ODF
• Nominal Capacity: 0.5
• Capillary Tube Length: 5 feet
• Temperature Rating: 230 degrees F
• Refrigerant Type: R22
• Series: Spring Stocking
• Height: 2.3 inches
• Length: 7.3 inches
• Width: 4.8 inches
