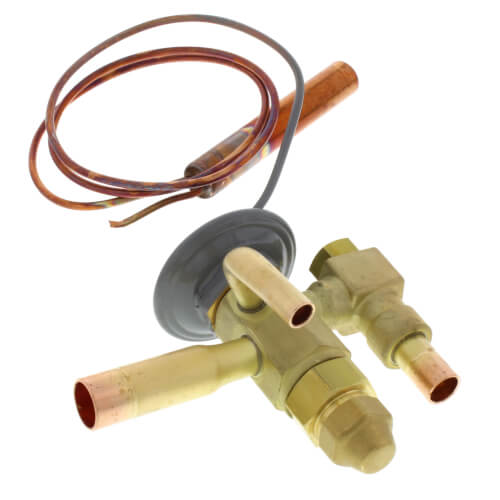

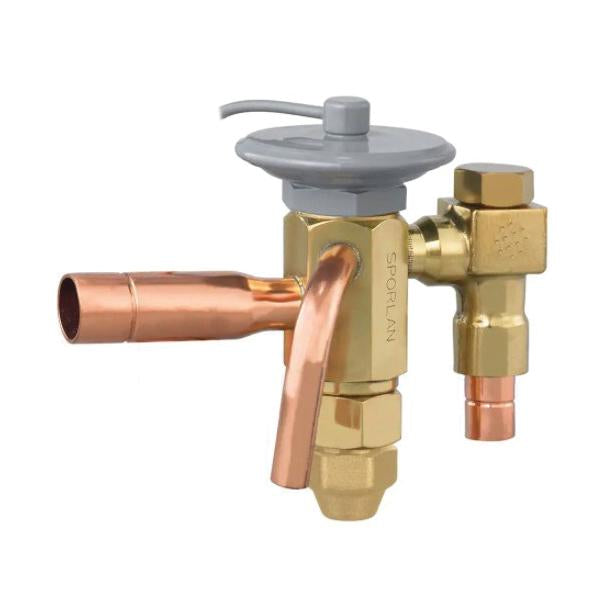

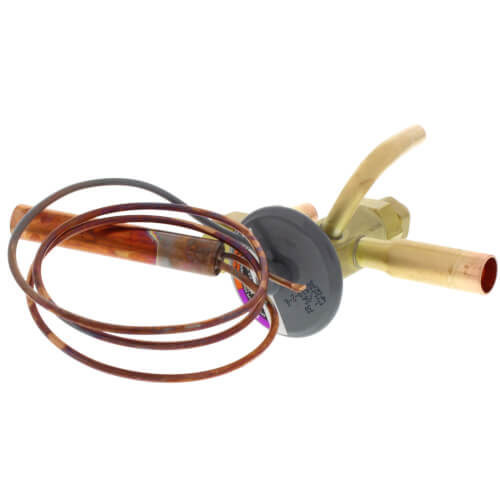

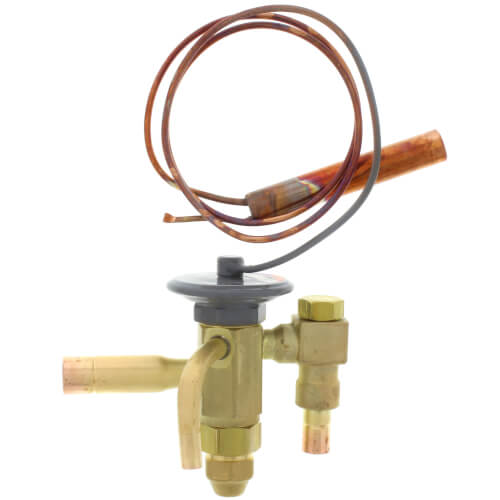

Sporlan SBFSEAZP SBFSE-A-ZP Thermal Expansion Valve 1/2 to 1 Ton

Product Description

The Sporlan SBFSEAZP Type BF-EBF-SBF balance ported thermostatic expansion valves have a brass bar stock body with flare or sweat connections and adjustable superheat. Each valve is factory tested to ensure positive leak-free performance. The balance port design provides perfect pin and port alignment and prevents pressure drop across the valve from influencing valve operation.

• Balance port design provides perfect pin and port alignment
• Thermostatic charges available to match system conditions
• Design working pressure of 450 psi (31 bar)

Product Highlights

Designed for air conditioning and refrigeration units, these valves regulate refrigerant flow by maintaining a nearly constant superheat at the evaporator outlet.

Product Information

Standard Information

• Brand: SPORLAN
• Manufacturer Part Number: SBFSEAZP

Technical Specifications

• REFRIGERANT TYPE: R-404A
• APPLICATION: Low Temp Refrigeration
• THERMOSTATIC CHARGE: ZP
• NOMINAL CAPACITY (TON): 1/2 to 1
• INLET CONNECTION: 3/8" ODF
• OUTLET CONNECTION: 1/2" ODF
• EQUALIZER METHOD: Externally Equalized
• CAPILLARY LENGTH (INCH): 30"
• STRAINER TYPE: 100 Mesh Removeable
• Inlet Size: 3/8 in
• Outlet Size: 1/2 in
• Capillary Length: 30 in
• Connection Type: ODF
• Equalizer Type: External
• Charge Type: ZP
• End Type: ODF Solder
• Pressure Rating: 450 psi
• Suitable For Use With: Air Conditioning, Refrigeration Systems
• Brand: Sporlan Controls
• MPN: SBFSEAZP
• Product Type: Expansion Valves
• Manufacturer Number: SBFSEAZP
