Sporlan 903581 ADRHE-6 7/8 Inch Discharge Bypass Valve 0-80 PSI

Product Description

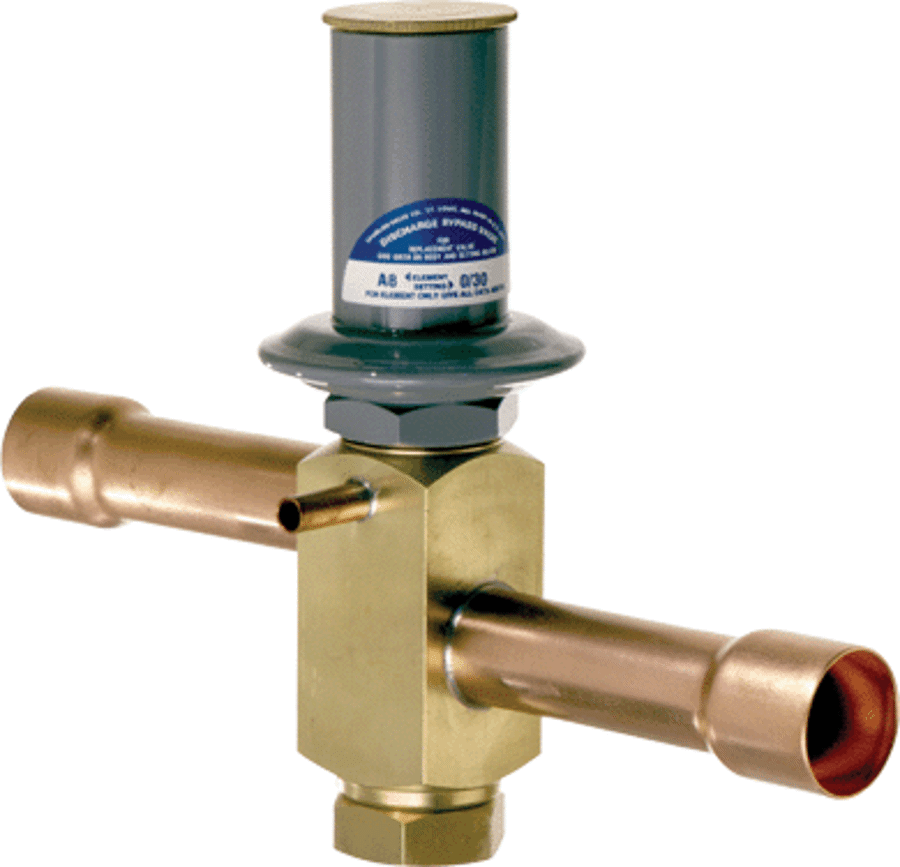

The Sporlan 903581 ADRHE-6 model is a high-efficiency discharge bypass valve ideal for controlling evaporator pressure in a wide range of HVAC applications. This durable valve is crafted with a brass body and features externally equalized connections for stable operation.

• Adjustable pressure range from 0 to 80 PSI for flexible usage
• 7/8 inch ODF solder connections ensuring secure, leak-free installation
• Robust design with a 500 psi working pressure capability ideal for various HVAC systems

Product Highlights

The valve is designed to maintain minimum evaporating pressure to prevent coil icing or compressor overload during low load conditions. It's built to accommodate settings adjustments, offering versatility to match system demands.

Product Information

Standard Information

• Brand: Sporlan
• MPN: 903581

Technical Specifications

• Type: ADRHE-6, direct and pilot operated models available
• Inlet/Outlet Size: 7/8 inch ODF
• Max Working Pressure: Up to 700 psi dependent on model
• Port Size: 3/4 inch
• Body Material: Brass
• Connection Type: Solder
