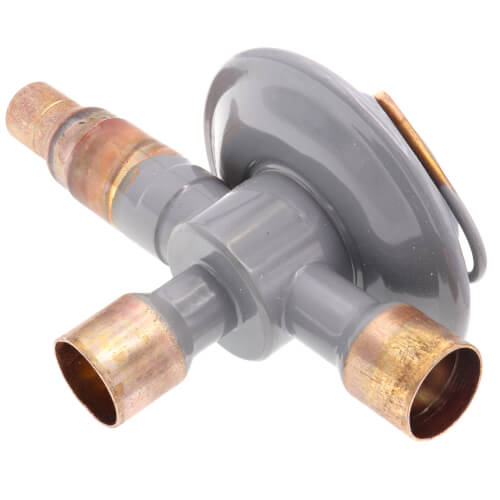

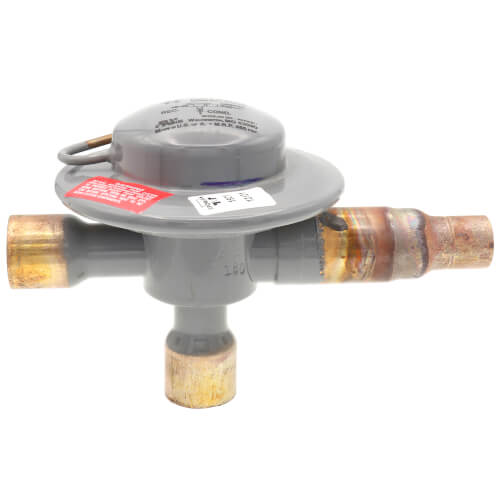

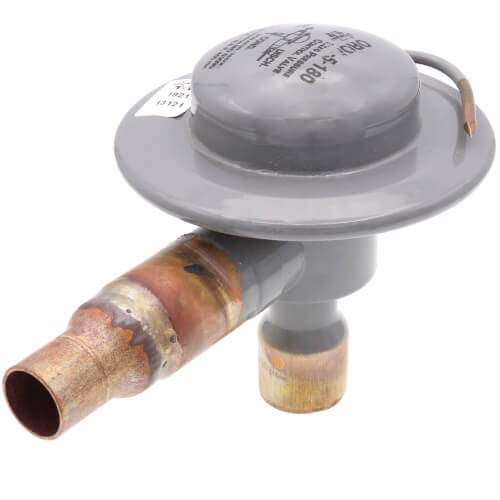

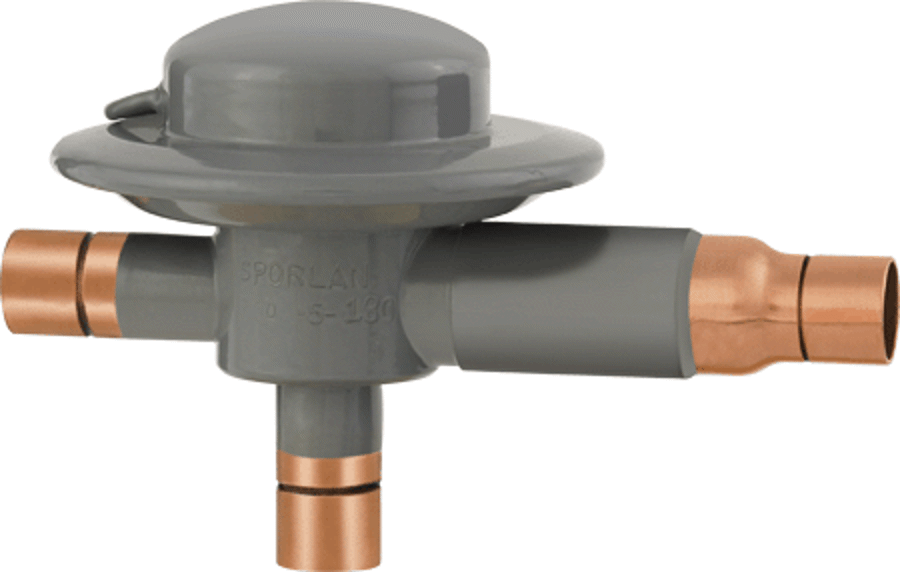

SPORLAN 902926 Head Pressure Control Valve 7/8 Inch ODF w/ 40 Mesh Strainer 180 psi

Product Description

The SPORLAN Head Pressure Control Valve, model number 902926, is expertly crafted for reliable operation in HVAC systems. This valve limits the flow of refrigerant from the condenser while regulating the flow of hot gas to maintain optimal pressure in the liquid line during low ambient conditions.

• Brass body with hermetic construction for durability.
• Equipped with a 40 mesh insertable strainer to protect against debris.
• UL Recognized for safety and reliability in professional settings.

Product Highlights

Designed for application in both the liquid and hot gas lines, this valve is crafted from high-quality brass and features a metal-to-metal seating material. It supports a maximum pressure of 450 psig, making it suitable for various industrial applications.

Product Information

Standard Information

• Brand: SPORLAN
• MPN: 902926

Technical Specifications

• Connection Type: ODF
• Port Size: 5/8 inch
• Body Material: Brass
• Operating Pressure: 180 psig
• Length: 7.3 inches
• Width: 5.0 inches
• Height: 3.5 inches
• Product Group: Pressure Regulating Valves
• Harmonized Code: 8481.80.9015
