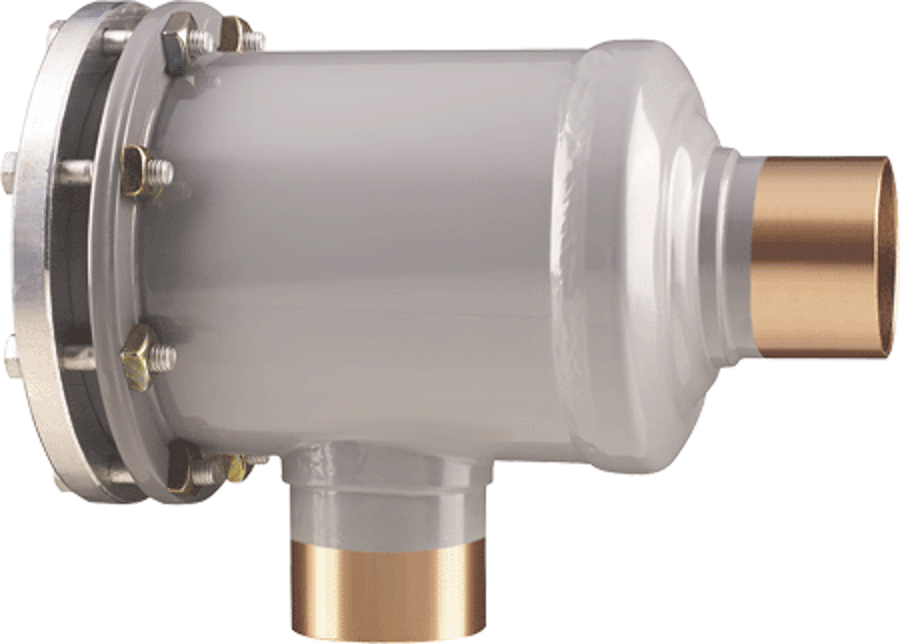

Sporlan 800512 Suction Line Filter 2-1/8 Inch

Product Description

The Sporlan Suction Line Filter, model number 800512, offers superior filtration capabilities in HVAC and refrigeration systems. This 2-1/8 inch suction line filter is designed to efficiently remove solid contaminants from the system, ensuring smooth operation and preventing potential damage to the compressor.

• Robust corrosion-resistant shell with a high flow capacity.
• Includes an access valve for easy pressure drop measurement or charging.
• Compatible with desiccant cores for system clean-up after burnout.

Product Highlights

Featuring a replaceable filter element, the Sporlan Suction Line Filter is ideal for both commercial and industrial applications. It ensures a low pressure drop across the system, which enhances overall efficiency. UL listed with copper connections, it supports a maximum pressure of 500 psi.

Product Information

Technical Specifications

• Connection Type: ODF
• Approved for: Refrigeration, Air Conditioning, Transportation, Industrial Refrigeration
• Maximum Rated Pressure: 500 psig
• Item Weight: 15.20 lbs
• Filter Area: 776 square inches
• Dimensions: Length 24 inches, Width 8 inches, Height 9 inches
