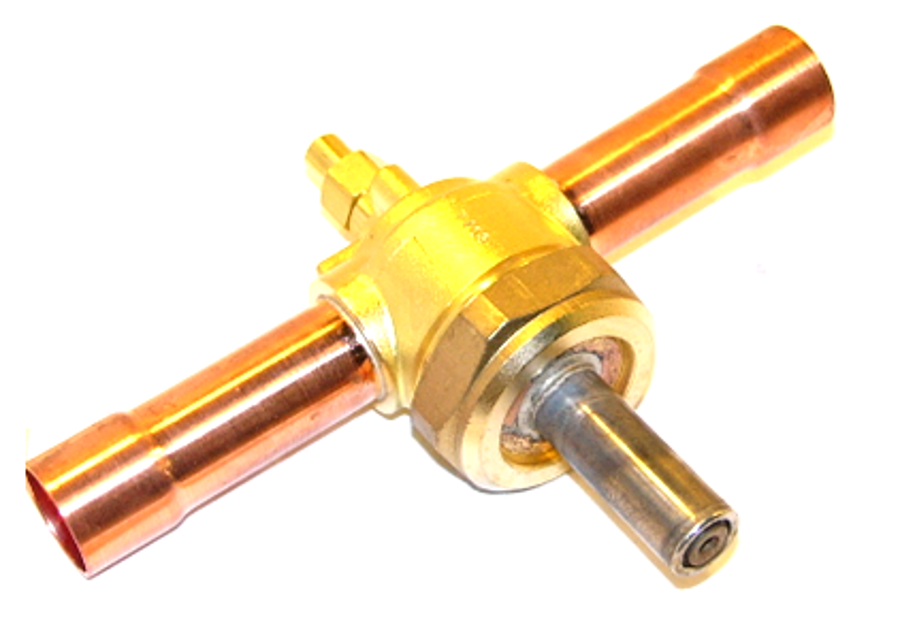

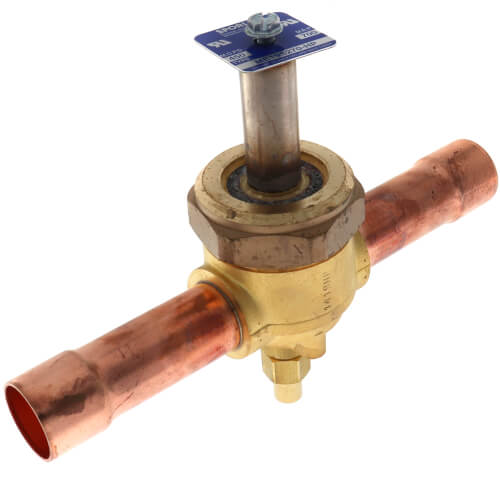

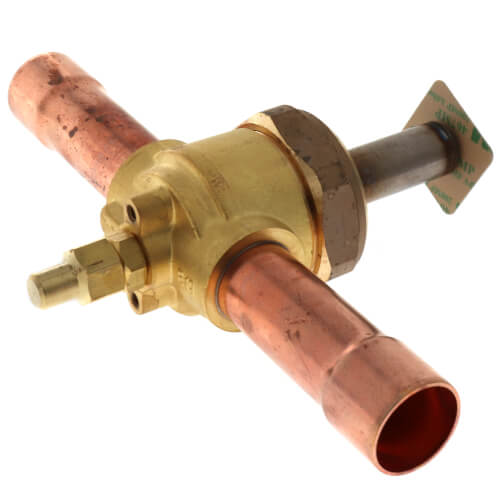

Sporlan 3591-00 Solenoid Valve, 7/8 ODF Solder Body Less Coil E Series ME19S270-HP

Product Description

The Sporlan 3591-00 is a solenoid valve designed for refrigeration applications. It features a seven-eighths inch ODF connection. This product is suitable for air conditioning and refrigeration systems. The valve operates as normally closed, opening when the coil is energized.

• Temperature range: works with R-22, R-134A, and more.
• Solder type connections are extended for easy installation.
• Factory tested for reliable, leak-free operation.

Product Highlights

This solenoid valve is ideal for both commercial and residential refrigeration applications. Its compact design allows flexibility in mounting and installation.

Product Information

Standard Information

• Brand: Sporlan
• MPN: 3591-00

Technical Specifications

• Type: Solenoid Valve
• Size: 7/8 inch
• Connection Ends: ODF Solder
• Series Type: ME19
• Material: Metal
• Manual Lift Stem: Yes
• Normally Closed: Yes
• Port Size: 19/32 inch
• Maximum Operating Pressure: 500 psi
• Certification: UL Listed, CSA Certified
