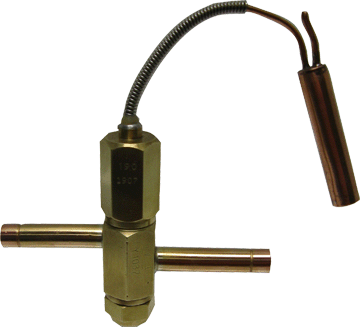

Sporlan 154597 Temp Regulator 3/8x3/8 1Ton 230deg

Product Description

The Sporlan 154597 Temp Regulator is a versatile valve designed for industrial uses. It features 3/8 inch by 3/8 inch connection size, 1Ton capacity, and a 230-degree temperature regulation.

• 3/8x3/8 connection size
• 1Ton capacity
• 230-degree temperature regulation

Product Highlights

This product is used to limit compressor discharge temperature. It features a Type F body and a thermostatic element consisting of a sensing bulb and a bellows assembly. The element is charged with a hydraulic fluid that expands as its temperature increases, and it modulates the flow of refrigerant in response to bulb temperature only. The valve does not have an equalizer connection and is not influenced by pressure.

Product Information

Standard Information

• Brand: Sporlan
• MPN: 154597

Technical Specifications

• Size: 3/8 x 3/8
• Connection Ends: ODF
• Length: 7.3 inches
• Width: 4.8 inches
• Height: 2.3 inches
• Master Product Group: Thermostatic Expansion Valves
• Product Group: Misc TEVs
• Item Class: TREV
• Price Group: TRV
• Harmonized Code: 8481.80.9045
• Pieces Per Case: 25
• Case Weight: 31 lbs
• Case Length: 15.5 inches
• Case Width: 12.5 inches
• Case Height: 11 inches
• Cases Per Pallet: 27
• Cases Per Layer: 9
• Pallet Weight: 887 lbs
• Pallet Length: 48 inches
• Pallet Width: 40 inches
• Pallet Height: 50 inches
