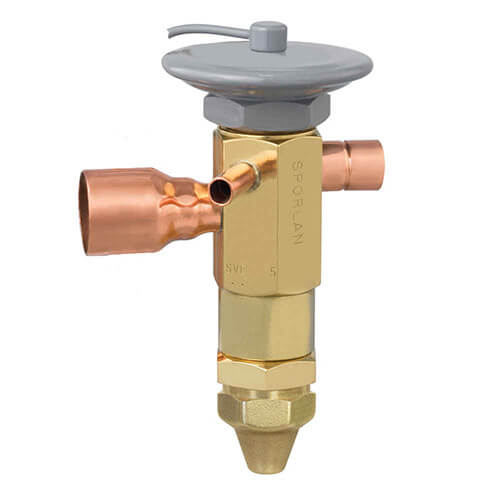

Sporlan 128570 Thermal Expansion Valve SVE-15-GA 5/8 Inch x 1-1/8 Inch ODF 60 Inch Capillary 15 Ton

Product Description

Enhance your HVAC system's efficiency with the Sporlan SVE-15-GA Thermal Expansion Valve. Designed for professional air conditioning and refrigeration applications, this valve controls the amount of refrigerant released into the evaporator, thereby boosting system effectiveness and reliability.

• Brass body with ODF connections for durability and leak-free operation.
• Adjustable superheat and replaceable power element adapt to varying system conditions.
• Externally equalized for precise control in any setup.

Product Highlights

The Sporlan SVE-15-GA is ideal for various applications including residential, commercial, and transportation air conditioning systems, as well as refrigeration units like walk-in coolers and freezers. It supports refrigerants including R-422D, R-407A, R-407C, and R-22, making it a versatile choice for modern HVAC requirements.

Product Information

Standard Information

• Refrigerant Type: R-22, R-407A, R-407C, R-422D
• Application: Air Conditioning
• Capacity: 15 Ton

Technical Specifications

• Inlet Size: 5/8 inch ODF
• Outlet Size: 1-1/8 inch ODF
• Capillary Length: 60 inches
• Equalizer: External
• Body Material: Brass
• Connection Type: ODF
• Thermostatic Charge: GA
• Design Pressure: 450 psi
