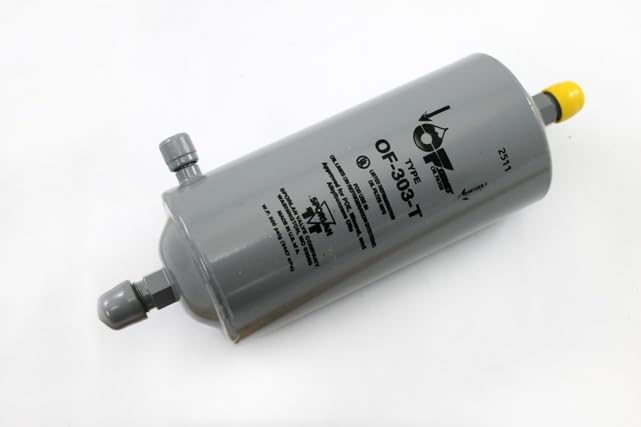

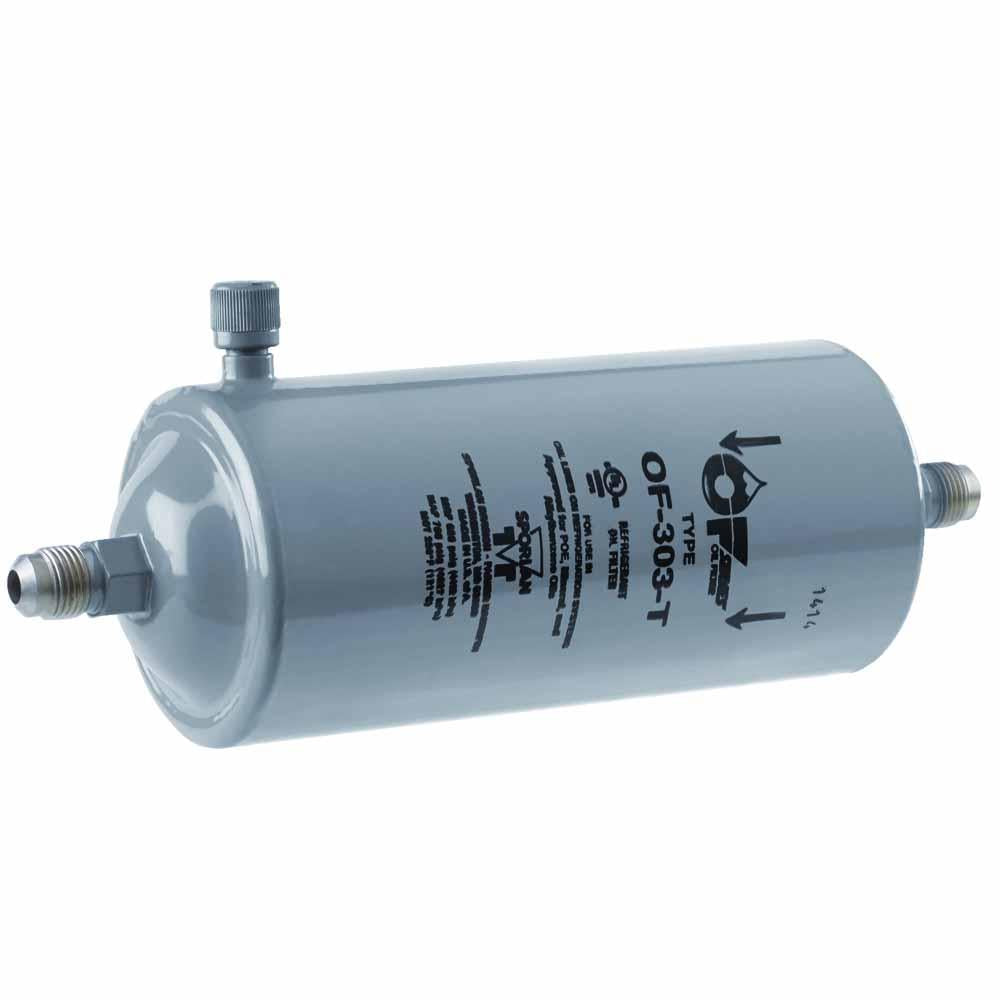

Sporlan 960071 Oil Filter 500psi 3/8 inches SAE w/ Tap

Product Description

The Sporlan 960071 is an oil filter designed for refrigeration and air conditioning systems. This OF Series oil filter features a 3/8 inch SAE flare connection and includes a 1/4 inch SAE pressure tap for monitoring. It is engineered to remove 3 micron sized particles with 99% efficiency, ensuring clean oil returns to compressors. With a maximum operating pressure of 700 psig, it maintains sufficient flow capacity at low pressure drop.

• Includes an access fitting to assist with pressure drop monitoring.
• Designed for 99% efficiency in removing 3 micron particles with low pressure drop.
• Ensures clean POE, mineral, or alkylbenzene oil returns to compressors.

Product Highlights

Sporlan OF Series oil filter with access fitting, UL Listed for safety.

Product Information

Standard Information

• Brand: SPORLAN
• Manufacturer Part Number: 960071
• Country of Origin: USA

Technical Specifications

• Brand: Sporlan
• MPN: 960071
• Product Type: Oil Filter with Access Fitting
• Series: OF Series
• Model Number: OF-303-T
• Connection Type: 3/8" SAE Flare
• Maximum Operating Pressure: 48.3 bar, 700 psig
• Drain Option: Yes
• Filter Area: 325 inch2
• Additional Options: Includes 1/4" SAE Pressure Tap
• Product Grade: Replacement Part
• Micron Rating: 3 um
