Sporlan 953703 pressure sensor low SMART Pro/R 300 PSI

SPORLAN
Brand: SPORLAN
SKU: 953703
Availability: In Stock

Ships same day if ordered by 12 pm

%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
$456.34
$456.34
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

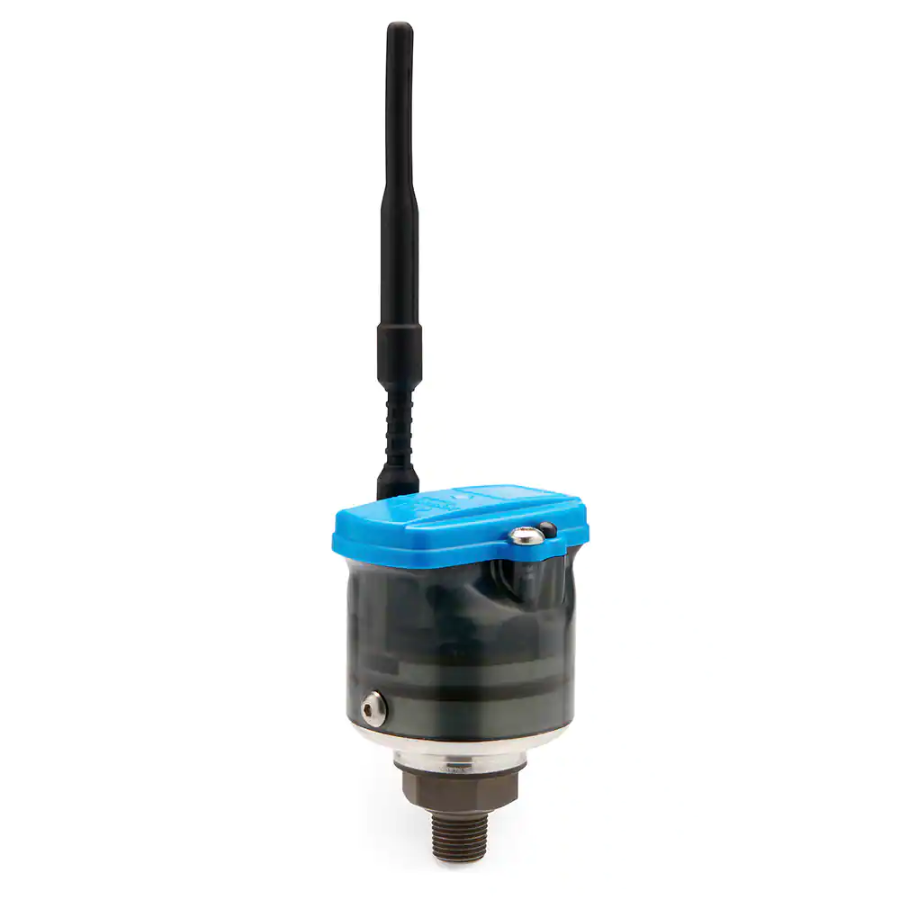

The Sporlan 953703 SMART Pro/R Low Side Pressure Transducer is a pressure sensor for refrigeration and air conditioning applications. It operates on a single, replaceable CR123A battery and features a 1/8 inch NPT Male connection thread. This transducer offers high accuracy of ± 0.75% of full scale and a resolution of 0.1 psig. It has a pressure measurement range of 0 to 300 psig and connects via Bluetooth Low Energy V4.0. It is IP65 rated for dust and water jet protection.

  • Designed for refrigeration and air conditioning applications with a 0 to 300 psig pressure measurement range.
  • Features Bluetooth Low Energy V4.0 connectivity and a 1/8 inch NPT Male connection thread.
  • Powered by a replaceable CR123A battery, offering ± 0.75% accuracy and IP65 ingress protection.

Product Highlights

This low-side pressure transducer integrates with SMART Pro/R service tools for wireless diagnostic capabilities in HVAC/R systems.

Product Information

Standard Information

  • Brand: SPORLAN
  • Manufacturer Part Number: 953703

Technical Specifications

  • Brand: Sporlan
  • MPN: 953703
  • Application Type: Pressure Sensor
  • Product Type: SMART Pro/R Low Side Pressure Transducer (300 PSIG)
  • Power Source: Single, CR123A Replaceable Battery
  • Battery Type: CR123A- Replaceable
  • Connection Thread Size: 1/8 inch (NPT Male)
  • Accuracy: ± 0.75% of Full Scale
  • Resolution: 0.1 psig, 0.1 barg
  • Minimum Operating Temperature: -40 F Operating, -40 C Operating
  • Maximum Operating Temperature: 140 F Operating, 60 C Operating
  • Minimum Storage Temperature: -40 F Without battery, -40 C Without battery
  • Maximum Storage Temperature: 160 F Without battery, 71 C Without battery
  • Proof Pressure: 500 psig, 34.5 barg
  • Pressure Measurement Range: 0 to 300 psig, 0 to 20.7 barg
  • Ingress Protection Rating: IP65 Dust tight and tolerant to some water jetting
  • Wireless Connection Type: Bluetooth Low Energy V4.0
  • Certifications: FCC / IC / CE Standards
  • Compatible With: SMART Pro/R SMART Service Tools
