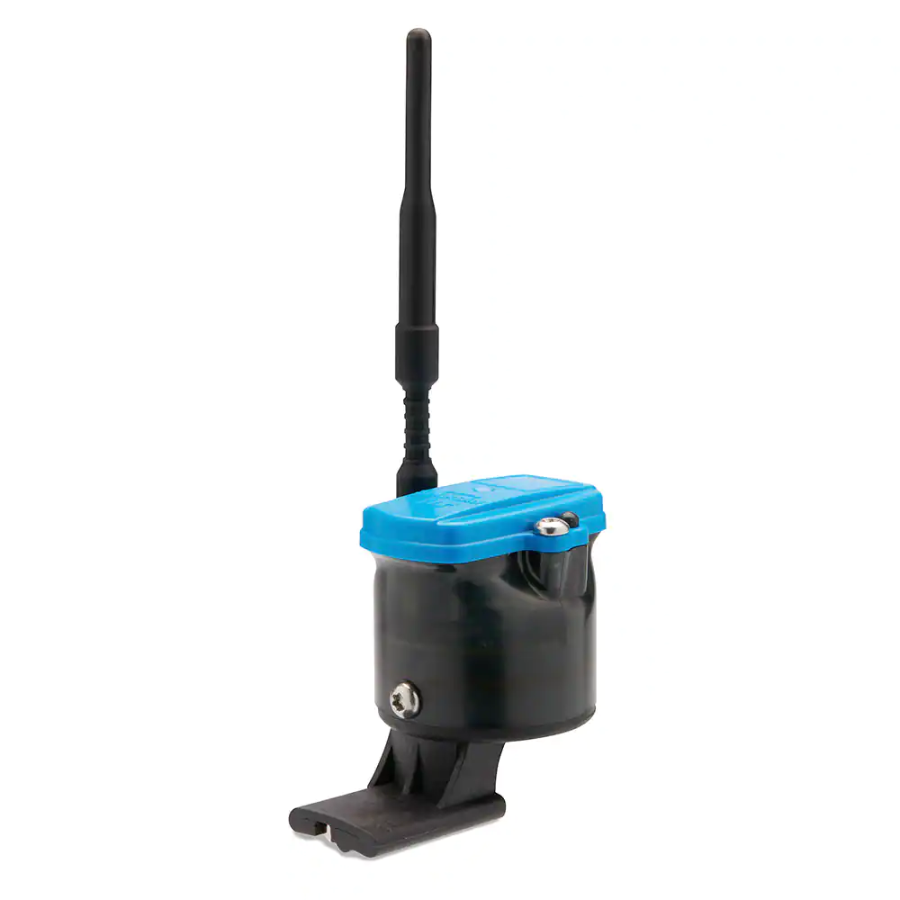

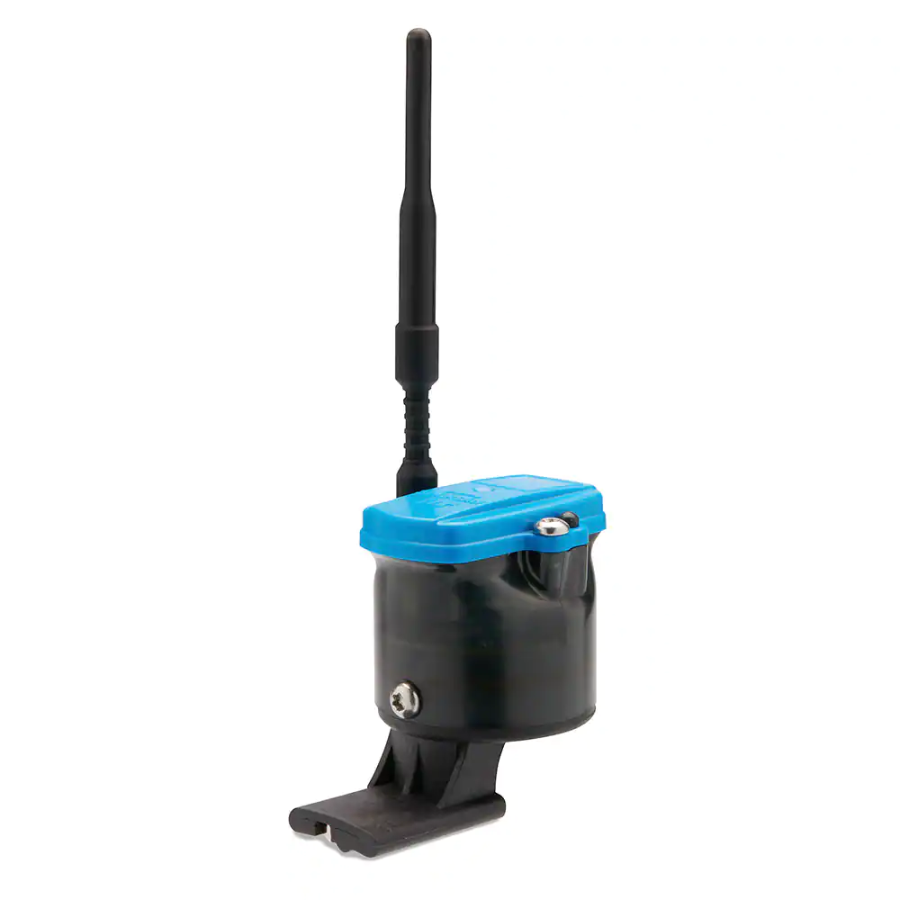

Sporlan 953702 Temperature Sensor, Smart Pro/R

Product Description

The SPORLAN 953702 Temperature Sensor, Smart Pro/R, is designed for faster and simpler diagnostic readings. This SMART Pro/R tool calculates and stores recorded data, offering hose-free and wire-free operation. It features Bluetooth Low Energy V4.0 connectivity and is powered by a single, replaceable CR123A battery. The sensor provides an accuracy of ± 2.4 °F / ± 1.3 °C and a resolution of 0.1 °F / 0.1 °C, measuring line/surface temperatures from -40°F to 230°F.

• Simple, app-supported readings with hose-free connections.
• Instant data calculations plus export and storage capabilities.
• Freedom to read and record data remotely.

Product Highlights

SMART Pro/R Service Tool for efficient temperature diagnostics and data management.

Product Information

Standard Information

• Brand: SPORLAN
• Manufacturer Part Number: 953702
• Country of Origin: USA

Technical Specifications

• Certifications: FCC, IC, CE Standards
• Application Type: Temperature
• Battery Type: CR123A Replaceable
• Connection Thread Size: 1/8 inch (NPT Male)
• Accuracy: ± 2.4 °F, ± 1.3 °C
• Resolution: 0.1 °F, 0.1 °C
• IP Rating: IP65
• Connectivity: Bluetooth Low Energy V4.0
• Product Type: SMART Pro/R Temperature Clamp
• Sensor Type: NTC Thermistor
• Ambient Operating Temperature Range: -40°F to 140°F (-40°C to 60°C)
• Line/Surface Operating Temperature Range: -40°F to 230°F (-40°C to 110°C)
• Storage Temperature Max (Without Battery): 160 °F (71 °C)
• Storage Temperature Min (Without Battery): -40 °F (-40 °C)
• Line Sizes: 1/4" through 3-1/8" OD (6mm through 85mm), with included cable-tie. Larger sizes possible with user provided straps, clamps, etc. A minimum contact force of 10 lbs. (4.5 kg) is required for best accuracy
• Battery Life: 2,000 hours with battery provided and nominal 75°F / 24°C environment
