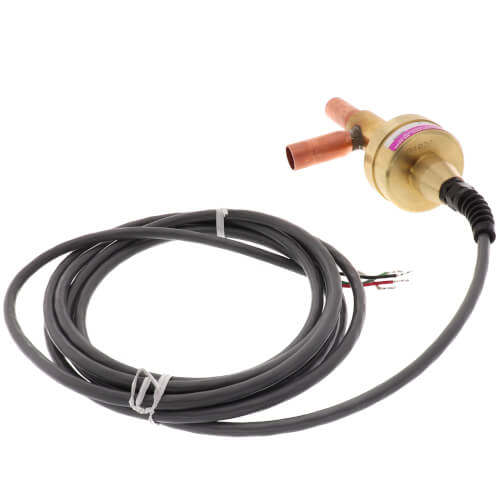

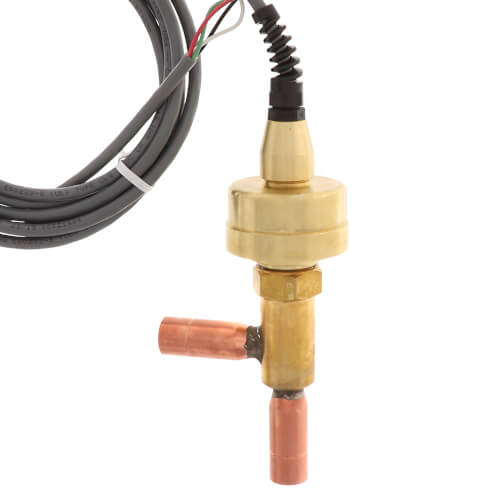

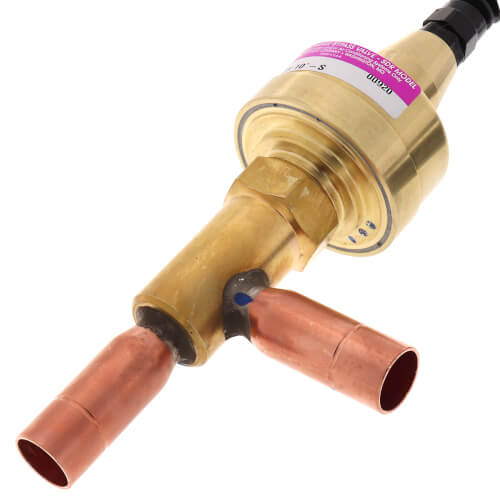

Sporlan 930023 SDR-3X 5/8 inch Electronic Discharge Bypass Valve with 10 Ft Cable

Product Description

The Sporlan 930023 SDR-3X Electronic Discharge Bypass Valve is a critical component designed to provide precise control of discharge gas bypass in HVAC systems. This valve, featuring a 5/8 inch ODF angle with a 10-foot cable, is perfect for applications requiring exact temperature management.

• High resolution stepper motor driven valve for accurate control.
• Robust design suitable for CFC, HCFC, and HFC refrigerants.
• Low power consumption of 4 Watts, enhancing energy efficiency.

Product Highlights

This valve operates efficiently with capacities up to 40 tons of R-410A, ensuring reliable performance across both commercial and residential HVAC systems. It's engineered to function seamlessly with Sporlan's Temperature Control or Interface Boards.

Product Information

Standard Information

• Brand: Sporlan
• Model: 930023
• Type: Electronic Discharge Bypass Valve

Technical Specifications

• Connection Size: 5/8 inch ODF
• Configuration: Angle
• Motor Type: 2 Phase Permanent Magnet, 2 Coil Bipolar
• Minimum Ambient Temperature: -40 degrees Fahrenheit
• Minimum Fluid Temperature: -40 degrees Fahrenheit
• Cable Length: 10 feet
• Resolution (Steps): 3193
