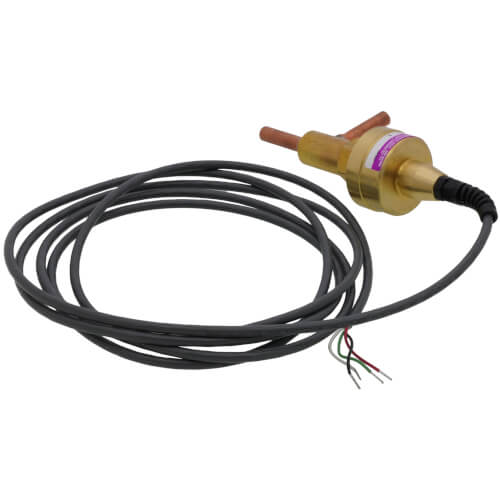

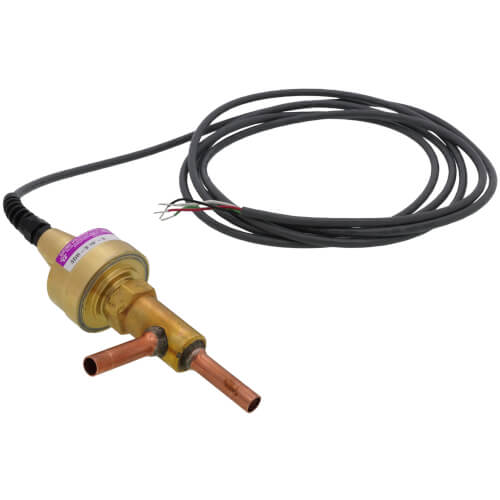

SPORLAN 930002 SDR-3 3/8 Inch ODF Angle Electronic Discharge Bypass Valve with 10 Feet Cable

Product Description

The Sporlan 930002 SDR-3 3/8 inch ODF Angle Electronic Discharge Bypass Valve is an advanced control device featuring a 2 Phase Permanent Magnet motor and a 10 feet cable. Designed for HVAC systems, it ensures precise regulation of discharge gas bypass, crucial for efficient system performance.

• High resolution 3193 steps actuator for precise control.
• Operates effectively in environments as cold as minus 40 degrees Fahrenheit.
• Compatible with CFC, HCFC, and HFC refrigerants, accommodating up to 40 tons of R-410A.

Product Highlights

This electronic valve integrates easily with digital controls or building management systems, offering a reliable solution for your HVAC regulation needs. It features robust, corrosion-resistant materials, ensuring durability and a long service life.

Product Information

Technical Specifications

• Valve Type: SDR-3
• Inlet/Outlet Connection: 3/8 inch ODF
• Motor Type: 2 Phase Permanent Magnet- 2 Coil Bipolar
• Resolution (Steps): 3193
• Min Ambient Temp: -40 degrees Fahrenheit
• Min Fluid Temp: -40 degrees Fahrenheit
• Power Consumption: 4 Watts
