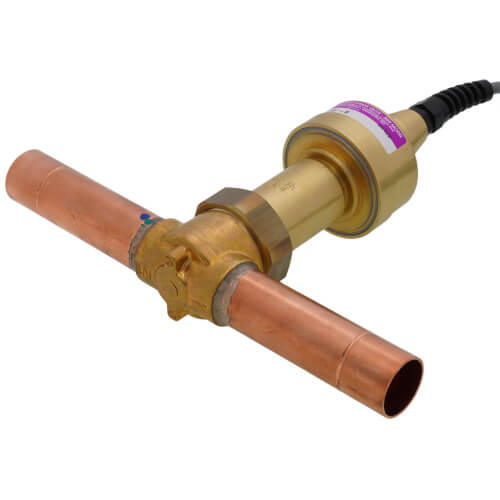

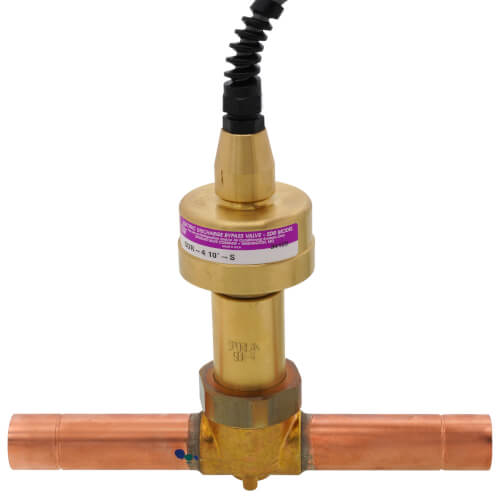

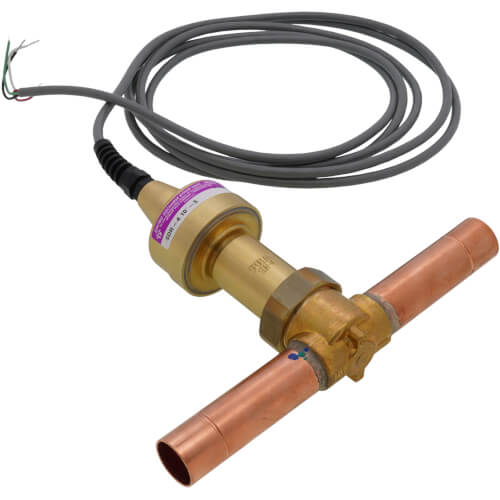

Sporlan 930000 SDR-4 7/8 ODF Straight Through Electronic Discharge Bypass Valve w/ 10 Ft. Cable

Product Description

The Sporlan 930000 SDR-4 7/8 ODF Straight Through Electronic Discharge Bypass Valve with 10-foot Cable is designed for precise control in discharge gas bypass applications. This valve features a high-resolution stepper motor for accurate regulation. It is primarily used in refrigeration and HVAC systems, offering reliable performance and tight shutoff when closed.

• Accurate control with stepper motor
• Works with various refrigerants including CFC, HCFC, and HFC
• Low power consumption of 4 watts

Product Highlights

The Sporlan 930000 SDR-4 valve provides reliable, precise control for discharge gas bypass applications. It pairs well with Sporlan pressure and temperature controls or interface boards.

Product Information

Standard Information

• Brand: Sporlan Controls
• Category: Discharge By-Pass Valves
• Item: Straight Through Bypass Valve; 10 Ft Cable, 7/8 inches
• Country of Origin: United States

Technical Specifications

• MPN: 930000
• Inlet Connection: 7/8 ODF
• Outlet Connection: 7/8 ODF
• Resolution: 6386 steps
• Configuration: Straight Through
• Motor Type: 2 Phase Permanent Magnet-2 Coil Bipolar
• Min Ambient Temperature: -40°F
• Min Fluid Temperature: -40°F
• Power Consumption: 4 Watts
• Cable Length: 10 feet
• Compatible Refrigerants: CFC, HCFC, HFC
