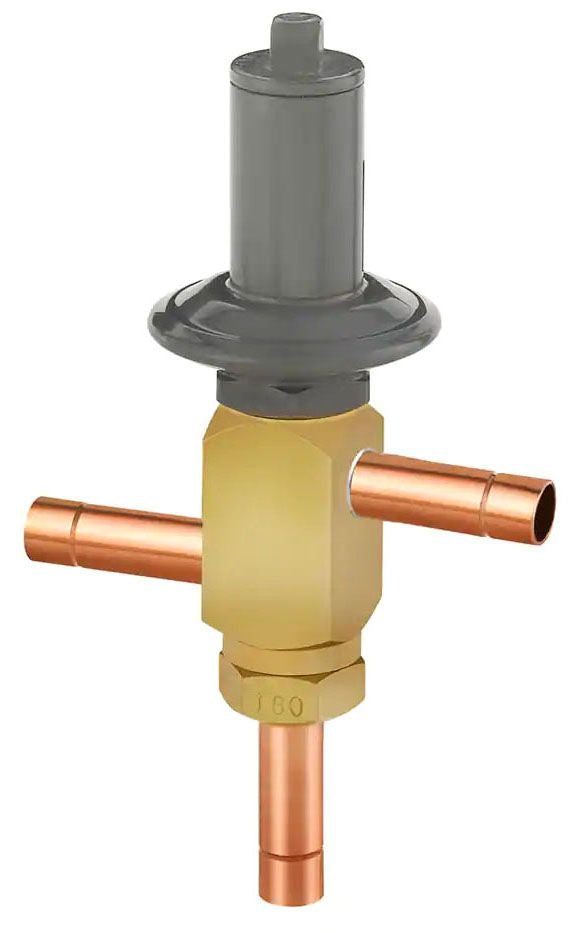

Sporlan 903038 LAC-4-180 Head Pressure Control Valve 180 PSIG 1/2 Inch ODF (LAC-4-180-1/2-ODF)

Product Description

The Sporlan 903038 is a LAC-4-180 head pressure control valve for air conditioning and refrigeration systems, factory set to 180 PSIG. It limits refrigerant flow from the condenser and regulates hot gas flow around the condenser to the receiver during low ambient conditions. The valve features 1/2 inch ODF soldered ports, a brass body with copper end fittings, a metal seat and domed steel element, and a metal-to-metal knife edge joint. Rated to 500 PSIG and supplied without a strainer.

• Head pressure, low ambient control; standard factory setting 180 PSIG; pressure rating 500 PSIG
• 1/2 inch ODF soldered discharge, condenser and receiver ports; brass body; copper end fittings; domed steel element
• Metal-to-metal knife edge joint; metal seat; designed to limit condenser refrigerant flow and regulate hot gas to receiver; no strainer supplied

Product Highlights

Head pressure control valve for AC and refrigeration with 1/2 inch ODF ports, brass body, 180 PSIG factory setting and 500 PSIG rating.

Product Information

Standard Information

• Brand: SPORLAN
• Manufacturer Part Number: 903038
• Country of Origin: United States

Technical Specifications

• Brand: Sporlan
• Manufacturer Part Number: 903038
• Alternate Part Number: LAC-4-180-1/2-ODF
• Series/Model: LAC-4
• Product Name: Pressure regulating valve / Head pressure control valve
• Type: Head pressure, low ambient control
• Nominal Size: 1/2 Inch x 1/2 Inch x 1/2 Inch
• Port Size: 1/2 Inch
• End Connection: ODF soldered x ODF soldered x ODF soldered
• Body Material: Brass
• Seat Material: Metal
• Element Type: Domed steel
• End Fitting Material: Copper
• Standard Factory Setting: 180 PSIG
• Pressure Rating: 500 PSIG
• Strainer Supplied: No
• Application: Air conditioning and refrigeration systems
• Features: Metal-to-metal knife edge joint; limits refrigerant flow from condenser and regulates hot gas flow around condenser to receiver during low ambient conditions
• Applicable Standard: UL SA-5460
• Country of Origin: United States
• UNSPSC Code: 41112404
