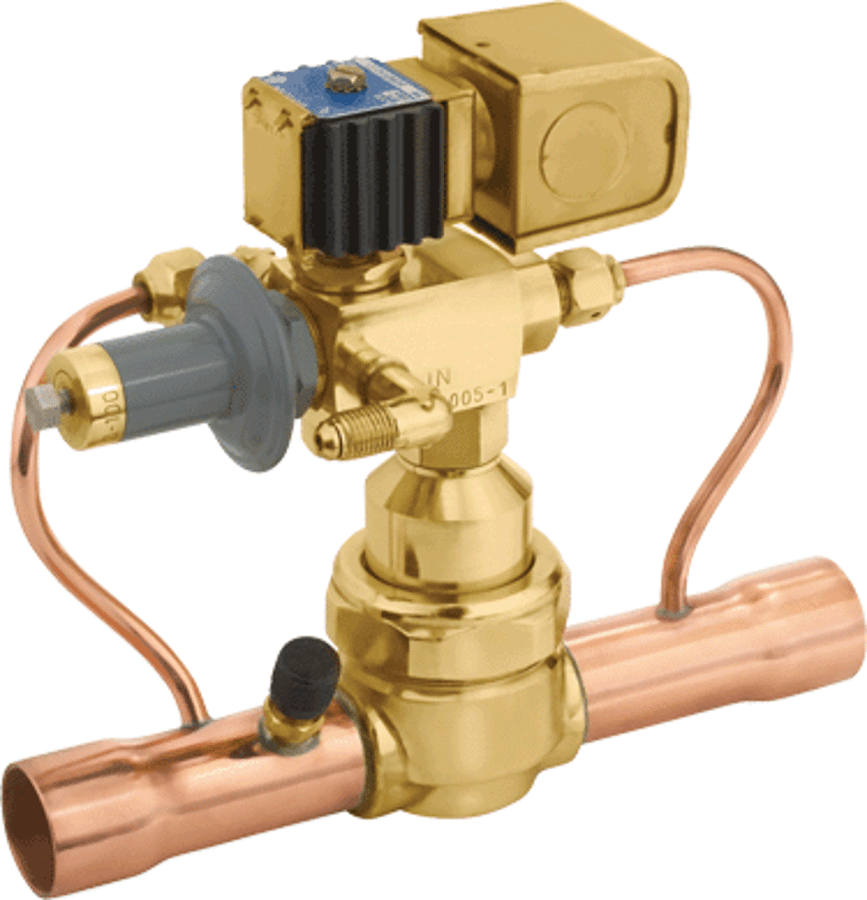

Sporlan 901611 Evaporator Pressure Regulating Valve 1-1/8 ODF SORIT-12 DA

Product Description

The Sporlan 901611 Evaporator Pressure Regulating Valve is designed to maintain consistent pressure levels in refrigeration systems. This valve opens on the rise of inlet pressure and features a non-electric, pilot-operated mechanism powered by high-side pressure. It allows for adjustable settings up to one hundred fifty psig, making it suitable for various applications.

• Adjustable settings up to 150 psig
• Normally open design for easy system evacuation
• Maximum fluid temperature of 240 degrees Fahrenheit

Product Highlights

This valve is ideal for HVAC professionals needing reliable pressure regulation in evaporator systems.

Product Information

Standard Information

• Brand: Sporlan
• MPN: 901611

Technical Specifications

• Size: 1-1/8 inches
• Type: Valve
• Connection Ends: 1-1/8 ODF
• Pressure Rating: 0 to 100 psig
• Maximum Rated Pressure: 450 psig
• Maximum Ambient Temperature: 120 degrees Fahrenheit
• Maximum Fluid Temperature: 240 degrees Fahrenheit
• Minimum Ambient/Fluid Temperature: -40 degrees Fahrenheit
