Sporlan Valves 900591 Crankcase Pressure Regulating Valve 0 to 60 psig 5/8 SAE Adjustable Crankcase Pressure

Product Description

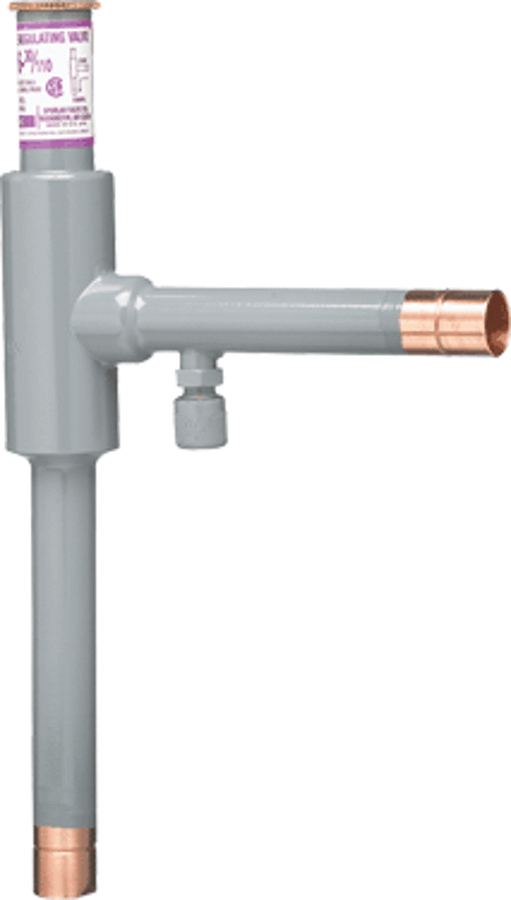

The Sporlan Valves 900591 Crankcase Pressure Regulating Valve is specifically designed to prevent overloading of the compressor motor by limiting crankcase pressure during and after defrost cycles or after normal shutdown. This valve is essential for maintaining optimal operations within HVAC systems.

• Prevents compressor motor overloading
• Adjustable crankcase pressure
• Maximum rated pressure of 400 psig

Product Highlights

This crankcase pressure regulating valve features brass bellows and body for durability and hermetic construction. Suitable for a wide range of HVAC applications.

Product Information

Standard Information

• Brand: Sporlan Valves
• Model Number: 900591

Technical Specifications

• Size: 5/8 inches SAE
• Material: Brass
• Pressure Rating: 0 to 60 psig
• Maximum Rated Pressure: 400 psig
• Length: 10.5 inches
• Width: 6.4 inches
• Height: 1.6 inches
• Connection Ends: SAE
• UL Listed
• CSA Certified
