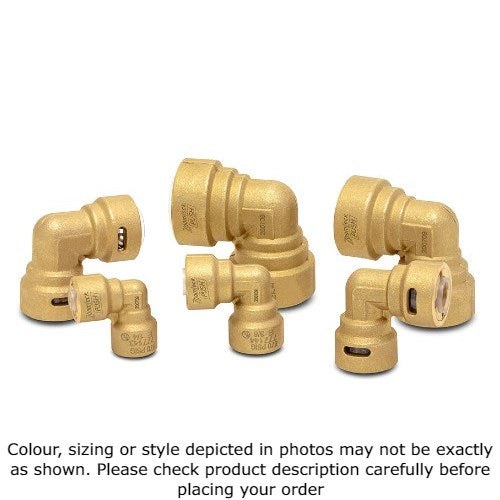

Sporlan 777144 Zoomlock 3/8 Push-to-connect 90 Degree Elbow

Product Description

The SPORLAN 777144 is a ZoomLock push-to-connect removable 90 degree elbow designed for use in HVACR refrigerant line installations. Made from brass, this fitting allows licensed HVAC technicians to create secure, leak-free connections without a brazing torch, press tool, or jaw set. The push-fit design accepts 3/8 inch lines on both ends and is rated for a maximum working pressure of 870 psi and a burst pressure of 2,610 psi. Its removable design means connections can be released and repositioned in the field, reducing material waste and labor time on tight-access installations.

This elbow is suited for residential and commercial HVACR applications where refrigerant line routing requires a 90 degree directional change. It is particularly useful in retrofit and replacement work where open-flame brazing is restricted or impractical. The push-fit connection type speeds up line set assembly and is well-suited for confined spaces where torch clearance is limited. HVAC technicians installing split systems, mini-splits, or other refrigerant circuits will find this fitting appropriate for copper-to-copper line connections.

Key Features

• No brazing torch, press tool, or jaw required — push-to-connect installation
• Removable fitting design allows disconnection and repositioning after initial connection
• Brass construction for durability in refrigerant service environments
• Maximum working pressure of 870 psi with burst pressure rated at 2,610 psi
• Rated for maximum working temperature of 250 degrees F (121 degrees C)
• Push-fit on both ends with 3/8 x 3/8 inch connection sizing

Compatibility

Designed for use in HVACR refrigerant line systems utilizing push-fit quick connect fittings with 3/8 inch copper line connections on both ports.

Installation Notes

Installation should be performed by a licensed HVAC technician familiar with refrigerant line handling and applicable mechanical codes. Before servicing any refrigerant circuit, recover refrigerant per EPA Section 608 requirements and depressurize the system. Verify that tubing ends are cut cleanly and deburred before inserting into the fitting to ensure a proper seal. Do not exceed the rated maximum working pressure of 870 psi during system operation or pressure testing.

Technical Specifications

• Material: Brass
• Fitting Connection Size: 3/8 x 3/8 inches
• Fitting Connection Type: Push-Fit x Push-Fit
• Basic Fitting Type: Elbow, Push-Fit Quick Connect
• Specific Fitting Type: 90 Degree Elbow
• Maximum Working Pressure: 870 psi
• Burst Pressure: 2,610 psi
• Maximum Working Temperature: 250 degrees F (121 degrees C)
• Manufacturer: Parker Hannifin Corporation

Standard Information

• Brand: SPORLAN
• Manufacturer Part Number: 777144
