Sporlan 771104 refrigerant y-joint fitting 5/8 inch x 5/8 inch x 5/8 inch pzk-y10-na

Product Description

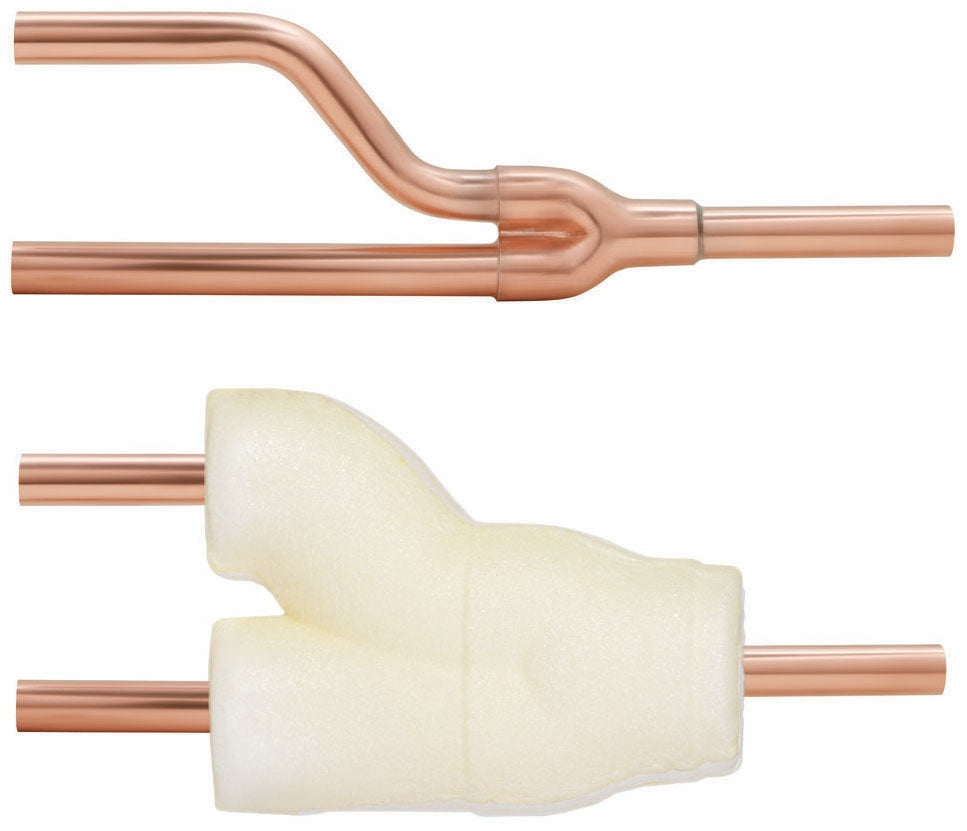

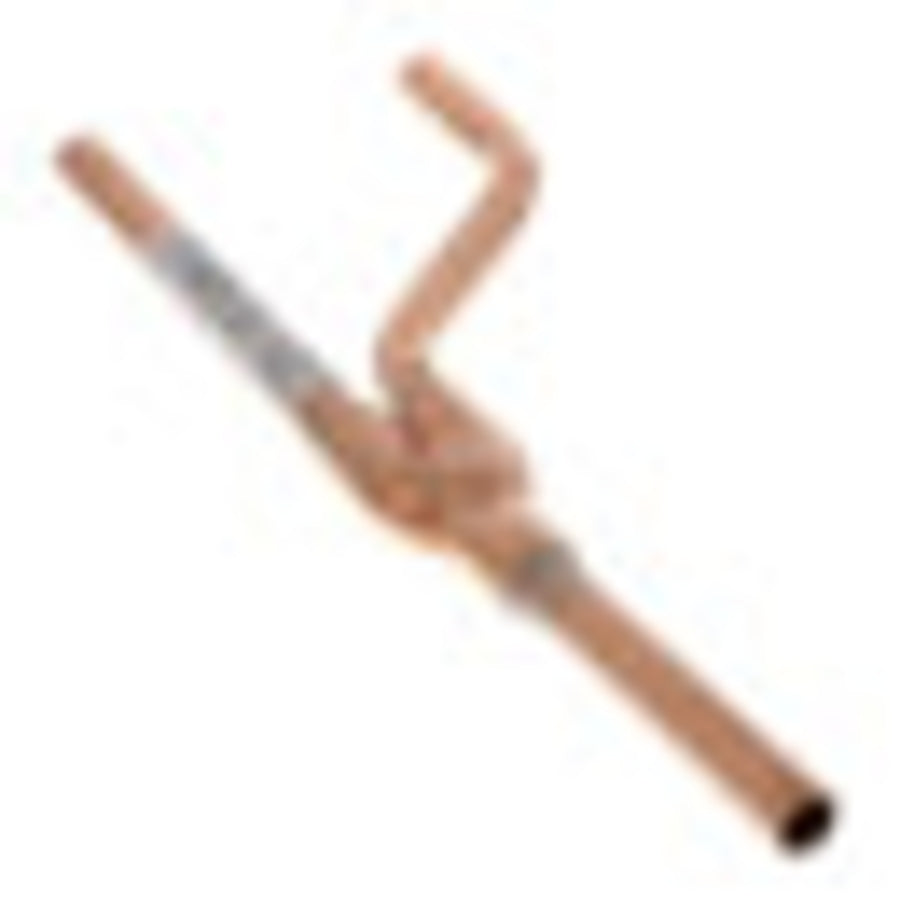

The SPORLAN 771104 is a flame-free copper refrigerant Y-joint fitting designed for high-pressure HVAC/R systems, glycol, and non-potable water applications. This 5/8 inch x 5/8 inch x 5/8 inch fitting features ZoomLock end connections and is rated for 700 PSI pressure and 250 Deg F temperature. It is constructed from copper meeting ASTM B75/B743 specifications and includes foam insulation.

• Flame-free installation eliminates the need for brazing.
• Designed for high-pressure HVAC/R, glycol, and non-potable water systems.
• Features ZoomLock end connections for secure, repeatable joints.

Product Highlights

Flame-free copper Y-joint for HVAC/R systems, includes foam insulation.

Product Information

Standard Information

• Brand: SPORLAN
• Manufacturer Part Number: 771104
• Country of Origin: USA

Technical Specifications

• Applicable Standard: ASHRAE-15, ANSI 15/31.5, ASME B31.5, ICC-ES, PMG-1296, IMC, IRC, UMC, UL
• Application: High Pressure HVAC/R System, Glycol, Non-Potable Water
• End Connection: ZoomLock x ZoomLock x ZoomLock
• Material: Copper
• Material Specification: ASTM B75/B743
• Nominal Size: 5/8 Inch x 5/8 Inch x 5/8 Inch
• Pressure Rating: 700 PSI
• Series: PZK
• Temperature Rating: 250 Deg F
• Installation Type: Flame-Free
• Fitting Type: Y-Joint
• O-Ring Material: HNBR
• Vacuum Pressure Capability: 20 Micron
• Includes: Foam Insulation
