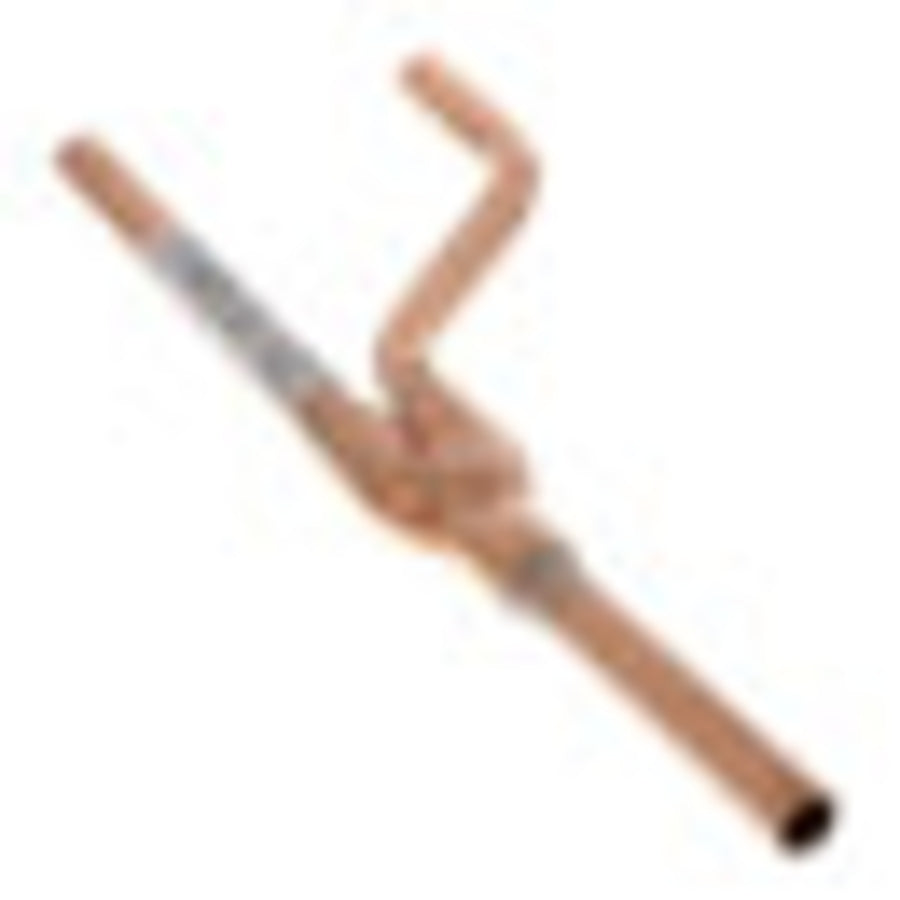

Sporlan 771102 Y-Joint 3/8 Inch MZK-Y6-NA

Product Description

The SPORLAN 771102 is a flame-free Y-joint fitting, model MZK-Y6-NA, designed for high-pressure HVAC/R systems, glycol, and non-potable water applications. This copper (ASTM B75/B743) fitting features 3/8 inch ZoomLock end connections and HNBR O-rings. It boasts a 700 PSI pressure rating, 250 Deg F temperature rating, and 20 Micron vacuum capability. Foam insulation is included, ensuring compatibility with various ZoomLock components.

• Flame-free connection method for safety
• Eliminates the need for nitrogen purging
• Reduces equipment requirements and installation time

Product Highlights

Designed for high-pressure HVAC/R systems, this Made in USA fitting offers a repeatable, flame-free connection without the need for burn permits.

Product Information

Standard Information

• Brand: SPORLAN
• Manufacturer Part Number: 771102
• Country of Origin: USA

Technical Specifications

• Fitting Type: Y-Joint
• Connection Method: Flame-Free
• Nominal Size: 3/8 Inch x 3/8 Inch x 3/8 Inch
• End Connection: ZoomLock x ZoomLock x ZoomLock
• Material: Copper
• Material Specification: ASTM B75/B743
• Pressure Rating: 700 PSI
• Temperature Rating: 250 Deg F
• Application: High Pressure HVAC/R System, Glycol, Non-Potable Water
• Standards: ASHRAE-15, ANSI 15/31.5, ASME B31.5, ICC-ES, PMG-1296, IMC, IRC, UMC, UL
• O-Ring Material: HNBR
• Vacuum Pressure Capability: 20 Micron

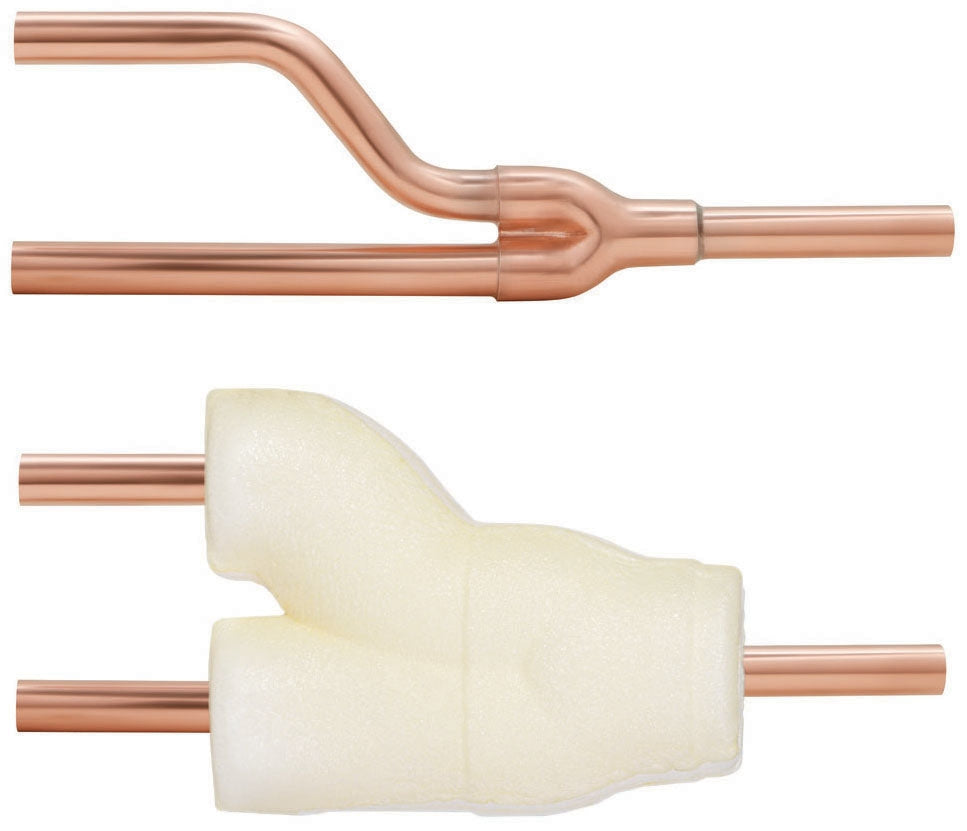

• Included Features: Foam Insulation
• Compatibility: ODM x ODM ZoomLock Ball Valve/Filter Drier/Moisture and Liquid Indicator/Solenoid Valve
• Product Line: ZoomLock MAX
• Series: PZK
• Model Number: MZK-Y6-NA
• Alternative MPN: PZK-Y6-NA
• Alternative Part Number: ZY38
