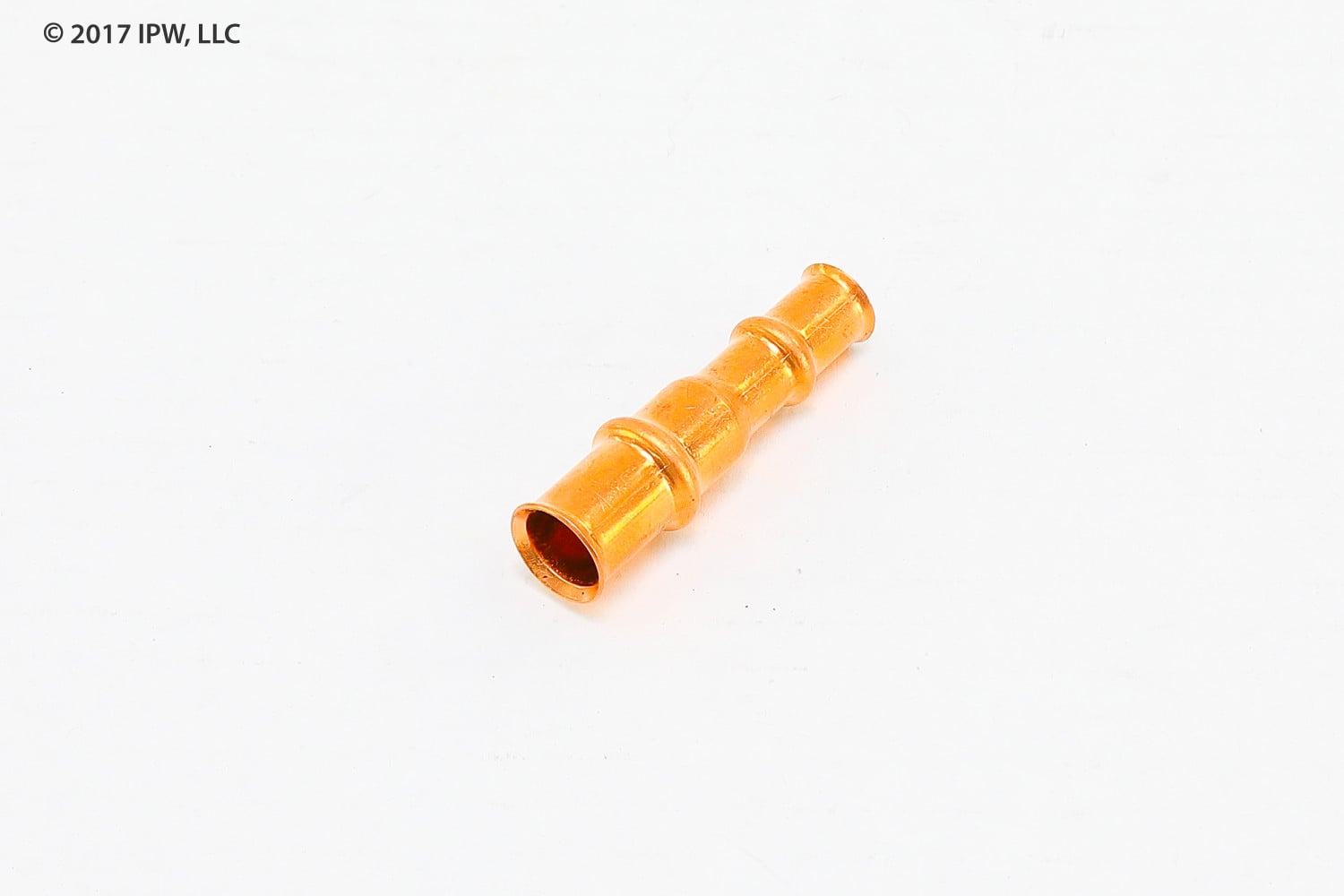

Sporlan 770801 reducer coupling 1/2 inch to 3/8 inch PZK-R86-HNBR

Product Description

The Sporlan 770801 is a flame-free refrigerant reducer fitting designed for high-pressure HVAC/R systems, glycol, and non-potable water applications. This copper fitting, with a 1/2 inch to 3/8 inch ZoomLock x ZoomLock connection, offers a pressure rating of 700 PSI and a temperature rating of 250 degrees F. It features an HNBR O-ring and a vacuum pressure capability of 20 micron, ensuring secure connections without brazing.

• Flame-free connection system eliminates the need for brazing, reducing labor and installation time.
• Constructed from copper with an HNBR O-ring, suitable for high-pressure HVAC/R systems.
• Designed for use with ZoomLock ball valves, filter driers, and other system components.

Product Highlights

Flame-free copper reducer fitting for HVAC/R systems, offering secure 700 PSI connections.

Product Information

Standard Information

• Brand: SPORLAN
• Manufacturer Part Number: 770801

Technical Specifications

• Fitting Type: Flame-Free Reducer
• Model Number: PZK-R86-HNBR
• Material: Copper
• Material Specification: ASTM B75/B743
• Connection Type: ZoomLock x ZoomLock
• Connection Size A: 1/2 Inch
• Connection Size B: 3/8 Inch
• Operating Pressure: 700 PSI
• Temperature Rating: 250 Deg F
• Minimum Burst Pressure: 2100 PSI
• O-Ring Material: HNBR
• Vacuum Pressure Capability: 20 Micron
• Application: High Pressure HVAC/R System, Glycol, Non-Potable Water
• Applicable Standard: UL (Canada and US), UL 207/109, ASHRAE-15, ANSI 15/31.5, ASME B31.5, ICC-ES, PMG-1296, IMC, IRC, UMC
