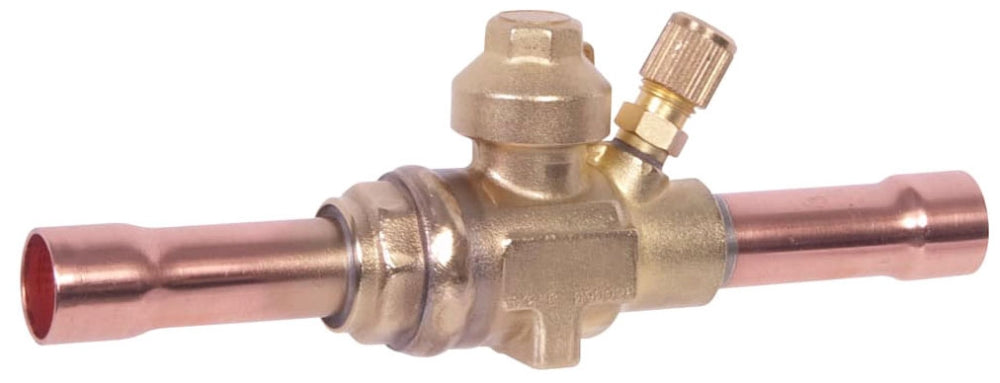

Sporlan 502059 1-1/8 x 1-1/8 ODF x ODF 700 PSI Ball Valve

Product Description

The Sporlan 502059 is a premium ball valve designed for cooling and heating systems. This 1-1/8 inch x 1-1/8 inch valve features ODF connections and can handle pressures up to 700 PSI. The one-piece design provides durability and reliability for your HVAC applications.

• Full port design for maximum flow
• Temperature range of -40 to 300 degrees Fahrenheit
• Includes stainless steel stop plate and adjustable wrench

Product Highlights

Ideal for air conditioning, refrigeration systems, and heat pumps. This valve ensures efficient fluid flow and is suitable for supermarket case and rack systems as well as food and beverage services.

Product Information

Standard Information

• Manufacturer: Sporlan
• Part Number: 502059

Technical Specifications

• Type: Ball Valve
• Actuation Type: 1/4 Turn
• Nominal Size: 1-1/8 inch x 1-1/8 inch
• End Connection: ODF x ODF
• End to End Distance: 8.5 inches
• Ball Material: Polished Brass
• Body Material: Forged Brass
• Seal Material: Non-Stick
• Port Type: Full
• Temperature Rating: -40 to 300 degrees Fahrenheit
• Pressure Rating: 700 PSI
• Inclusions/Features: Stainless Steel Stop Plate, Access Fitting, Adjustable Wrench
• Applications: Air Conditioning, Refrigeration Systems, Heat Pumps, Supermarket Case and Rack Systems, Food & Beverage Units
• Applicable Standards: UL, CE
• RoHS Compliant: Yes
• Overall Height: 2.98 inches
• Socket Depth: 0.91 inches
