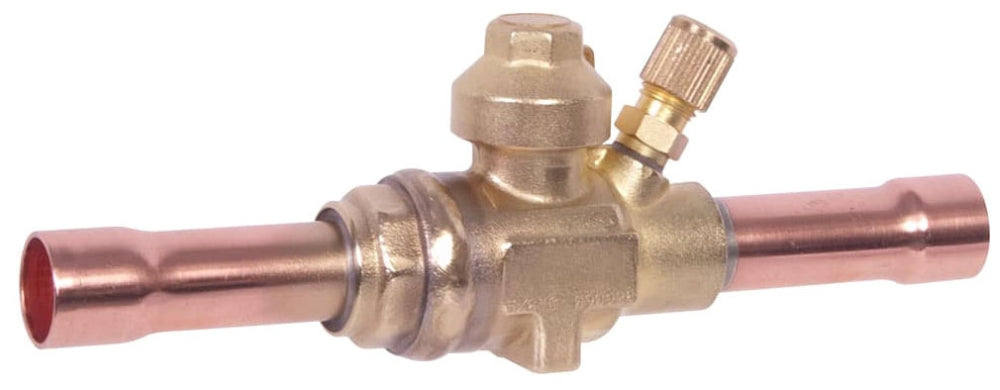

Sporlan 502057 Ball Valve ODF x ODF 700 PSI 3/4 Inch Full Port

Product Description

The Sporlan 502057 Ball Valve is designed for optimal performance in HVAC systems. With a 3/4 inch ODF x ODF connection and a pressure rating of 700 PSI, this ball valve ensures efficient and reliable operation in various applications.

• 3/4 inch ODF x ODF connection
• Pressure rating: 700 PSI
• Full port design

Product Highlights

This ball valve is suitable for air conditioning, refrigeration systems, heat pumps, supermarket cases, food and beverage units, and transportation. Key features include a polished brass ball, forged brass body, and a full port for maximum flow.

Product Information

Standard Information

• Brand: Sporlan
• MPN: 502057
• UPC: 68747240364
• UNSPSC: 40141607

Technical Specifications

• Type: 1-Piece
• Actuation Type: 1/4 Turn
• Nominal Size: 3/4 Inch x 3/4 Inch
• End Connection: ODF x ODF
• End to End Distance: 7.25 Inch
• Ball Material: Polished Brass
• Body Material: Forged Brass
• Seal Material: Non-Stick
• Port Type: Full
• Temperature Rating: -40 to 300 Deg F
• Pressure Rating: 700 PSI
• Inclusions/Features: Stainless Steel Stop Plate, Access Fitting, Adjustable Wrench
• Application: Air Conditioning and Refrigeration System, Heat Pump, Supermarket Case and Rack System, Food and Beverage Unit, Transportation
• Applicable Standard: UL, CE
• Mounting Hole Size: #8-36 UNF
• Overall Height: 2.63 Inch
• Socket Depth: 0.63 Inch
