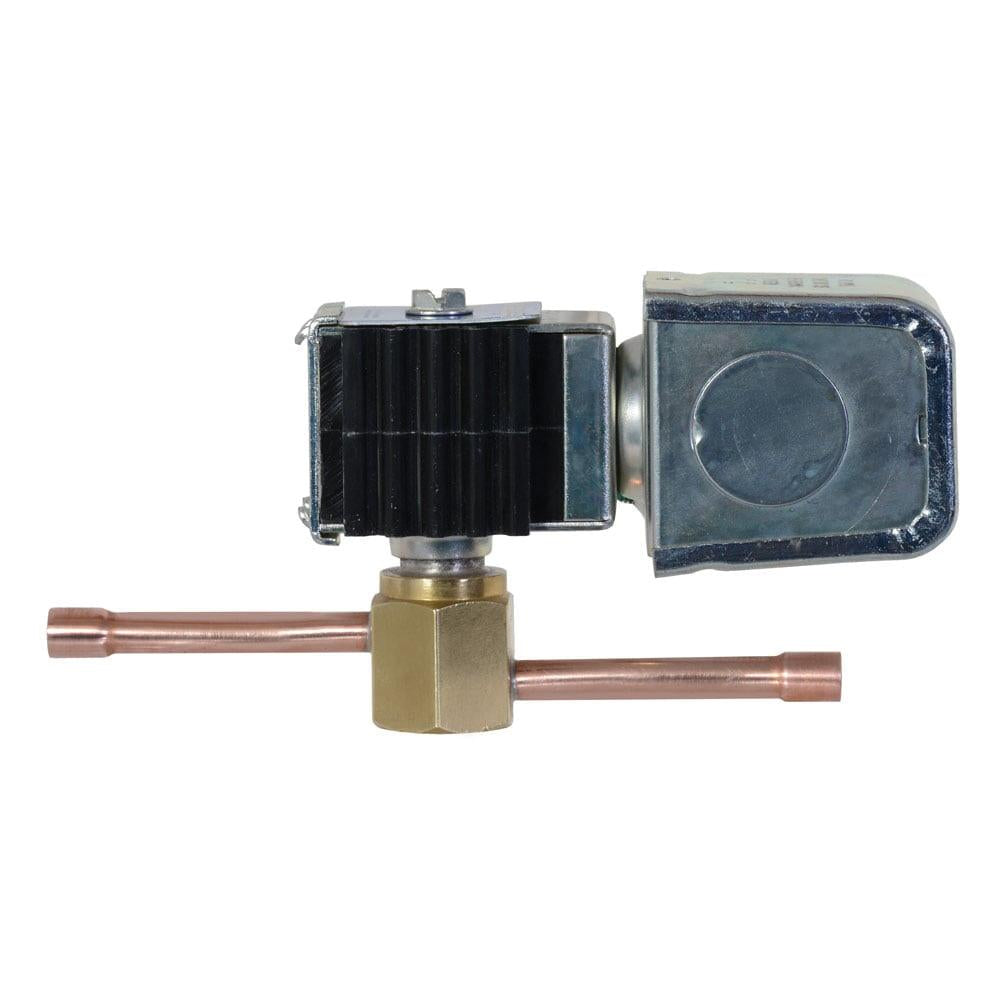

Sporlan 4611-00 ZoomLock Solenoid Valve

Product Description

The Sporlan 4611-00 ZoomLock Solenoid Valve is designed for use in air conditioning and refrigeration systems. This normally closed valve opens when the coil is energized and closes when it is de-energized. Constructed with brass and extended copper connections, it ensures durability and reliability in high-pressure environments.

• Brass forged or bar stock construction
• Does not require disassembly for installation
• Compatible with multiple refrigerants including R-22 and R-410A

Product Highlights

This solenoid valve features a 1/4 inch port and maximum pressure rating of 1015 psi, making it suitable for a range of system capacities and refrigerant types.

Product Information

Standard Information

• Body Material: Brass
• End Type: ODM Solder

Technical Specifications

• Port Size: 1/4 inch
• Pressure Rating: 1015 psi
• Refrigerant Types: R-22, R-134A, R-401A, R-402A, R-404A, R-407C, R-407F, R-410A, R-507
• Series: E Series
• Temperature Rating: 120 degrees F
• Additional Information: Manual Lift Stem, High Pressure Rated
• Item Number: 4611-00
• Brand: Sporlan Controls
