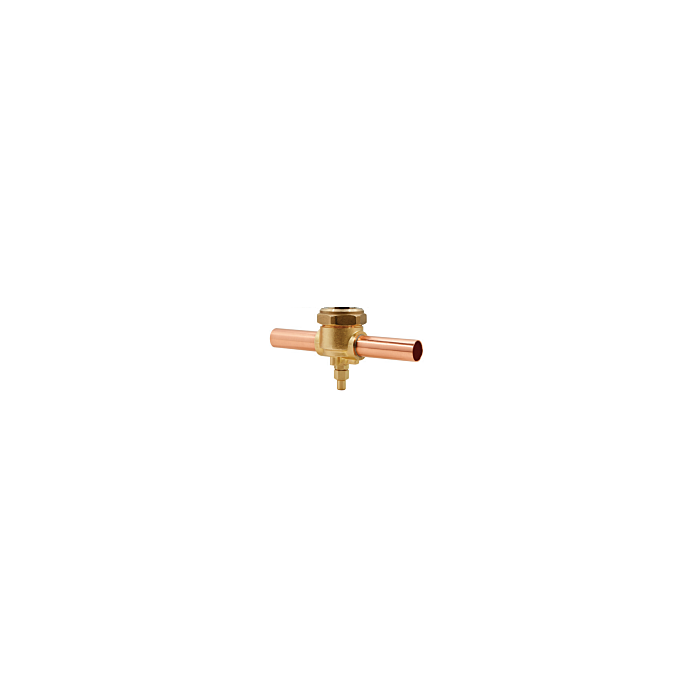

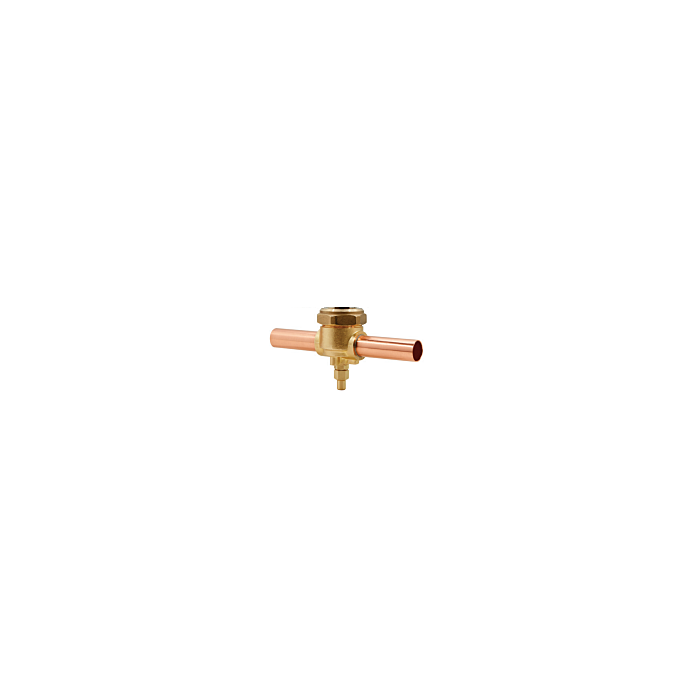

Sporlan 4606-00 Solenoid Valve 3/8 Inch Zoomlock Normally Closed

Product Description

The SPORLAN 4606-00 is a solenoid valve body sold without a coil, designed for refrigerant flow control in commercial and residential HVAC and refrigeration systems. It features a 3/8-inch ZoomLock press-fit connection, a 0.15-inch port, and is rated for high-pressure refrigerant service. The normally closed design keeps the valve shut when de-energized, providing a safe default state during power loss. Licensed HVAC-R technicians install this valve as part of liquid-line or suction-line assemblies where precise refrigerant flow control is required. A separate compatible coil must be sourced and matched to the valve body before installation.

This valve body is suited for refrigeration and air conditioning systems where ZoomLock press-fit connections are specified. The ZoomLock fitting eliminates open-flame brazing at the valve body connection, making it practical for installations in occupied spaces or where torch use is restricted. The 0.15-inch port size is appropriate for smaller-capacity systems and tight refrigerant-circuit applications. This part is typically installed in liquid lines to control refrigerant flow to an evaporator or expansion device.

Key Features

• 3/8-inch ZoomLock press-fit connection eliminates brazing at the valve body
• Normally closed operation ensures valve defaults to shut position when de-energized
• 0.15-inch port size suited for smaller-capacity refrigerant circuits
• High-pressure rated construction for use with common HFC and HFO refrigerants
• Sold as valve body only — coil not included, must be ordered separately

Compatibility

Designed as an OEM-style replacement or new-installation solenoid valve body for refrigeration and HVAC systems using 3/8-inch ZoomLock press-fit piping connections. No specific model compatibility data was provided by the manufacturer for this listing.

Installation Notes

Installation should be performed by a licensed HVAC-R technician in accordance with applicable mechanical codes. Recover system refrigerant and isolate the circuit before removing or installing any valve body. ZoomLock connections require the proper deburring and insertion depth procedure and compatible ZoomLock press tooling — do not use open flame at the fitting. Ensure the replacement coil voltage and frequency match the control circuit before energizing the valve.

Technical Specifications

• Connection Type: 3/8 inch ZoomLock Press-Fit
• Port Size: 0.15 inches
• Valve Operation: Normally Closed
• Pressure Rating: High Pressure Rated
• Coil Included: No
• UPC: 687472093176

Standard Information

• Brand: SPORLAN
• Manufacturer Part Number: 4606-00
