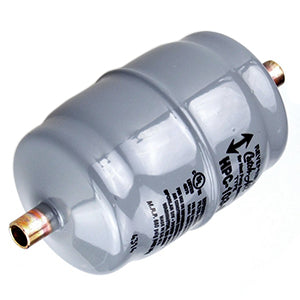

Sporlan 404309 Heat Pump Liquid Line Filter-Drier 1/2 in ODF (HPC-304-S)

Product Description

The Sporlan 404309 is a heat pump liquid line filter-drier (HPC-304-S) designed for normal operation in refrigeration and air conditioning systems. It provides a 53 in2 filter area and 30 cu. in. desiccant volume with a nominal capacity range of 8-20 tons. The unit uses a 1/2-inch ODF solder connection, measures 10.4 inches long with a 3-inch diameter, and supports reversible flow operation and common refrigerants.

• 53 in2 filter area and 30 cu. in. desiccant volume for moisture and contaminant removal
• 1/2-inch ODF solder connection suitable for liquid line installation; nominal capacity 8-20 tons
• Compact dimensions: 10.4 in length, 3 in diameter; reversible flow design; compatible with R-22, R-407C, R-410A

Product Highlights

Heat pump liquid line protection with 53 in2 filter area, 30 cu. in. desiccant, 1/2 in ODF connection, reversible flow capability

Product Information

Standard Information

• Brand: SPORLAN
• Manufacturer Part Number: 404309
• Country of Origin: USA

Technical Specifications

• Brand: Sporlan
• Manufacturer Part Number: 404309
• Model Number: HPC-304-S
• Series: HPC Series
• Product Type: Heat pump liquid line filter-drier
• Filter Area: 53 in2
• Desiccant Volume: 30 cu. in.
• Nominal Capacity Range: 8-20 tons
• Connection Size: 1/2 in
• Connection Style: ODF solder (outside diameter female)
• Length: 10.4 in (263.7 mm)
• Diameter: 3 in (76.2 mm)
• Reversible Flow: Yes
• Compatible Refrigerants: R-22, R-407C, R-410A
• Application: Heat pump liquid line service
• Weight: 3.94 lb
