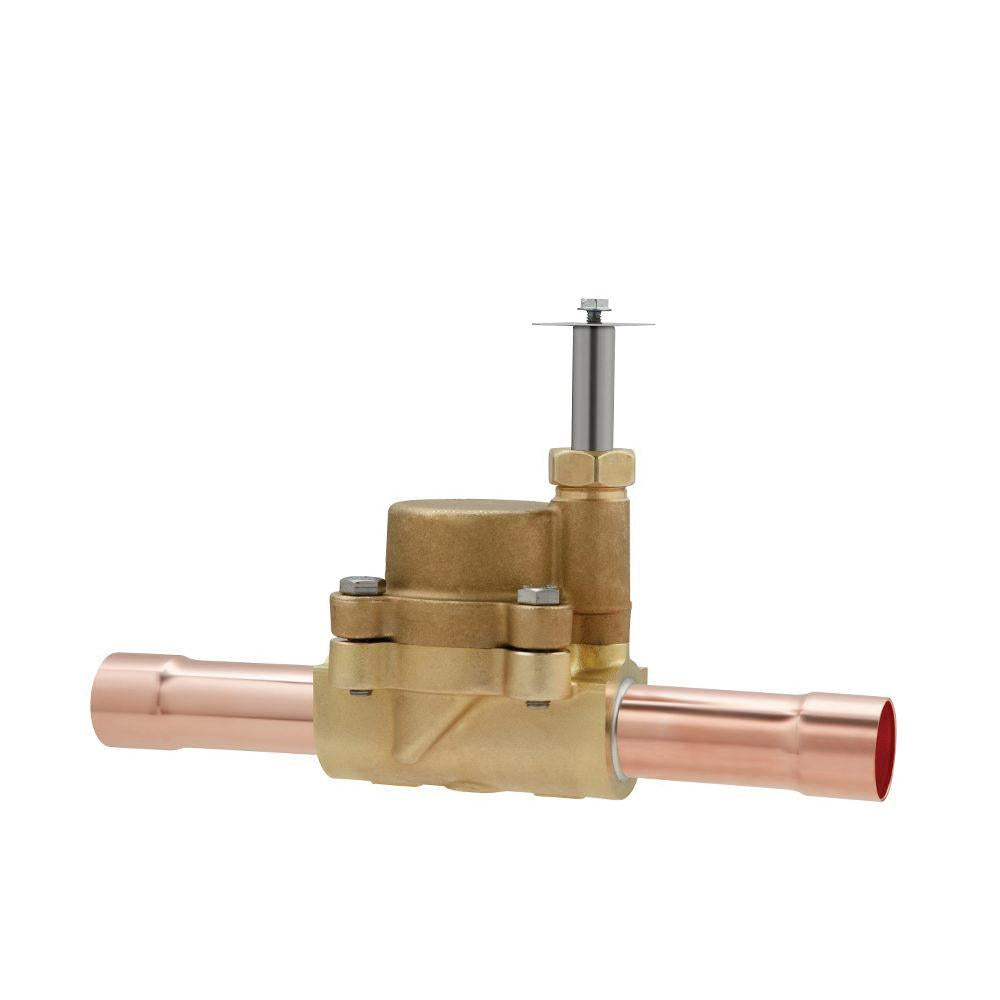

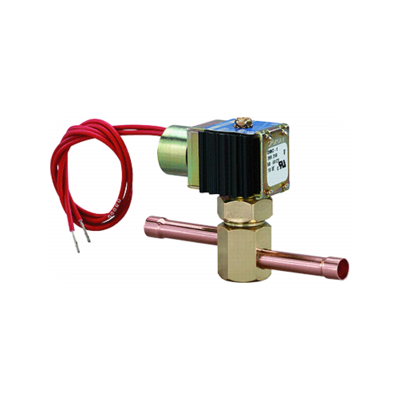

Sporlan 3291-00 Solenoid Valve 10 W AC/15 W DC (1/2 in) E6S140

Product Description

The Sporlan 3291-00 is a 1/2 in nominal, normally-closed pilot-operated solenoid valve for refrigeration and air conditioning systems. It features a 3/16 in orifice, brass body, synthetic seat, synthetic-coated metal gaskets and a stainless steel stem. The valve uses an MKC-1 coil (Class F insulation), has ODF extended solder connections, and is rated for 500 psi working pressure with specified AC and DC differential limits.

• 1/2 in nominal, 2-way normally closed valve with 3/16 in orifice; pilot-operated design for refrigeration and AC service
• Brass body, synthetic seat, synthetic-coated metal gaskets, stainless steel stem; ODF extended copper solder connections
• Rated 500 psi working pressure; 300 psi AC differential and 175 psi DC differential; MKC-1 coil, Class F insulation; supplied less coil

Product Highlights

Compact E6 series, pilot-operated 2-way valve with extended solder connections and 3/16 in orifice.

Product Information

Standard Information

• Brand: SPORLAN
• Manufacturer Part Number: 3291-00

Technical Specifications

• Brand: Sporlan
• Manufacturer Part Number: 3291-00
• Model/Series: E6 series / E6S140
• Configuration: Normally closed (NC), 2-way
• Nominal Size: 1/2 in
• Orifice Size: 3/16 in
• Body Material: Brass
• Seat Material: Synthetic
• Seal Material: Synthetic-coated metal
• Stem Material: Stainless steel
• Connection Type: ODF extended solder (extended copper solder connections)
• Coil Type: MKC-1
• Coil Insulation Class: F
• Power Rating: 10 W AC, 15 W DC
• Working Pressure: 500 psi
• AC Differential Pressure Rating: 300 psi
• DC Differential Pressure Rating: 175 psi
• Applications: Refrigeration and air conditioning; suction line service
• Mounting: May be mounted horizontally, on side, or in vertical line
• Dimensions: 5 in L x 3.19 in H
• Weight: 0.62 lbs (approximately)
• Compatible Refrigerants: R-22, R-134a, R-401A, R-402A, R-404A, R-407C, R-502, R-507
• Approvals/Certifications: UL listed, CSA listed, CE approved
• Includes: Valve supplied less coil
• Nominal Capacity R-22: 4.9 tons
• Item No / Internal Part: E6S140
• UPC: 687472519713
