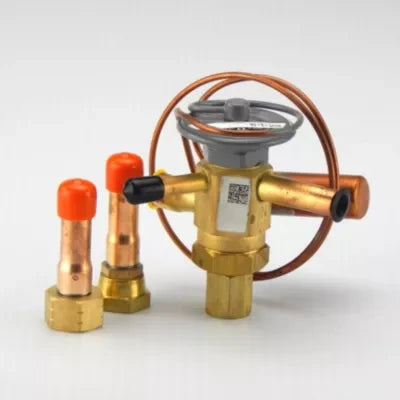

Sporlan 20083-000 Rcve2gakit Expansion Valve Kit 2 Ton (3/8 In x 1/2 In ODS)

Product Description

The Sporlan 20083-000 Rcve2gakit is an externally adjustable thermostatic expansion valve kit with balanced port construction and an external equalizer, rated for a nominal 2-ton capacity. The small brass valve includes internal check valves for reverse flow in heat pump applications and supports refrigerants such as R-22, R-407A, R-407C, and R-422D. The sweat kit includes one Chatleff and one Aeroquip connector and offers multiple outlet connection options.

• Externally adjustable thermostatic expansion valve with balanced port construction and external equalizer
• Internal check valves for reverse flow; usable for heat pump and cooling-only air conditioning applications
• 3/8 in inlet and 1/2 in outlet ODS connections with additional outlet options (1/2 in SAE, 1/2 in ODF, 5/8 in ODF)

Product Highlights

Externally adjustable brass TXV kit, nominal 2 ton capacity, internal check valves for heat pumps, multiple outlet connection options, compatible with R-22 and select HFC refrigerants.

Product Information

Standard Information

• Brand: SPORLAN
• Manufacturer Part Number: 20083-000

Technical Specifications

• Brand: Sporlan
• Manufacturer Part Number: 20083-000
• Vendor Part Number (URI): RCVE2GAKIT
• Product Type: Expansion valve kit
• Valve Type: Thermostatic expansion valve (Type RC)
• Construction Material: Brass
• Adjustable: Externally adjustable
• Port Construction: Balanced port
• Equalizer: External
• Internal Check Valves: Yes
• Nominal Capacity: 2 ton
• Use With: Heat pump and air conditioning (cooling only) applications
• Compatible Refrigerants: R-22; R-407A; R-407C; R-422D
• Inlet Connection Size: 3/8 in
• Inlet Connection Type: ODS
• Outlet Connection Size: 1/2 in
• Outlet Connection Type: ODS
• Outlet Connection Options: 1/2 in SAE; 1/2 in ODF; 5/8 in ODF
• Includes: One Chatleff sweat connector; one Aeroquip sweat connector
• Dimensions (L x W x H): 6.00 in x 4.00 in x 4.00 in
• Replaces: Multiple valve types (I, BI, BBI, and some RI non-RPB versions)
