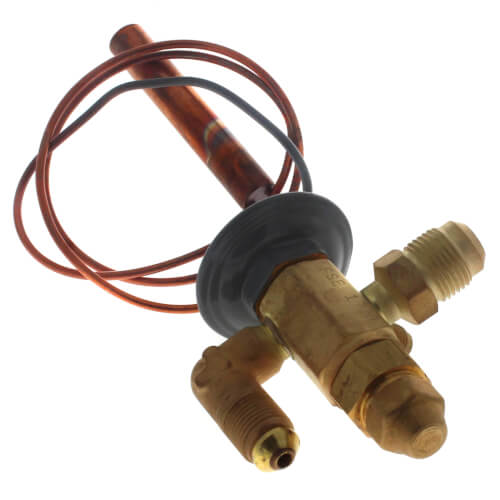

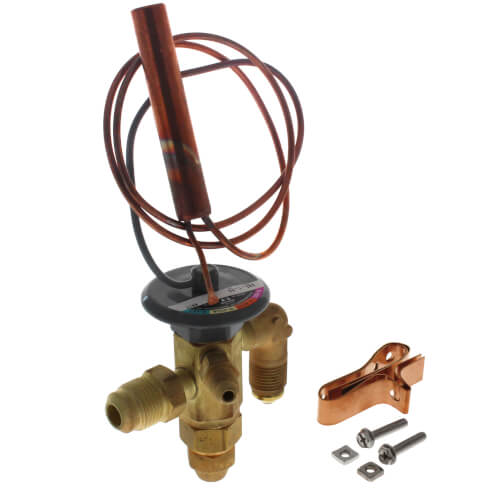

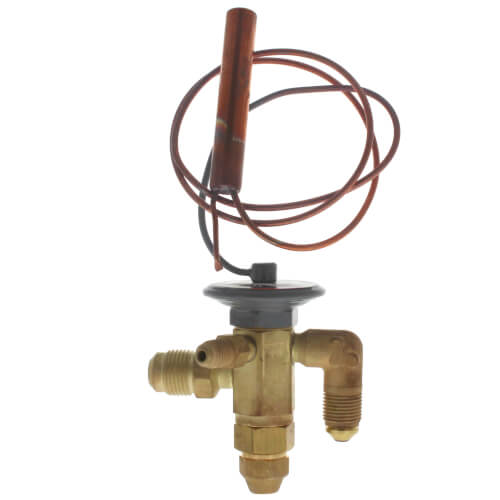

Sporlan 175316 FSE-1-ZP Thermal Expansion Valve 3/8 x 1/2 SAE 1 Ton

Product Description

The Sporlan 175316 FSE-1-ZP is a durable thermal expansion valve designed for efficient performance in HVAC and refrigeration systems. This valve is ideal for low-temperature refrigeration applications and supports R-404A refrigerant types.

• 1 Ton capacity for robust cooling
• 3/8 inch inlet and 1/2 inch outlet SAE connections
• Externally equalized for precision

Product Highlights

Efficient 1 ton thermal expansion valve with 30-inch capillary and externally equalized design, suitable for various HVAC and refrigeration systems.

Product Information

Standard Information

• Brand: Sporlan
• MPN: 175316
• Item: FSE-1-ZP Thermal Expansion Valve
• Use: HVAC, refrigeration, heat pumps
• Capacity: 1 Ton

Technical Specifications

• Refrigerant Type: R-404A, R-502, R-408A
• Application: Low Temp Refrigeration
• Thermostatic Charge: ZP
• Nominal Capacity (Ton): 1
• Inlet Connection: 3/8 inch SAE
• Outlet Connection: 1/2 inch SAE
• Equalizer Method: Externally Equalized
• Capillary Length: 30 inches
• Strainer Type: 50 Mesh Removable
• Design Working Pressure: 450 psi
• Shipping Weight: 1.37 lbs
• Shipping Length: 5.15 inches
• Shipping Width: 4 inches
• Shipping Height: 3.3 inches
