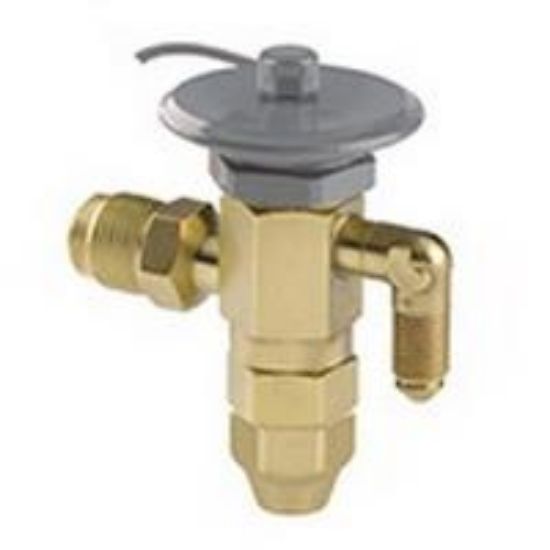

Sporlan 169419 Expansion Valve External 2.0 Ton (5 ft 3/8 x 1/2 ODF)

Product Description

Sporlan 169419 is an external thermostatic expansion valve (TXV) for R404A refrigeration systems, rated for 2.0 ton low-temperature service and supplied with a 5 ft external capillary. The valve provides 3/8 x 1/2 in. ODF inlet/outlet connections and balanced port construction. It includes a replaceable thermostatic element, a 100-mesh removable strainer, brass body with silver-soldered copper fittings, and a 450 psi maximum pressure rating.

• Designed for R404A refrigerant and rated for 2.0 ton low-temperature service with a 5 ft external capillary/external equalizer
• 3/8 x 1/2 in. ODF inlet/outlet connections, balanced port construction, brass body with silver-soldered copper fittings
• Replaceable thermostatic element, 100-mesh removable strainer, brass seat and pin carrier with stainless steel pin, 450 psi maximum pressure

Product Highlights

External TXV for R404A refrigeration; 2.0 ton capacity; 5 ft external capillary; 3/8 x 1/2 in. ODF connections; 450 psi max

Product Information

Standard Information

• Brand: SPORLAN
• Manufacturer Part Number: 169419

Technical Specifications

• Brand: Sporlan
• MPN: 169419
• Type: Thermostatic expansion valve (TXV) - external
• Refrigerant: R404A
• Capacity: 2.0 Ton
• Application: Low temperature refrigeration
• Connection: 3/8 x 1/2 in. ODF
• Inlet/Outlet: 3/8 in. x 1/2 in.
• Capillary Length: 5 ft (60 in)
• External Equalizer: Yes (external equalizer via 5 ft capillary)
• Construction Material: Brass body; copper fittings silver‑soldered to body
• Thermostatic Element: Replaceable thermostatic element (grey epoxy coating)
• Strainer: 100 mesh removable
• Seat and Pin: Brass seat and pin carrier; stainless steel pin and push rod
• Port Construction: Balanced port
• Joint Type: Knife-edge to metal joint
• Maximum Pressure: 450 psi
