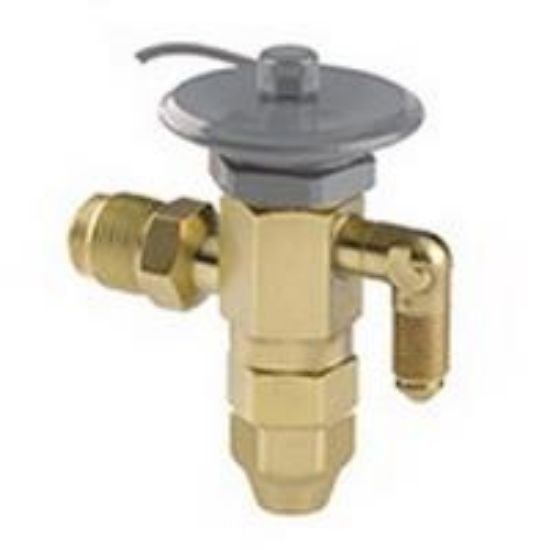

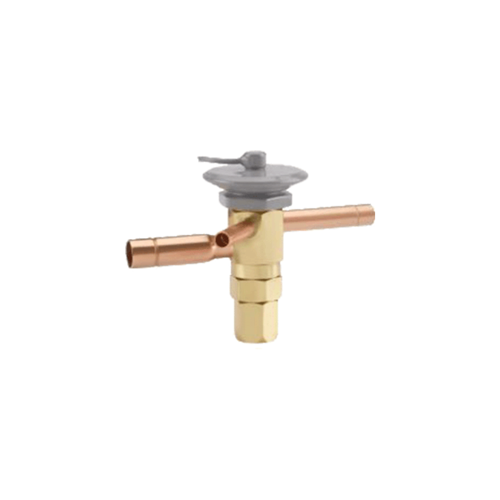

Sporlan 169418 expansion valve, external 2.0 ton 5 feet tube 3/8 inches x 1/2 inches ODF external SRSE-2-ZP

Product Description

The Sporlan 169418 is an external thermostatic expansion valve designed for R-404A refrigerant systems. This 2-ton capacity valve features 3/8 inch x 1/2 inch ODF extended connections and a 5-foot capillary tube, making it suitable for low-temperature refrigeration applications. It ensures precise control of refrigerant flow, optimizing system performance and efficiency in commercial and industrial settings. The valve includes an external equalizer for stable operation.

• Replaceable thermostatic element with grey epoxy coating
• Balanced port construction
• 100 mesh removable strainer for easy cleaning or replacement

Product Highlights

Designed for R-404A low-temperature refrigeration, this 2-ton expansion valve features a 5-foot capillary tube and external equalization for precise flow control.

Product Information

Standard Information

• Brand: SPORLAN
• Manufacturer Part Number: 169418

Technical Specifications

• MPN: 169418
• Brand: Sporlan
• SKU: SPVSRSE2ZP
• Series: Spring Stocking
• Product Type: Thermal Expansion Valve
• Application: Low Temp Refrigeration
• Refrigerant: R-404A
• Refrigerant Code: ZP
• Capacity: 2 Tons
• Model: SRSE-2-ZP
• Connection Type: ODF Extended
• Inlet x Outlet Connections: 3/8" x 1/2" ODF Extended
• Capillary Length: 5 ft.
• Equalization Type: External
• Equalizer Port Size: 1/4"
• Material: Brass
• Maximum Pressure: 450 psi
• Height: 3-5/9 in.
